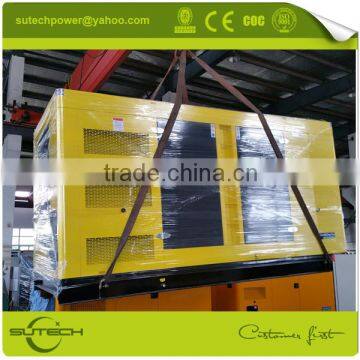

500kw/625Kva silent generator set, powered by Shangchai SC27G755D2 engine
Stamford alterantor
Deepsea control panel
High quality
Voltage |
HZ |
Phase |
P.F (COS) |
Output (KVA) |
400/230V |
50 |
3 |
0.8 |
625 |
Remark |
60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. |
|||
Manufacturer |
Shanghai Diesel Engine Co., Ltd. |
Brand |
Dongfeng |
Model |
SC27G755D2 |
Engine power stand by (kw) |
555 |
Revolution per minute (rpm) |
1500 |
Total displacement (L) |
26.6 |
Cylinders orientation |
12 V TYPE |
Bore*Stroke (mm*mm) |
135*155 |
Governor type |
electronic |
Aspration system |
turbo AAC |
Injection |
direct |
Cooling |
water cooled |
Electrical system (VDC) |
24 |
Engine coolant capacity(L) |
151 |
lub-oil capacity (L) |
65 |
Alternator brand |
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power |
100Kva |
Frequency/speed |
50HZ/1500rpm (60Hz/1800rpm) |
Exciter type |
Single bearing, Brushless, Self-excited |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation Grade |
H |
Protection Grade |
IP23 |
Control Panel
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
