Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels

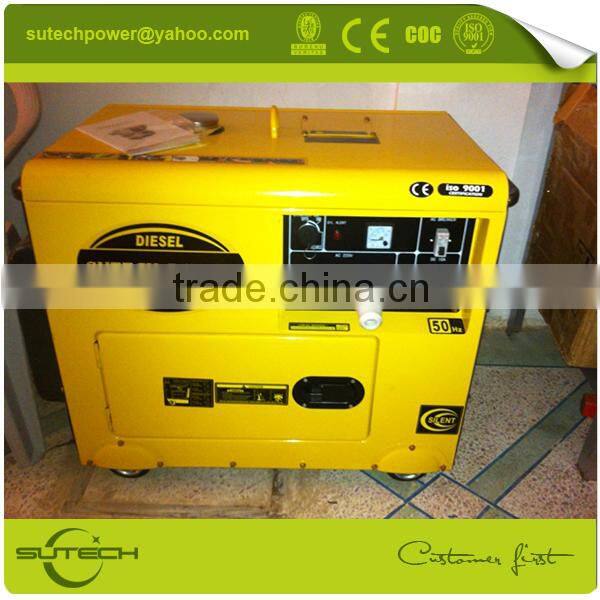

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels photo-1

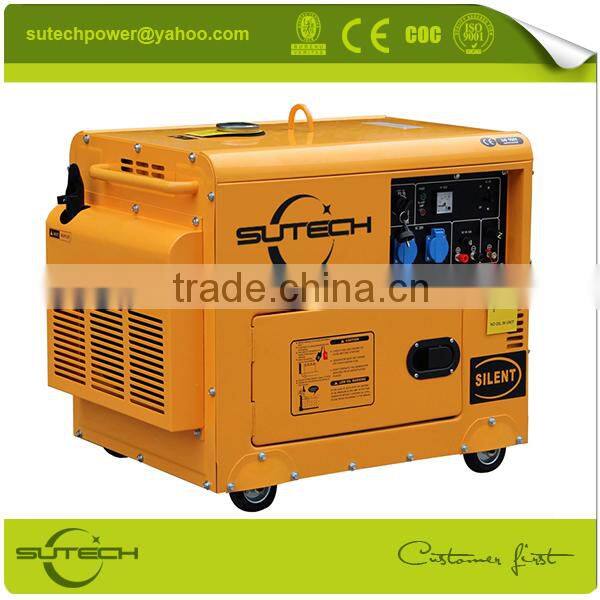

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels photo-2

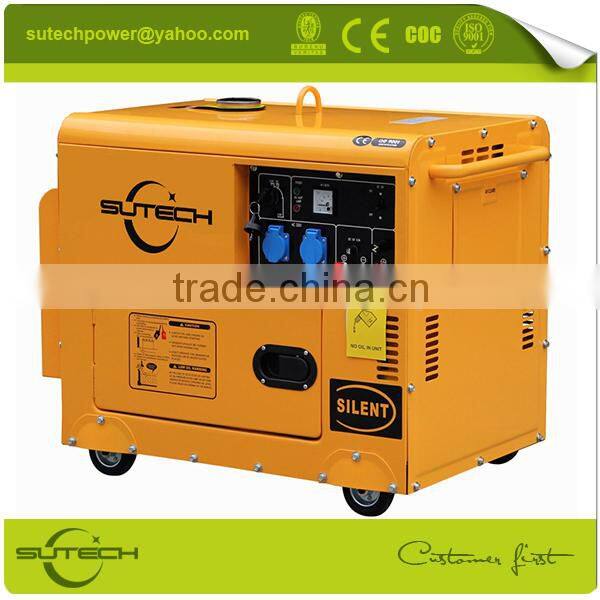

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels photo-3

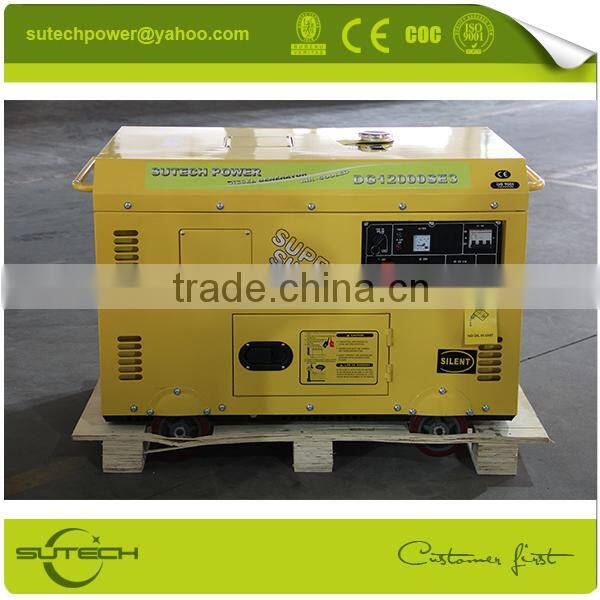

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels photo-4

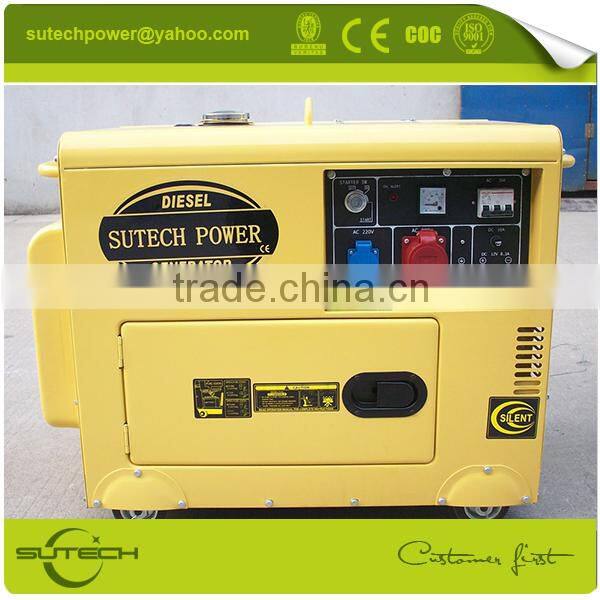

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels photo-5

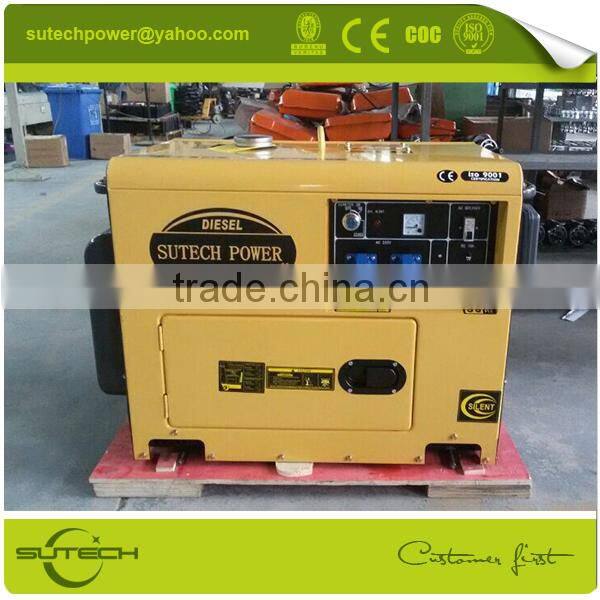

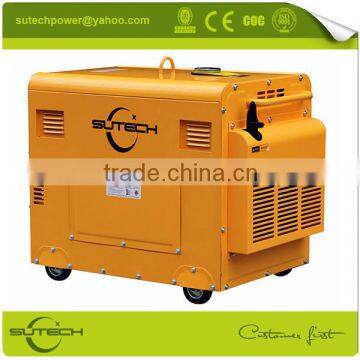

Low Noise Single Phase 5kw Portable 220V Generator With Soundproof and 4 Wheels photo-6
US$ 530 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
5kw 220V generator
Model Number:
5kw 220V generator
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name 5kw 220V generator
Model Number 5kw 220V generator
Output Type AC Three Phase
Speed 3000Rpm/Min
Frequency 50Hz
Rated Power 5KW
Rated Voltage 220V
Rated Current 9A

220V, 5Kw single phase Portable diesel generator

 Air cooled engine uses airflow directed at fins on the cylinders and heads is the cooling medium: heat is transferred directly to the air. The air comes either by natural convection or by forced air.

Water cooled engines circulate coolant around the heads + cylinders though a surrounding water jacket, and use a separate high-efficiency radiator for the final heat exchange to the air. (Marine engines are a bit different - they use the surrounding water instead, either directly or though a water-to-water heat exchanger.)

Air cooled engines are simpler, lighter and easier to maintain as they don't have the 'wet' cooling system elements. They excel in cold climates where coolant freezing can be a problem. However, air cooling is less efficient due to the low heat capacity of air so these engines suffer from hot spots which reduces power, increases emissions and shortens their life.

Air cooled engines are also considerably noisier - both from the engine directly and also from the air blower cooling fan if used.

Low noise single phase 5kw portable 220V generator with soundproof and 4 wheels

Frequency(Hz)

50

Max.(KVA)AC output(KW)

5.5

Rated AC output(KW)

5

DC output (V-A)

12V/8.3A

Rated voltage(v)

220

Power Factor

0.8

Phase

Single phase

Excitation System

Self-excitation

Dimension(LxWxH)mm

950x550x770

Net Weight(kg)

140

Type

Single-cylinder,vertical,4-stroke,
Air-cooled, direct-injection

Displacement(cc)

406

Fuel tank capacity(L)

16

Lube. oil capacity(L)

1.65

Staring System

Electric starter

Low oil pressure alarm system

With

5KW GENERATOR, SILENT AND MOBILE TYPE
Low noise single phase 5kw portable 220V generator with soundproof and 4 wheels
Low noise single phase 5kw portable 220V generator with soundproof and 4 wheelsLow noise single phase 5kw portable 220V generator with soundproof and 4 wheelsLow noise single phase 5kw portable 220V generator with soundproof and 4 wheelsLow noise single phase 5kw portable 220V generator with soundproof and 4 wheelsLow noise single phase 5kw portable 220V generator with soundproof and 4 wheelsLow noise single phase 5kw portable 220V generator with soundproof and 4 wheels

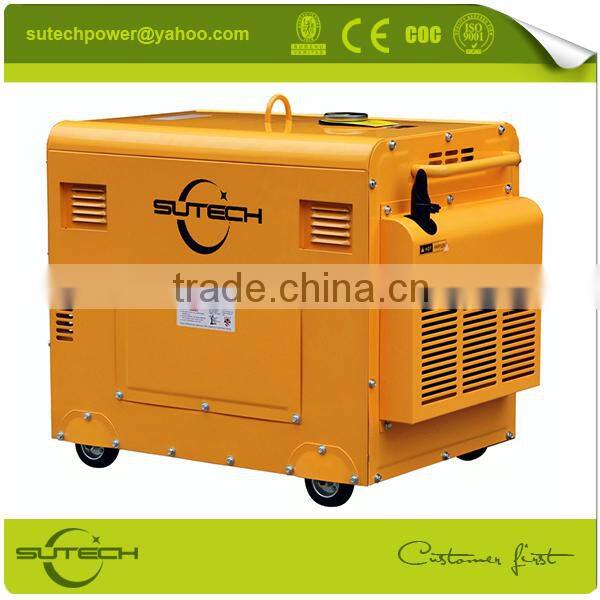

Pictures FYI

 Open type from 1kva to 12.5KvaLow noise single phase 5kw portable 220V generator with soundproof and 4 wheels

 Silent type from 5kva to 12.5kva

Low noise single phase 5kw portable 220V generator with soundproof and 4 wheels



Contact us

 Sutech Power Co., Ltd

No.18 Hailing Industry Park, Taizhou City, Jiangsu Province, China

Mobile: +86-15161006661

Tel: +86-523-86282985

Skype: stmeco



Business Type
Trading Company
Year Established
2014
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
