100% new 1000Kva silent diesel generator sets 60HZ, powered by Cummins KTA38-G4 engine

Name: 100% new 1000Kva silent diesel generator sets 60HZ, powered by Cummins KTA38-G4 engine
Brand: Diesel Generator
Price: USD $125,000 - 130,000 / Set

FOB Price

USD $125,000 - $130,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Diesel Generator	Model Number:	KTA38-G4
Output Type:	AC Three Phase	Speed:	1800rmp	Frequency:	60 Hz
Rated Power:	1000Kva	Rated Voltage:	460V	Rated Current:	1800A

Product Description

1000kva silent generator set, powered by Cummins KTA38-G4 engine
Stamford alterantor
Deepsea control panel
High quality

Main Technical Data

Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

24V DC start motor;

Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;

Equipped with industrial silencer and flexible exhaust hose;

Equipped with CHINT MCCB circuit breaker;

Designed to Comply with ISO8528/GB2820;

Powered by Cummins engine,Controlled by Deepsea panel

Voltage

Phase

P.F

(COS)

Output

(KVA)

400/230V

0.8

1000

Remark

60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements.

Engine

Cummins diesel generator power capacity

Engine Model	KTA38-G4
Number of Cylinders	12 cylinders, 60°Vee
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	159mm x159mm
Displacement	37.8L
Compression ratio	13.9:1
Prime Power/Speed	1007KW / 1800rpm
Standby Power/Speed	1112KW / 1800rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	135 L
Coolant capacity (engine only)	124L
Fuel Consumption at 100% Load	207g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	60Kva
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Control Panel

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

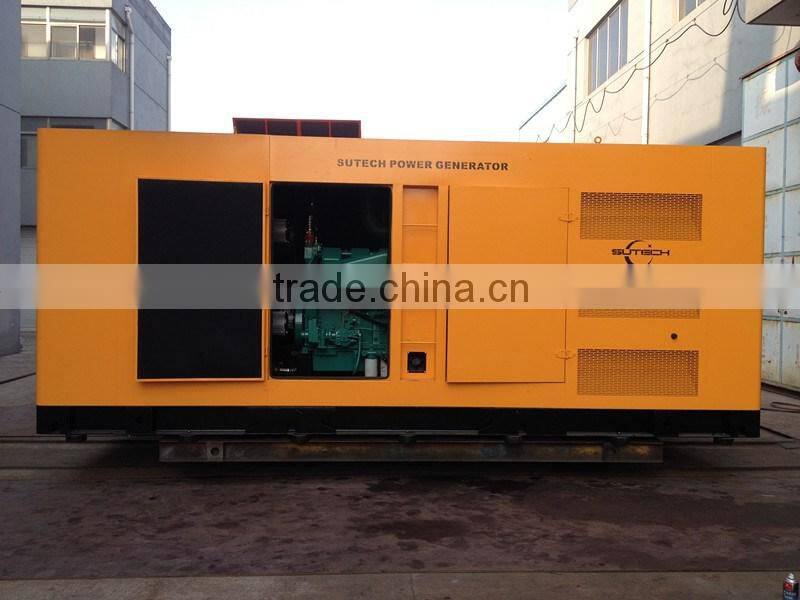

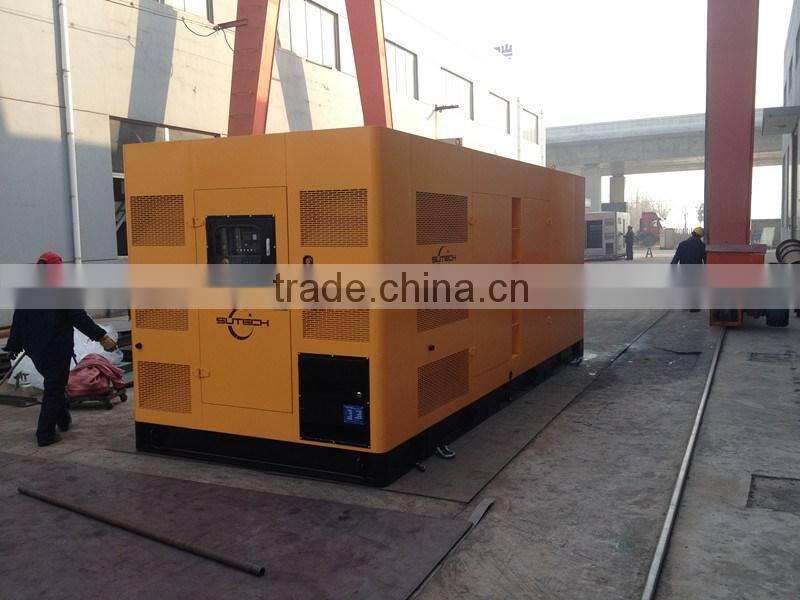

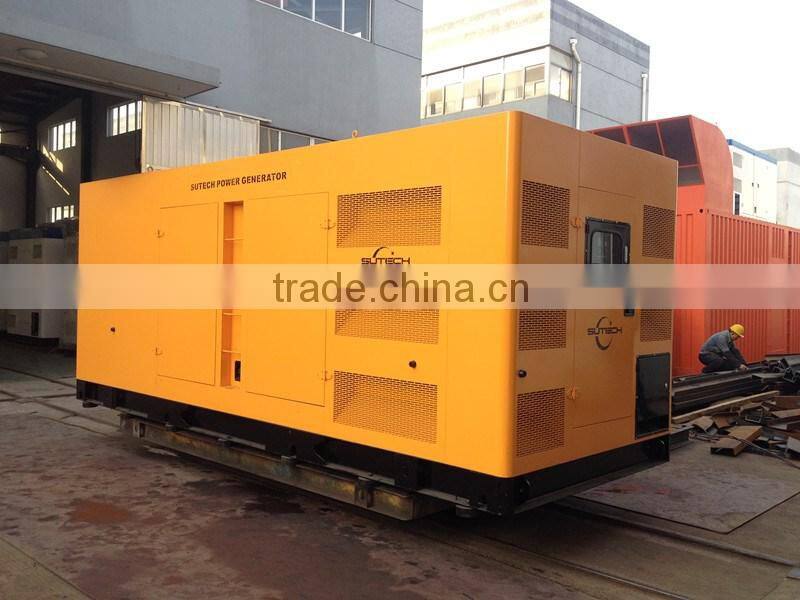

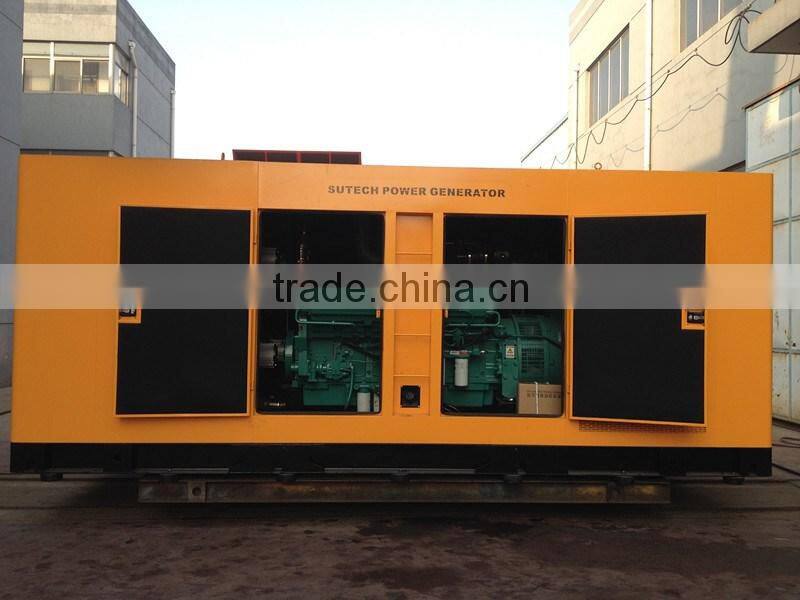

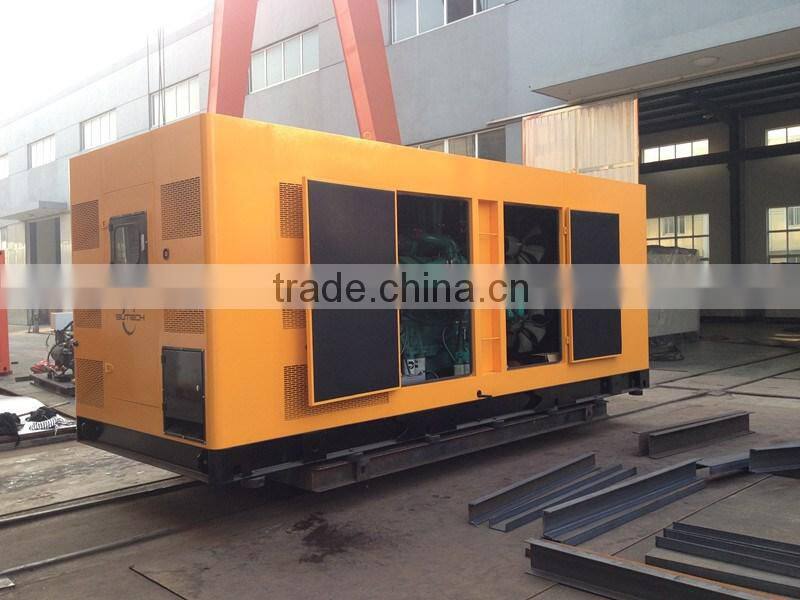

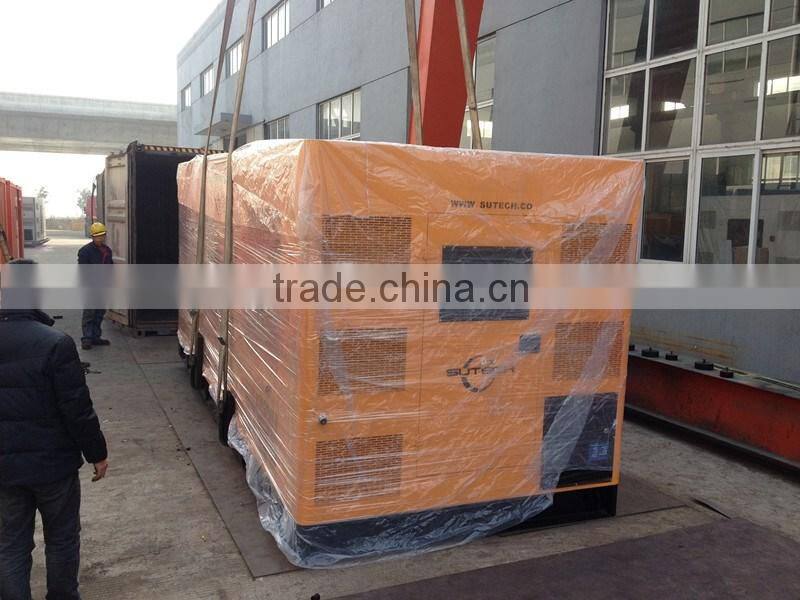

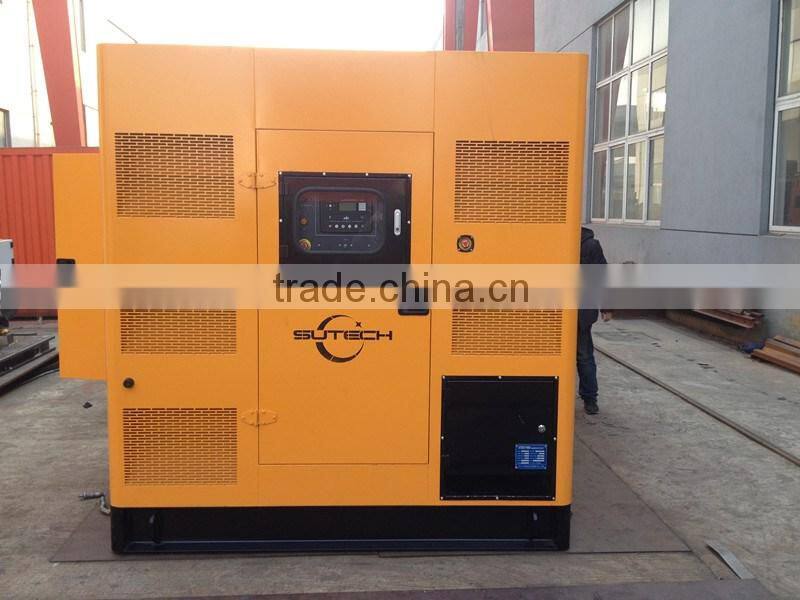

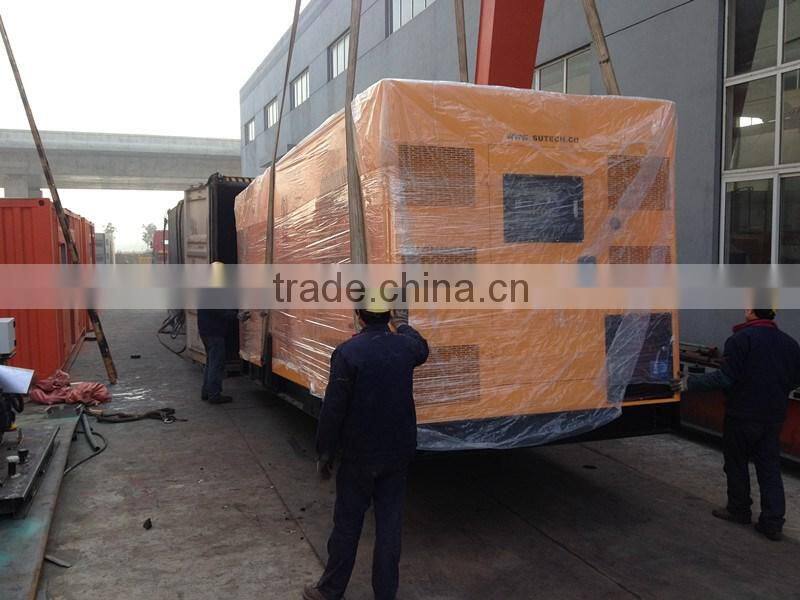

Picture FYI
