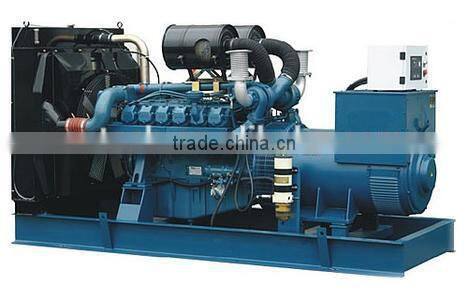

400Kw Doosan Genset
Doosan Daewoo engine
Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by Doosan Daewoo engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 500 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
Doosan Daewoo diesel generator power capacity
| Model | Prime power | Engine model | No.of cyls | Bore/stroke (mm) | Fuel Cons. (g/kwh) | Dimension (L*W*H) (mm) | Weight(kg) | |
| KW | KVA | |||||||
| ST-DS66 | 48 | 60 | DB58 | 6.L | 102/118 | 215 | 2400*980*1500 | 1200 |
| ST-DS100 | 72 | 90 | D1146 | 6.L | 111/139 | 222 | 2400*980*1500 | 1600 |
| ST-DS138 | 100 | 125 | D1146T | 6.L | 111/139 | 200 | 2400*980*1500 | 1600 |
| ST-DS165 | 120 | 150 | P086TI-I | 6.L | 111/139 | 207 | 2400*980*1500 | 1800 |
| ST-DS176 | 128 | 160 | P086TI-I | 6.L | 111/139 | 207 | 2400*980*1500 | 1800 |
| ST-DS220 | 160 | 200 | P086TI | 6.L | 111/139 | 202 | 2400*980*1500 | 1900 |
| ST-DS275 | 200 | 250 | P126TI | 6.L | 123/155 | 205 | 3030*1100*1820 | 3000 |
| ST-DS300 | 220 | 275 | P126TI | 6.L | 123/155 | 205 | 3030*1100*1820 | 3000 |
| ST-DS330 | 240 | 300 | P126TI-II | 6.L | 123/155 | 202 | 3030*1100*1820 | 3000 |
| ST-DS385 | 280 | 350 | P158LE-1 | 8.V | 128/142 | 232 | 3030*1100*1820 | 3000 |
| ST-DS413 | 300 | 375 | P158LE-1 | 8.V | 128/142 | 232 | 3030*1100*1820 | 3000 |
| ST-DS450 | 320 | 400 | P158LE | 8.V | 128/142 | 209 | 3030*1100*1820 | 3500 |
| ST-DS500 | 360 | 450 | P158LE-S | 8.V | 128/142 | 209 | 3600*1550*2100 | 3600 |
| ST-DS550 | 400 | 500 | P180LE | 10.V | 128/142 | 200 | 3600*1550*2100 | 3600 |
| ST-DS625 | 450 | 563 | P222LE-I | 12.V | 128/142 | 209 | 3600*1550*2100 | 3800 |
| ST-DS660 | 480 | 600 | P222LE | 12.V | 128/142 | 209 | 3600*1550*2100 | 3800 |
| ST-DS688 | 500 | 625 | P222LE-S | 12.V | 128/142 | 209 | 3800*1550*2100 | 3900 |
| ST-DS750 | 540 | 675 | P222LE-II | 12.V | 128/142 | 209 | 3800*1550*2100 | 3900 |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 85Kva~630Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
