The equipment is a single-effect continuous type vacuum concentrating device.

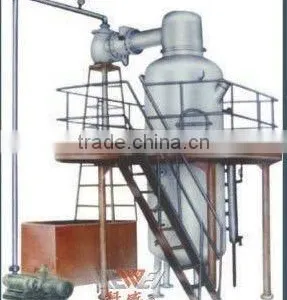

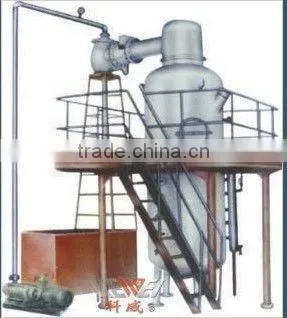

PNS model coil tube type concentrating boiler
The equipment is a single-effect clearance type vacuum concentrating device,which is composed of vessel,coil tube heater,separator,hydraulic injector,operation platform and multistage pump etc.It is applicale to vacuum concentration of heat senstitive materials(such as fruit juice,vegetable juice and liquid medicine etc. flowing materials) under low temperature.
It has such features as small volume,simple structure,convenient operation,cleaning and maintenance.Parts that contact materials are made of SUS304 stainless steel.
Evaporating temperature 50~55
Steam pressure ≤0.15Mpa
Type: coil tube type
Vacuum degree: -0.083-0.0906Mpa
Model |
Evaporation |
Circulating water consumption |
Steam consumption |
Total capacity installed |
Heat exchange |
Outline dimensions(m) |
PNS-300 |
300L/h |
11.6m3/h |
350kg/h |
5.5kw |
3.17m2 |
3.0x2.8x3.2 |
PNS-700 |
700L/h |
19.3m3/h |
800kg/h |
11kw |
6.7m2 |
3.5x3.1x4.1 |
PNS-1000 |
1000L/h |
39m3/h |
1130kg/h |
11kw |
9.5m2 |
3.6x3.4x4.5 |
