The equipment is a single-effect continuous type vacuum concentrating device.

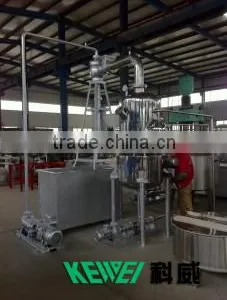

NS model external circulating continuous concentrating boiler
The equipment is a single-effect continuous type vacuum concentrating device,which is composed of vessel,heater,separator,hydraulic injector,operation platform and multistage pump etc. It is applicable to vacuum concentration of heat sensitive materials(such as fruit juice,vegetable juice and liquid medicine etc. flowing materials) under low temperature.It has such features as small volume,simple structure,convenient operation,cleaning and maintenance.Parts that contact materials are made of SUS304 stainless steel.
Evaporating temperature: 50~55
Steam pressure ≤0.15Mpa
Type: tubular
Vacuum degree: -0.083 -- -0.0906Mpa
Model |
Evaporation |
Circulating water consumption |
Steam consumption |
Total capacity installed |
Heat exchange |
Outline dimensions(m) |
NS-300 |
300L/h |
11.6m3/h |
330kg/h |
5.5kw |
2.67m2 |
2.8x2.65x3.8 |
NS-500 |
500L/h |
19.3m3/h |
560kg/h |
11kw |
4.6m2 |
3.04x2.84x4.44 |
NS-1000 |
1000L/h |
39m3/h |
1130kg/h |
11kw |
10m2 |
3.13x3.0x4.5 |
