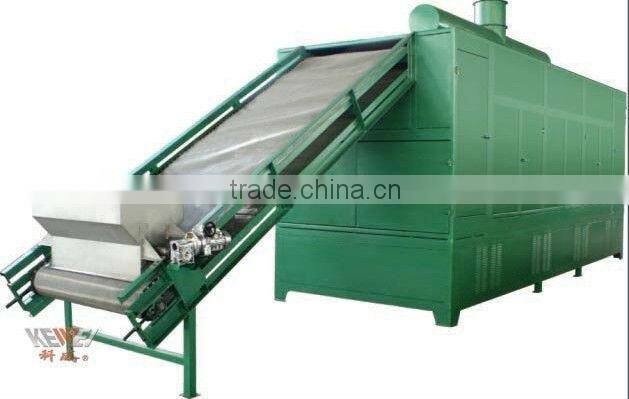

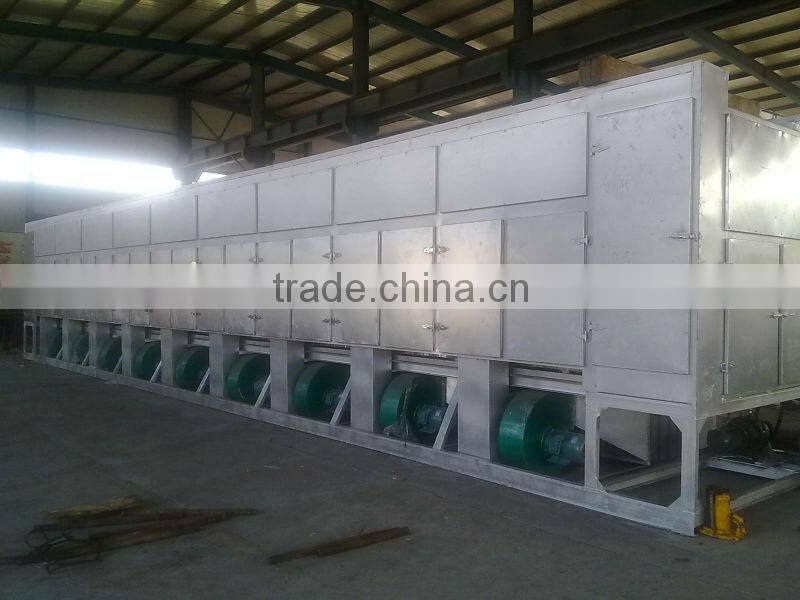

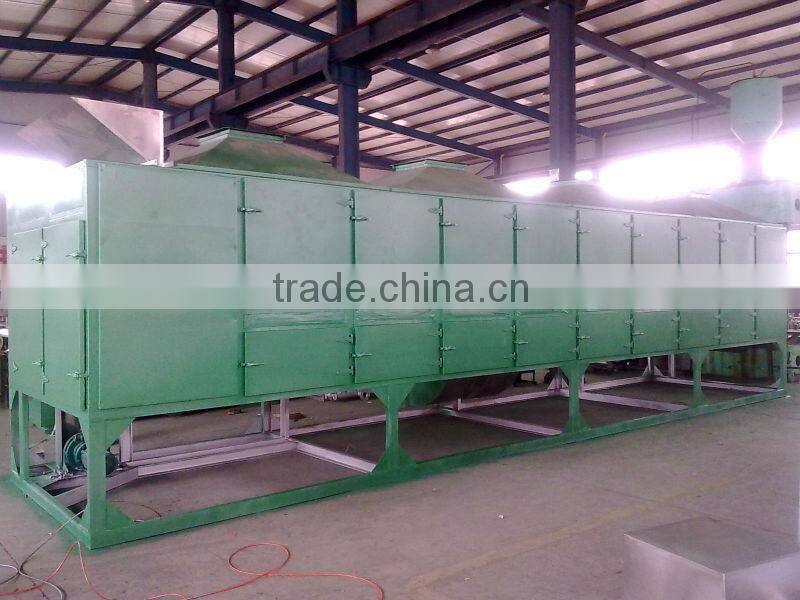

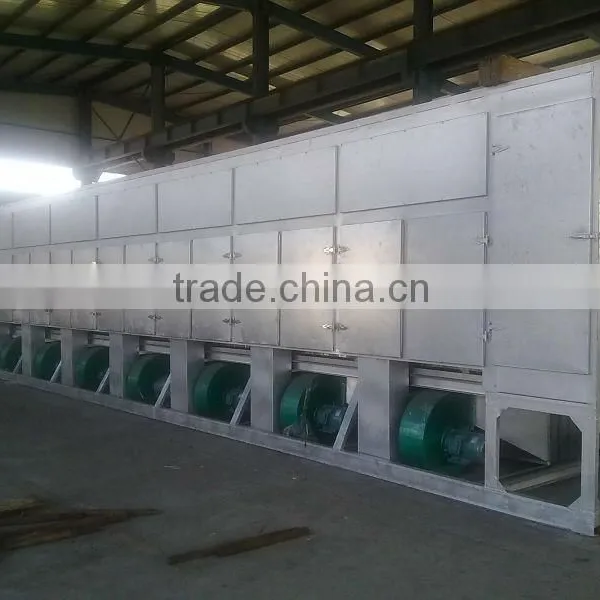

Brief introduction
The machine is a continuous type drying device for batch production.It is used for drying slice,bar-shaped and granule materials with good ventilation,and is especially suitable for materials with high water content and not allowing a high material temperature,such as dehydrated fruits and vegetables,traditional Chinese medicine tablets etc.The machine has such advantages as rapid speed,high evaporation intensity and good product quality.It can also dry filter cake such as ointment materials and partices made by wet-process.
Technical parameters:
Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 |
Unit quantity | 4 | 5 | 4 | 5 | 4 | 5 |
Belt width(m) | 1.2 | 1.6 | 2 | |||
Drying section length(m) | 8 | 10 | 8 | 10 | 8 | 10 |
Material thickness mm | 10-80 | |||||
Working temperature() | 50-120 | |||||
Steam pressure(MPa) | 0.2-0.5 | |||||
Steam consumption(kg/h) | 120-130 | 150-375 | 150-375 | 171-470 | 180-500 | 225-600 |
Heat exchanging area() | 272 | 340 | 352 | 440 | 448 | 560 |
Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 |
Drying intensity(kg water/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 |
Fan quantity | 5 | 6 | 5 | 6 | 5 | 6 |
Total power of fan(KW) | 9.9 | 12.1 | 9.9 | 12.1 | 18.2 | 22.2 |
Total power of equipment(KW) | 1.4 | 13.6 | 11.4 | 13.6 | 19.7 | 23.7 |
Outline dimensions(mm) | 9.77x1.5x2.83 | 11.77x1.5x2.83 | 9.77x2.24x2.83 | 11.77x2.24x2.83 | 9.77x2.66x3.5 | 11.77x2.66x3.5 |
