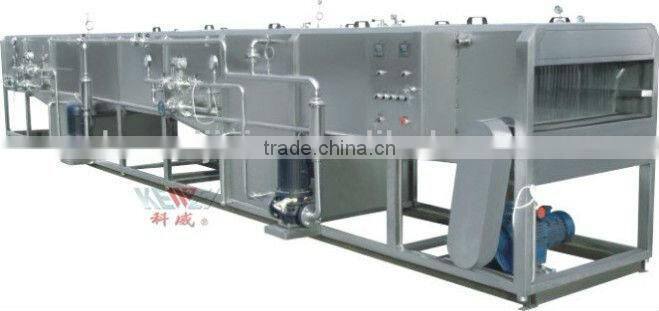

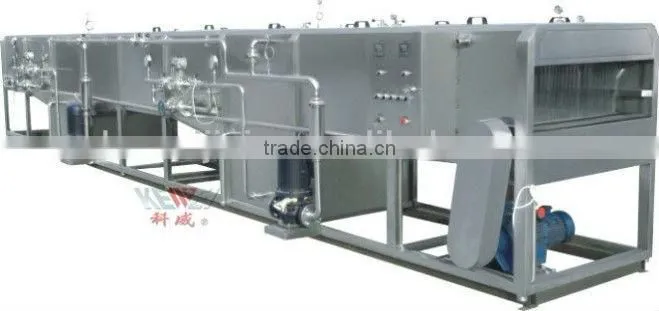

PLS Model continuous type spraying,sterilizing and cooling machine
- 20 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | Kewei | |
| Model Number | PLS |
Product Description
Continuous UV water sterilizer is designed and made on the basis of absorbing and digesting abroad machine. It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre-cool, and cooling water to cool; it is with the advantages of sterilizing temperature automatic control, and adjustable sterilizing time;and can be widely used in sterilizing and cooling of juice and beverage in various bottles and cans, electrolyte beverage, wine and condiments. It can be designed and made to the sterlization conditions and production provided by the customer.
Technical parameters:
| Name | PLS-1000 | PLS-2000 | PLS-3000 | PLS-5000 | |
| The hingest sterilizing temperature | 100°C | ||||
| The width of sterilization transferring belt | 1500mm | ||||
| Transferring belt speed | 110-553mm | ||||
| Heating steam pressure | 0.4Mpa | ||||
| Length of sterilization step(mm) | 9000 | 16000 | 22000 | 320000 | |
| Length of pre Cooling step(mm) | 1200 | 16000 | 1800 | 2200 | |
| Length of cooling step(mm) | 3000 | 5000 | 8000 | 10000 | |
| Heating recycling water volume(m3) | 21 | 25 | 35 | 50 | |
| Power(kw) | 9.6 | 10.6 | 13.6 | 16.5 | |
| Size(mm) | Length | 9880 | 17880 | 23800 | 34880 |
| Width | 2250 | ||||
| Height | 1735 | ||||
