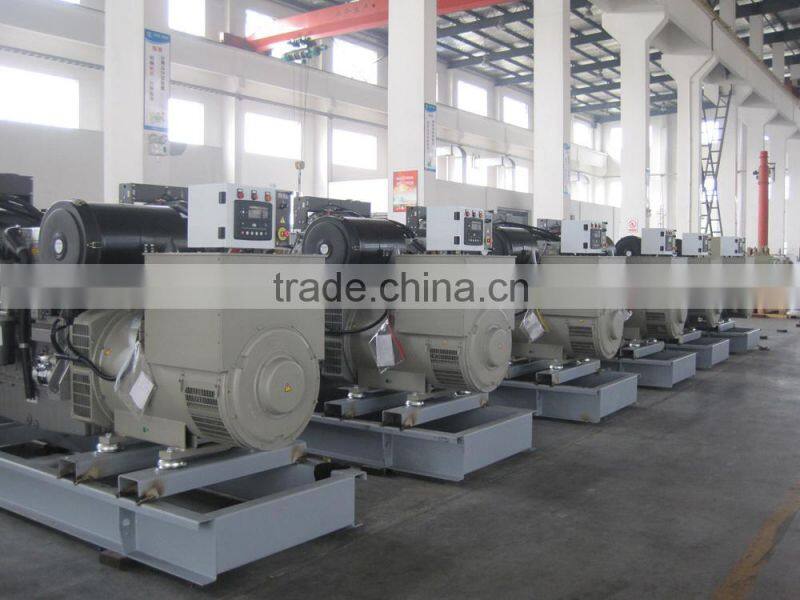

9Kva~2250Kva UKP Diesel Generators, UK Original, Very High Quality
- Shanghai
- T/T Credit Card
You May Like
-
20Kva~2250Kva Cummins Diesel Generators, High Quality With Reasonable Price, Professional Generators Manufacturer
-
With UK Original Perkin 4016TAG2A Engine 2000Kva Generator
-
2000Kva Diesel Generator, Powered by Perkins Engine 4016TAG2A
-
2000Kva 4016TAG2A Diesel Generator, Powered by Perkins Engine 4016TAG2A
-
1800Kw/2250Kva Electric Diesel Generator Set, Powered by 4016-61TRG3 Engine
-
Cheap Silent Diesel Generator 15KW With Automatic Transfer Switch Chinese Generator
Product Details
| Place of Origin | Jiangsu, China | Brand Name | UKP diesel engine | |
| Model Number | 403D,1103A,1006,1306C,2206A, 4006, 4016 series | Output Type | AC Three Phase | |
| Speed | 1500rpm/min | Frequency | 50Hz | |
| Rated Power | 9Kva~2250Kva | Rated Voltage | 110V~600V | |
| Rated Current | 13A~3240A |
Product Description
Specifications
UKP diesel generator from 9Kva~2250KvaLeory Somer alterantor
Deepsea control panel
High quality
Reasonable price
9Kva~2250Kva UK diesel generators
UKP engine
Every generator set is subjected to a comprehensivetest program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;
24V DC start motor;
Equipped with battery charger and 24V highperformance maintenance-free lead-acid startingbatteries and connecting with cables;
Equipped with industrial silencer and flexible exhaust hose;
Equipped with CHINT MCCB circuit breaker;
Designed to Comply with ISO8528/GB2820;
Powered by UKP engine,Controlled by Deepsea panel
Voltage | HZ | Phase | P.F (COS) | Output (KVA) |
400/230V | 50 | 3 | 0.8 | 9~2250 |
Remark | 60Hz, 220, 380V, 460V, 480V, 600V can be produced as requirements. | |||
UKP diesel generator power capacity
| Model | Prime power | Engine model | No.of cyls | Bore/stroke (mm) | Fuel Cons. (g/kwh) | Dimension (L*W*H) (mm) | Weight(kg) | |
| KW | KVA | |||||||
| ST-P8GF | 8 | 10 | 403D-11G | 3 | 77*81 | 252 | 1200×700×1100 | 300 |
| ST-P10GF | 10 | 12.5 | 403D-15G | 3 | 84*90 | 264 | 1250×700×1100 | 350 |
| ST-P16GF | 16 | 20 | 404D-22G | 4 | 84*100 | 237 | 1500×730×1300 | 500 |
| ST-P24GF | 24 | 30 | 1103A-33G | 3 | 105*127 | 214 | 1770×750×1600 | 800 |
| ST-P36GF | 36 | 45 | 1103A-33TG1 | 3 | 105*127 | 215 | 2050×750×1600 | 920 |
| ST-P48GF | 48 | 60 | 1103A-33TG2 | 3 | 105*127 | 211 | 2200×750×1600 | 1050 |
| ST-P52GF | 52 | 65 | 1104A-44TG1 | 4 | 105*127 | 211 | 2250×750×1600 | 1100 |
| ST-P64GF | 64 | 80 | 1104A-44TG2 | 4 | 105*127 | 211 | 2300×750×1600 | 1150 |
| ST-P80GF | 80 | 100 | 1104C-44TAG2 | 4 | 100*127 | 205 | 2480×760×1600 | 1250 |
| ST-P110GF | 110 | 137.5 | 1006TAG | 6 | 100*127 | 208 | 2600×760×1600 | 1400 |
| ST-P120GF | 120 | 150 | 1006A-TAG2 | 6 | 100*127 | 208 | 2650×760×1600 | 1450 |
| ST-P140GF | 140 | 175 | 1106C-E66TAG2 | 6 | 105*127 | 206 | 2700×900×1600 | 1700 |
| ST-P160GF | 160 | 200 | 1306C-E87TAG3 | 6 | 116*136 | 220 | 3000×1000×1700 | 2100 |
| ST-P180GF | 180 | 225 | 1306C-E87TAG4 | 6 | 116*136 | 217 | 3000×1000×1700 | 2100 |
| ST-P200GF | 200 | 250 | 1306C-E87TAG6 | 6 | 116*136 | 216 | 3100×1000×1700 | 2150 |
| ST-P280GF | 280 | 350 | 2206A-E13TAG2 | 6 | 130*157 | 209 | 3600×1200×2000 | 3200 |
| ST-P320GF | 320 | 400 | 2206A- E13TAG3 | 6 | 130*157 | 206 | 3650×1200×2000 | 3300 |
| ST-P360GF | 360 | 450 | 2506A-E15TAG1 | 6 | 137*171 | 216 | 4000×1200×2100 | 3700 |
| ST-P400GF | 400 | 500 | 2506A-E15TAG2 | 6 | 137*171 | 211 | 4050×1200×2100 | 3760 |
| ST-P480GF | 480 | 600 | 2806A-E18TAG1A | 6 | 145*183 | 216 | 4100×1600×2200 | 4600 |
| ST-P520GF | 520 | 650 | 2806A-E18TAG2 | 6 | 145*183 | 202 | 4200×1600×2200 | 4800 |
| ST-P600GF | 600 | 750 | 4006-23TAG2A | 6 | 160*190 | 209 | 4500×1800×2300 | 5500 |
| ST-P640GF | 640 | 800 | 4006-23TAG3A | 6 | 160*190 | 210 | 4600×1800×2300 | 6000 |
| ST-P720GF | 720 | 900 | 4008TAG1A | 8 | 160*190 | 206 | 4800×2100×2500 | 7700 |
| ST-P800GF | 800 | 1000 | 4008TAG2A | 8 | 160*190 | 206 | 4900×2100×2500 | 8000 |
| ST-P1000GF | 1000 | 1250 | 4012-46TWG2A | 12 | 160*190 | 212 | 5300×2200×2600 | 10000 |
| ST-P1200GF | 1200 | 1500 | 4012-46TAG2A | 12 | 160*190 | 212 | 5400×2200×2600 | 11000 |
| ST-P1320GF | 1320 | 1650 | 4012-46TAG3A | 12 | 160*190 | 212 | 5500×2200×2600 | 12000 |
| ST-P1480GF | 1480 | 1850 | 4016TAG1A | 16 | 160*190 | 205 | 5700×2800×3100 | 13500 |
| ST-P1600GF | 1600 | 2000 | 4016TAG2A | 16 | 160*190 | 208 | 5800×2800×3100 | 14000 |
| ST-P1800GF | 1800 | 2250 | 4016-61TRG3 | 16 | 160*190 | 210 | 5900×2800×3100 | 1570 |
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 9Kva~2250Kva |
Frequency/speed | 50HZ/1500rpm (60Hz/1800rpm) |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Phase / wire | 3 phase 4 wires |
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
