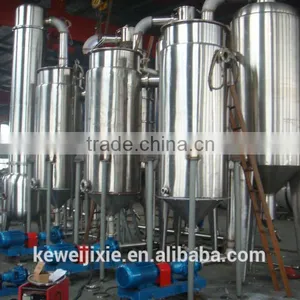

SJN3 tri-effect external circulating vacuum evaporator machine
- 20 Set / Sets per Month
- ShangHai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SJN1 single-effect external circulating juice evaporator machine
-
SJN2 dual-effect external circulator evaporator machine
-
hot sales TN model extracting and concentrating line
-
NS model external circulating continuous concentrating boiler machine
-
SYS model water-bath continuous sterilizing and cooling machine
-
JNS model jacket vacuum concentrating boiler machine with blender
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | KEWEI | Model Number | SJN3 | |
| Type | Other, evaporator |
Product Description
The equipment is widely used for evaporation and concentration process of liquids in food,beverage and light industry etc.The equipment adopts tubular circulating external heating princile,with such feature as short heating time of materials,rapid evaporation speed,large concentration specific gravity and effective original effect of materials.
The energy saving effect is prominent.It can save about 70% of steam than single-effect evaporator.
It complies with GMP and HACCP standards.
Name and model | SJN3-500 | SJN3-1000 | SJN3-1500 | SJN3-2000 | SJN3-3000 | SJN3-5000 | SJN3-8000 | SJN3-2000 | |
Steam Output(kg/h) | 600 | 1200 | 1700 | 2300 | 3300 | 5500 | 8800 | 23000 | |
Air con- sumption(kg/h) | 200 | 350 | 500 | 650 | 1100 | 1500 | 2200 | 7000 | |
Outline size(m) | 5x1.3x3 | 6.5x1.5x3.3 | 7x1.7x3.5 | 7.5x2x4 | 7.8x2x4.3 | 8x2x4.5 | 9x2.5x5 | 15x3.5x7 | |
Water con- sumption(T/H) | 5 | 10 | 13 | 15 | 18 | 25 | 40 | 40 | |
Evaporation temperature | Single-effect | 85-90 | Vacuum degree(MPa) | Single-effect | -0.02~ -0.04 | ||||
Dual-effect | 70-75 | Dual-effect | -0.05~ -0.06 | ||||||
Tri-effect | 55-65 | Tri-effect | -0.08~ -0.09 | ||||||
Steam pressure(MPa) | 0.05-0.09 | Concentration ratio | 1.25~ 1.4 | ||||||
