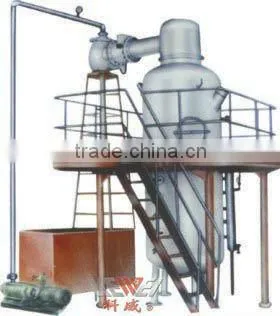

SJN1 Single-effect External Circulating Juice Evaporator Machine
US$ 1 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KEWEI
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SJN2 Dual-effect External Circulator Evaporator MachineUS$ 1 - 100,000MOQ: 1 Set -
Hot Sales TN Model Extracting and Concentrating LineNegotiableMOQ: 1 Set
-
NS Model External Circulating Continuous Concentrating Boiler MachineNegotiableMOQ: 1 Set
-
SYS Model Water-bath Continuous Sterilizing and Cooling MachineNegotiableMOQ: 1 Set
-
JNS Model Jacket Vacuum Concentrating Boiler Machine With BlenderNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
KEWEI
Model Number
SJN1-500
Type
Dehydrator
Voltage
380V
Weight
1300kg
Certification
GMP HACCP
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
single-effect external circulating juice evaporator machine
Summary:
It adopts external heating natural cycling and negative pressure evaporation method,with rapid evaporation speed and large concentration specific gravity.The liquid materials are concentrated without foam and pollution. It has such features as high alcohol recovery capacity,coventient cleaning,simple operation,small landing area,low investment, beautiful appearance and high efficiency etc.
It is widely used for concentraction of sugar lutions during the production of food, beverage,traditional Chinese medicine, as well as industrial alcohol recovery. It complines with GMP and HACCP standards.
Technical and parameters
| Model | SJN1-500 | SJN1-1000 | SJN1-1500 |
| Evaporation(kg/h) | 500 | 1000 | 1500 |
| Heat exchange(m2) | 10 | 20 | 30 |
| Vacuum degree(Mpa) | -0.07-0.09 | -0.07-0.09 | -0.07-0.09 |
| Steam pressure(Mpa) | 0.09-0.2 | 0.09-0.2 | 0.09-0.2 |
| Steam consumption(m3/h) | 0.65 | 1.3 | 1.8 |
| Weight(kg) | 1300 | 1800 | 2500 |
