XPS foam products line
- 12 Piece / Pieces per Month
- Qingdao CHINA
- T/T
Product Details
Condition: | New | Application: | Sheet | Plastic Processed: | XPS |
Screw Design: | Double-screw | Automatic Grade: | Automatic | Place of Origin: | Shandong, China |
Brand Name: | DEYILI | Model Number: | SFBZ-75/150 | Voltage: | 380v or other requests |
Power(W): | 280kw | Dimension(L*W*H): | 48*10*5m | Weight: | 28tons |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

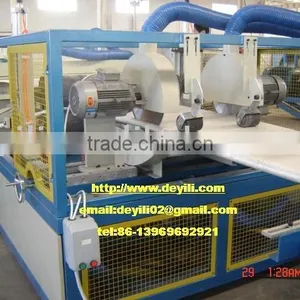

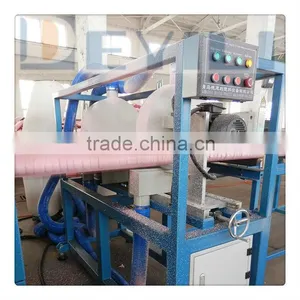

XPS foam products line
XPS Foam Board Extrusion Line is one of our new hi-tech products. XPS foamed board is one kind of
good insulating materials with continuous even surface and beehive structure. It has superior advantages
of good heat preservation, heat insulation, waterproof and high compression resistance. XPS board has
been widely used in the fields of heating-preservation and insulation for roof and outwall, low temperature
storage facilities, surface and undersurface of roads. As an ideal insulating and damp-proof material,
it has wide market prospect.
1)Used PS material to extrude the foamed board for insulation construction field,
2)Outlook complete and unify, SIEMENS PLC digital control,
3)The die mould accuracy, the runner more reasonable,
4)The recirculating water tank of cast aluminum cooling system,
5)Large output with stable working performance,
6)The self-contained auxiliary machines for your different production plan.
7)DEYILI standard color and special design with machine structure and electrical lines displacement, etc.
Model | Screw diameter and L/D ratio | Board | Capacity | Power | ||
|
| Width/mm | Thickness/mm | Density |
|
|
SFBZ-100/120 | Single screw 100-32D Single screw 120-42D | 600 | 20-70 | 32kg/m3 | 180m3/d | 180kw |
SFBZ-135/150 | Single screw 135-32D Single screw 150-42D | 600/900/1200 | 20-120/80/60 | 30kg/m3 | 350m3/d | 260kw |
SFBZ-75/150 | Twin screw 75-40D Single screw 150-42D | 600/900/1200 | 20-120/80/60 | 30kg/m3 | 360m3/d | 280kw |
SFBZ-170/200 | Single screw 170-30D Single screw 200-34D | 600/900/1200 | 20-150/150/80 | 28kg/m3 | 450m3/d | 520kw |
Packaging | Standard sea-worthy package mainly with wooden pallet and film coverage for the main machine body; wooden cases for electrical parts & consumable parts. In 3 40' containers. |
1 | Customize Design: Special design for every customer’s actual needs |
2 | Guarantee of quality: One year guarantee of quality for line under correct operation. |
3 | Documents supply: Mechanical and electrical operation manual, Electrical connection drawing(1)and Operation technique manual(1). |
4 | After-sales service provided: Engineers team available to service machine overseas. |
5 | Machine maintenance: Machine lifelong maintenance while troublesome happens. |
6 | Upgrade: Free production software upgrading production formula, process technology and machine structure improves, etc. |
Located in International Airport Industrial Zone, Qingdao Deyili Plastic Machinery Co., Ltd. A hi-tech
enterprise specialized in researching, developing, and manufacturing plastic extrusion equipment. It was
entitled Enterprise of New Technology&Materials of Ministry of Construction, Qingdao Top Ten Hi-
tech Enterprise, and Experimental Unit of Technology Venture Capital.
We are mainly exporting to Russia, Turkey, Iran, Ukraine, Uzbekistan, Finland, Sweden, Austrilia, and
other area of East Europe and mid-east.
Since foundation in 1998, Deyili has been persevering in technology innovation and devoted to R&D and
applications of new machinery, new technology and new technique. We have an excellent technical team
and keeps close cooperation with many technology institute and universities.
At present, Deyili owns 28 National Patents, 14 items supplied domestic gap and 6 items are National
Key Products. We take the lead in development and updating of our key products, which reached the
highest technical level in China.
After years of exploration, the enterprise has been enlarged and strengthened continuously. Now it has
become a group which widened its businesses from one fold plastic machinery to production of plastic
pipes and pipe-fittings. Deyili can provide more integrated solutions and all-around services to customers
from extrusion lines to technique and materials.
Payment terms | 30% down payment after signing the contract within 5 workdays, the rest 70% payment after test run in our factory and before shipment. |
Accepting& inspecting in seller's factory | Bring into the agreed time, it is in seller's factory to accept and inspect. The test run will make the pipes under two sides discussion, and promise the machine works in succession for two hours. Other special request, negotiate by two sides. The charge of test materials should be paid by buyer side. |
Installation&test-run in buyer's factory | 1)User should prepare the plant, operators and tools for machine installing, and make the energy available such as water, electricity, materials, work space, labors and so on. 2)Seller send one engineer for direction and supervising the installing, test run and training. The test run will be finished in 15 days if there is other requests please inform in advance. 3)The buyer should pay $100 per day as subsidy for the engineer, and in addition the round airplane tickets, food, hotel fee and insurance of the engineer during the installation and test-run period. |
Documents supply | Mechanical and electrical operation manual(1), Electrical connection drawing(1), And Operation technique manual(1). |
Welcome for your visiting and discuss the details on the technical and process.
The concrete information please write to our sales.
