High Speed Double Usage Filling and Sealing

High Speed Double Usage Filling and Sealing photo-1
High Speed Double Usage Filling and Sealing photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Medical
Packaging Type:
Other, TUBE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Medical
Packaging Type Other, TUBE
Packaging Material Metal
Automatic Grade Automatic
Voltage 380V/220V
Power 2.2KW
Place of Origin Zhejiang, China
Model Number ZHYZ-80A
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

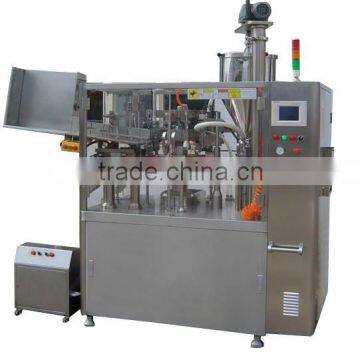

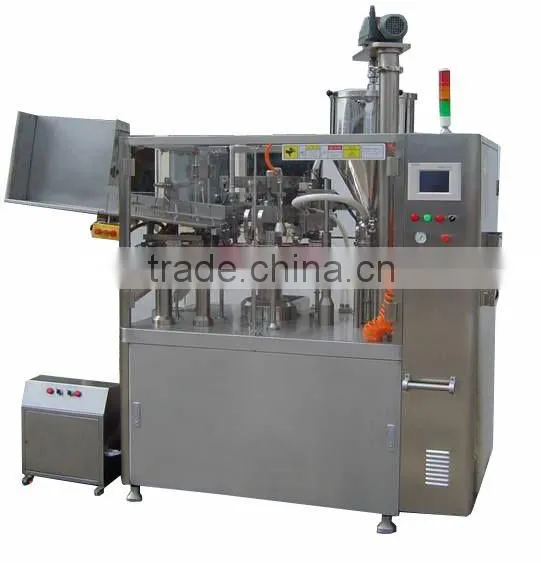

ZHYZ-80A Series high speed double usage filling and sealing machine



(applicable to all plastic tubes, combined tubes and metal tubes)



Key Features



  • Compact Design
  • automatic completion of filling, sealing and batch No. printing of metal tubes, plastic tubes and combined tubes in one machine
  • Driving Parts Fully-closed
  • Pneumatic Tube Washing & Feeding
  • Intelligent Temperature Control and Cooling System
  • Easy to Operate and Adjust
  • PLC automatic control
  • 316L Stainless Steel Contact Parts to meet GMP Standard
  • Safety Interlock Shutdown when Door is Open
  • Overload Protection Provided
  • Automated Working process from Tube Loading to Finished Products Output
  • Automatic Orientation Effected by Photoelectric Induction



Optional Devices



  • Automatic detection of tube direction inversion
  • Automatic cleaning and dust collecting device for the inside of tube
  • Tube bottom material feeding form
  • Equipped with automatic material temperature control blending system.
  • Ultrasonic hopper level automatic detection system.



Technical Parameters



Filling volume

Metal 1-150ml plastic 1-250ml

Filling accuracy

±1%

Capacity

3600-6000unit/hour, Adjustable

Tube diameter

Metal Φ10-35 mm plastic Φ10-60mm

Tube length

50-240 mm

Hopper volume

40L

Power

380V/220V (Optional)

Air pressure

0.4-0.6 MPa

Equipped motor

2.2KW
