Multilayer Co-extrusion Cast Film Machine
- 30 Set / Sets per Month
- Ningbo port/Shanghai port
- T/T Credit Card PayPal
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Film | Plastic Processed: | Other, LDPE,LLDPE |
Blow Moulding Type: | Extrusion Blow Moulding | Automatic: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | JINGDIANRUIHUA | Model Number: | DFA-65 | Voltage: | 220V/380V |
Power(W): | 28kw | Dimension(L*W*H): | 5000*3900*6500mm | Weight: | 3000Kgs |
Certification: | CE/ISO9000 for Multilayer Co-extrusion Cast Film Machine | Warranty: | One Year Guarantee Time | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

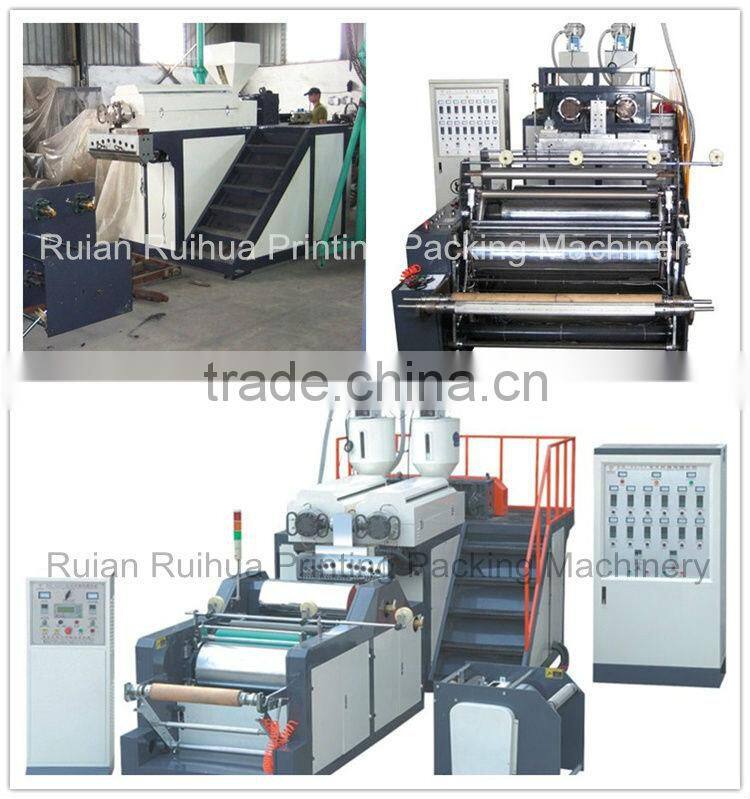

Multilayer Co-extrusion Cast Film Machine
PRODUCTS WORKSHOP
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
Ⅰ. Feature:
1. It profits advanced technology from aboard and manufacture by absorption, improvement, innovation
2. It is entire frequency conversion control, movement stable, highly effective and the low energy consumption.
3. The product adopts the craft of one time forming
4. It can produce two-side sticks for stretching
Ⅱ. Unit introduction:
1. This series unit is mainly used in producing the polyethylene plastic film for unidirectional stretch(stretching film, twines membrane)as well as fresh film.
2. Therefore it applies in building material,hardware fitting packing widely. The screw of unit adopts 38CRNOALA alloy steel.It manufactured by nitric and precise processing so that it is highly hardness and durable long time
3. Temperature controls adopts advanced automatic control system and the T mold adopts the multi-spots adjustment. They could cause the film thickness to be evener.
4. The cooling system adopts the circulating water cool and it cooling effect is good .
5. the rollout installment adopts the friction type of rollout and has the cutting edge installment and side material rollout element by round-trip.This causes the film which rollout to be neater.
Ⅲ. Main Technical Parameter
Item/Model | 1250 (mm) double layer |
Screw diameter(mm) | 65 (1 piece) 65(1 piece) |
L/D ratio of screw (L/D) | 30 : 1 |
Width of die head (mm) | 1250 |
Width of finished products(mm) | 1000 |
Rollout diameter(mm) | 350 |
Thickness of finished products (mm) | 0.008-0.05 |
Structure of film layers | A / B |
Max output (kg/h) | 80-100 |
Linear speed of machinery (m/min) | 50-100 |
Traction power (kw) | 2.2*2 |
Total power (KW) | 90 |
Production speed(m/min) | 40-80 |
Weight (T)(About) | 4.5 |
Overall dimensions (L*W*H)m | 6.5*2.3*2.3m |
Machine details:
We use stout wood cases to pack the machines which can ensure the safety of products in the transportation.We can also pack the products as customers requests
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!
1.Q:Are you a factory or trading company ?
A:We are a factory
2. Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China. It's about 40 minutes by plane from shanghai (5 hours by train ) All our clients from home and abroad are warmly welcome to visit us
3. Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years , we will send our professional engineer to install and test machine .So our after-sales service is always reliable
4. Q:How can I get sample bags ?
A: We are honored to offer sample bags
5. Q:If your machines can print ..........
A : Our machines is multifunction , can do roll to roll printing , such as paper, plastic , woven , nonwoven .Surely , you can offer your products, Let us confirm it . we will suggest you the best project.
6 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory , we put more time to the quality control
---------------------------------------------------------------------------------------------------------------
