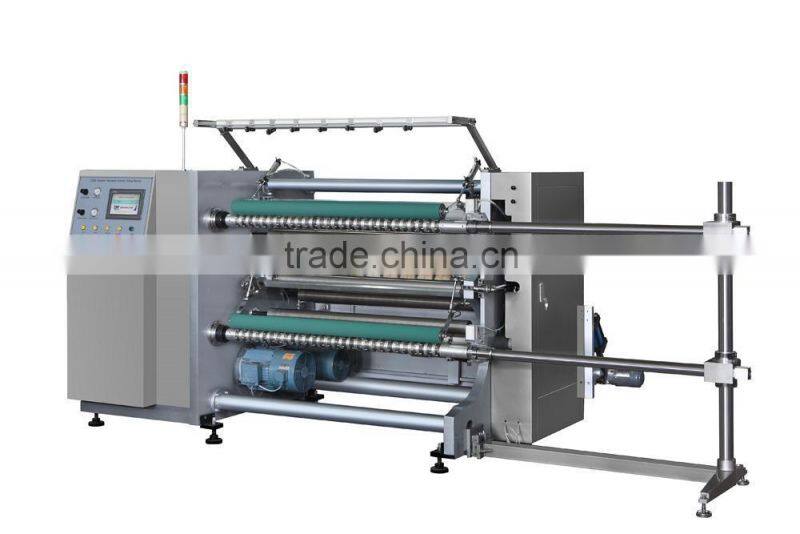

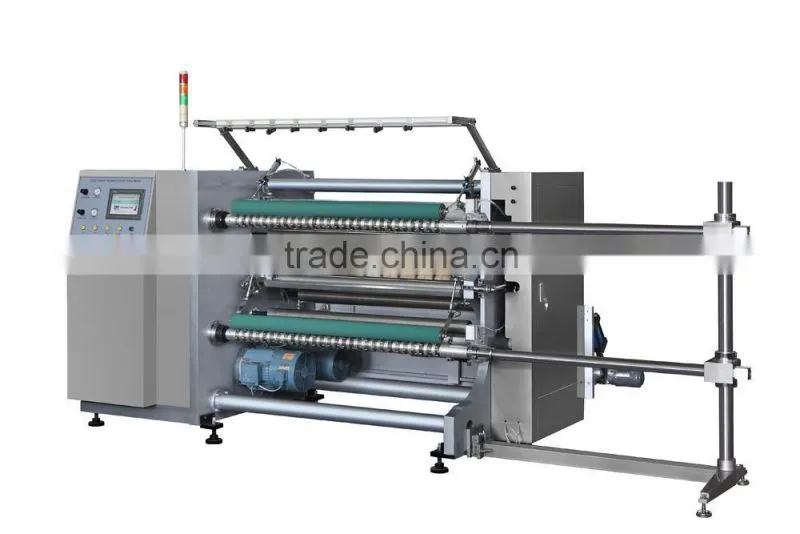

slitting machine for plastic film
Specifications
The machine applies to slit cellophane, PET, OPP, CPP, PE, PS, PVC and computer security labels, electronic computers, optical materials, film roll, foil roll, all kinds of paper rolls, film and printing of various materials, etc.
Features:
1, Unwinding unit: it adopt air shaft for loading.(optional device: non-axial Air pressure and get way with Air Chuck, who is caught taking raw materials fast, easy loading, single-person operation). EPC (Edge position control) uses imported LPC corrective device, it can achieve guide function by material edge and printed mark.( E+L Germany brand as optional)
Unwinding tension adopts magnetic powder brake through PLC to achieve a constant tension.(optional device: using independent vector variable frequency electrical parameters of the original pre-computing to achieve a constant tension).
2, Slitting Unit: This machine equipped with two kinds of slitting method: Flat knife slit and circular knife slit. (Circle knife is optional device).
3, Rewinding Unit: It uses of one motor connect with two magnetic powder clutch winding way(optional device: two vector motor), rewinding shaft is air shaft (optional device: pneumatic fall slip-shaft that ‘s pressure in center by pneumatic) ; With automatic tension compensation system, so that rewinding tension is steady ,don’t adjust tension in accordance with the speed and diameter increases.
4, winding sticks pressure unit : The machine is equipped with two sets of pneumatic pressure automatic lifting sticks, tension automatic control by computer.
5, waste edge processing section: This model is equipped with a vacuum-type waste edge exclusion system, use the strong force adsorb the waste edge out away
6, Electrostatic elimination Unit(optional device): The machine equipped a group of static brush apart on up and down rewinding shaft , which can effectively eliminate the static between slitting and rewinding .
7, Finished Produce unloading Unit :
It is a discharge rack can provide a larger diameter of the finished product is simple and efficient to operate and save time for the next feed.
8, PLC control system: Adopt imported PLC to achieve accurate and stable control, true color touch screen display to enable simple and beautiful images. Interactive parameter setting the environment, eliminating the complicated configuration can start the job: The user pre-start only need to input the material thickness, width, density, diameter and speed parameters, the next will be done automatically by a computer calculation to complete.
Main technical parameter:
Jumbo roll width | 1000mm | 1300mm |
Diameter of roll | 1000mm | 1000mm |
Diameter of rewinding | 600mm | 600mm |
Inner dia.of paper core | 3''or 76mm(optional: 6''or 152mm) | 3''or 76mm(optional: 6'' or 152mm) |
Slitting speed | 10-400m/min | 10-400 m/min |
Tolerance of EPC | ≤0.1mm | ≤0.1mm |
Min.width of produce | 50mm | 50mm |
Total power | 20KW | 20KW |
Weight | 3800Kg | 4500kg |
overall dimension (L X W X H) | 2400mm×420mm×1900mm | 2700mm×4500mm×1900mm |
