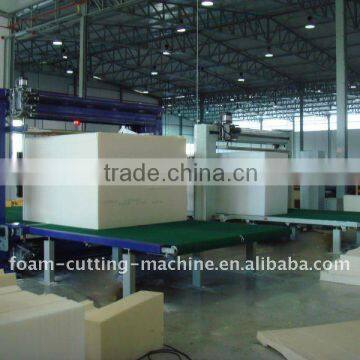

flexible sponge cutter

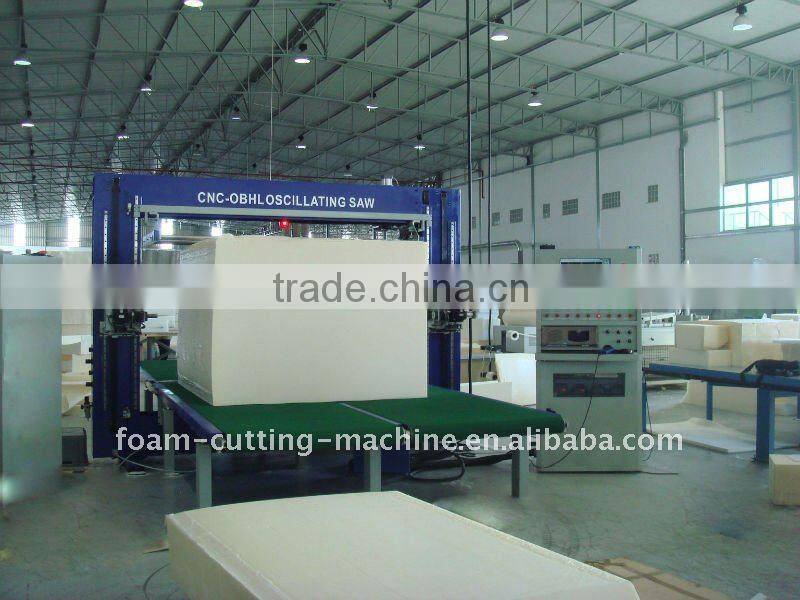

type: CNC-OBHL (horizontal series )
CNC-OBVL(vertical series)
MAIN Parameters:
| parameter/model | CNC-OBHL | CNC-OBH | CNC-OBVL |
| Cutting speed(m/min) | 0~8 | 0~8 | 0~8 |
| Speed of blade( m/min) | 0~5 | 0~5 | 0~5 |
| Cutting accuracy(mm) | 30+/-0.5 | 30+/-0.5 | 30+/-0.5 |
| Blade length(mm) | H2390,V1300 | H2390 | V1300 |
| Driving Voltage | 220V | 220V | 220V |
| Air-Pressure | ≤6MPa | ≤6MPa | ≤6MPa |
| CNC | PC/Industrial Computer | PC/Industrial Computer | PC/Industrial Computer |
| Displayer | 17" | 17" | 17" |
| Programmable Axis | X/Y-A | X/Y-A | X/Y-A |
| Computer System | windows XP or above | windows XP or above | windows XP or above |
| Power | 10KW,~380V,50HZ | 8KW,~380V,50HZ | 8KW,~380V,50HZ |
| Total Weigh(kg) | 2800 | 2350 | 2500 |
| Block Size(max mm) | 2500*2000*1200 | 2500*2000*1200 | 2500*2000*1200 |
| Dimension(mm) | 6000*3450*2600 | 6000*3450*2600 | 6000*3450*2600 |
Packing&Shipping:
Quality Certificate:
Why choose HAIEN:
Since 2002, being the leading manufacturing CNC automatic foam cutting machine in China, HAIEN offers the highest price performance foam cutting machine. Every Hison product was marked as economic, environmental and easy maintenance.
With 12 years history in the industry, HAIEN built a high reputation in South America, Eastern Europe, Southeast Asia, and Oceania regions. The HAIEN NC EQUIPMENT MANUFACURING CO.,LTD won the customers for our good service and advenced technolog.
welcome to HAIEN!
