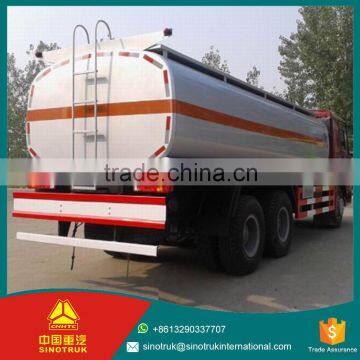

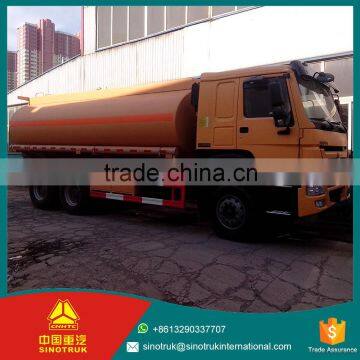

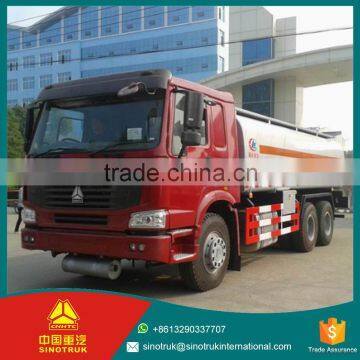

SINOTRUK HW76 Cab 6*4 asphalt bitumen tank truck

Product Name

Sinotruk howo asphalt bitumen tank truck 20CBM

Driving Type

 6×4,left hand drive

Chassis model

ZZ1257N4647C

Weights

Payload (kg)

24000

Curb weight(kg)

12400

Dimensions

Wheelbase(mm)

4600+1350

Overall Dimension(mm)

9800×2500×3200

Box dimension

20CBM

 Max speed(km/h)

80

Engine

 Engine model

WD615.95E (336HP)

Engine type

4 stroke water-cooled,inter-cooling

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726L

Max. output (kw)

247kw

 Drive Line

Transmission

HW15710,10 forwards,2 reverse gear,HW76 Cab

Steering

ZF8098,With power steering

Brake system

Air brake

Cab

Cab

HW76

Standard configuration

Full steel skeleton structure, covered with double layer steel plate;Can be tipped forwardly; with A/C;shock-absorbers

Whole instrument desk, digital meters,and so on

Axle

Front axle

HF7

Rear axle

HC16

Tire specification

Tire specification

12.00-20 standard tire,10 tires+1 spare tire

Specification fuction of water truck

Tanker shape

Ellipse water tanker

Tanker material

Q235,carbon steel

Tank compartments

4 compartments

Manhole

Man way access hole on top of tank;1 units DN500mm manhole

Man walk way

With skid resistance man walk way on top of tank

Horse reels

Two 75 ft hose reels at each side of the truck

Pump

Oil pump
