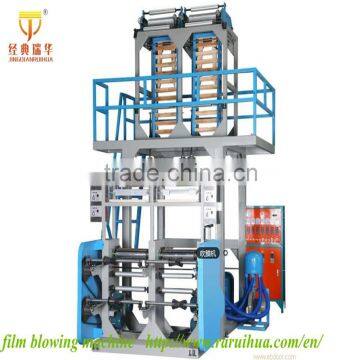

low pressure film blowing machine
Characteristics:
1.Suitable for produce agriculture film of 100% LLDPE or LLDPE
mix with other raw material
2.Adopt the most newly advanced technology as heat flow way,
extrude to shape film,special for mulch air ring
3.Has lots of advantage like design science,operate and maintain conveniently,stably performance.
4.Has the character of good plasticize, high physical and mechanical performance,strong tear resistance.
Main Technical Variables:
MODEL |
SD/L-65B |
SD/L-80B |
SD/L-100B |
SD/L-120B |
SUITABLE MATERIAL |
LDPE LLDPE |
|||
FILM WIDTH(mm) |
800-1500mm |
1000-2000mm |
1500-2500mm |
1800-3000mm |
FILM THICKNESS (mm) |
0.015-0.15mm |
0.015-0.15mm |
0.015-0.15mm |
0.015-0.15mm |
MAX.EXTRUSION OUTPUT |
150kg/hr |
280kg/hr |
350kg/hr |
450kg/hr |
EXTRUDER | ||||
SCREW DIAMETER(mm) |
φ65 |
φ80 |
φ100 |
φ120 |
SCREW L/D LENGTH |
28:1 |
|||
SCREW MATERIAL |
SACM-645/38 CRMOALA |
|||
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
|||
CYLINDER COOLING |
550W×3 |
550W×3 |
750W×4 |
750W×4 |
DRIVING MOTOR(Kw) |
37 Kw |
55 Kw |
90 Kw |
110 Kw |
TEMPERATURE CONTROL |
4 |
4 |
5 |
5 |
AVERAGE POWER-CONSUME(Kw) |
45 Kw |
65 Kw |
90 Kw |
110 Kw |
TYPE OF DIE | ||||
DIE SIZE(mm) |
φ350/400 |
φ400/500 |
φ500/600 |
φ700/800 |
TEMPERATURE CONTROL |
3 |
4 |
4 |
5 |
AIR RING |
1 |
|||
AIR BLOWER(Kw) |
5.5 Kw |
5.5 Kw |
11 Kw |
15 Kw |
TAKE-UPUNIT | ||||
PINCH ROLLER (DIA. WIDTH)mm |
φ165×1600 |
φ190×2100 |
φ220×2600 |
φ220×3200 |
TAKE-UP SPEED(m/min) |
5-60 m/min |
5-60 m/min |
5-60 m/min |
5-40 m/min |
TAKE-UP MOTOR(Kw) |
1.5 Kw |
2.2 Kw |
2.2 Kw |
2.2 Kw |
WINDING UNIT | ||||
TYPE |
SURFACE FRICTION TYPE |
|||
WINDING MOTOR(Kw) |
1.5 Kw |
1.5 Kw |
2.2 Kw |
2.2 Kw |
WINDING SPEED(m/min) |
5-60 m/min |
5-60 m/min |
5-60 m/min |
5-40 m/min |
COVER DIMENSION(L×W×H) |
6.8×2.6×7.0m |
7.5×3.2×7.5m |
9.0×4.2×10m |
11×5.0×11.5m |
Technical Parameters are subject to change without prior notice!
Our Service
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words,your satisfication is our persuit forever!
