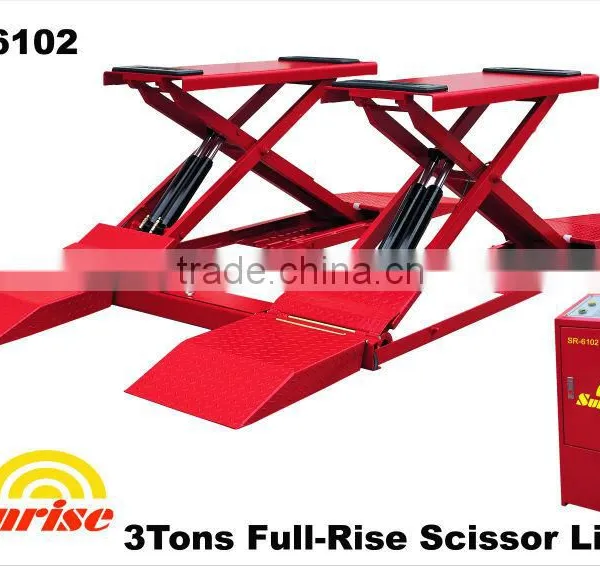

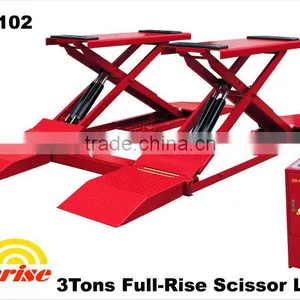

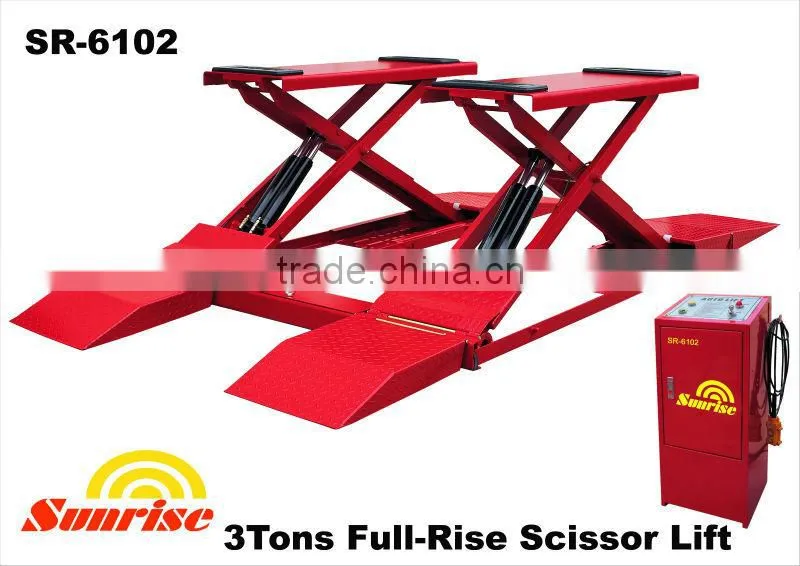

SR6102 Scissor Car lifter
Feature:
1. Rigid connection between two platform ensure synchronization
2.Surface mounted 115mm to ground when installed
3.All the chromeplate cylinders are imported from Italy.
4. All the motor pumps are from Taiwan.
5.Inside of cylinder assy has the special treatment and make sure that does not leak oil.
6.24V control system and limited switch
7.While switch is addedary ,it is controled long distantly.

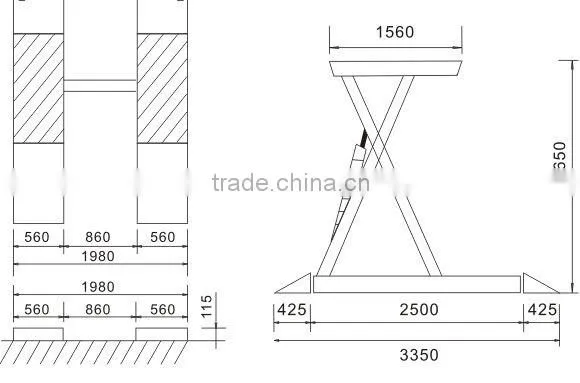

Specification:
Load capacity: |
3 Ton |
Max.lifting height: |
1650 mm |
Min height: |
184 mm |
Length of Platform: |
3350 mm |
Width of Platform: |
560 mm |
Width between platforms: |
1980 mm |
Power supply: |
AC380V.50Hz |
Raise Time: |
12 S |
Power |
1.5 kw |
