Hydrauic Single Post Car Lift/parking Lift System

Hydrauic Single Post Car Lift/parking Lift System thumbnail-1
Hydrauic Single Post Car Lift/parking Lift System thumbnail-2
Hydrauic Single Post Car Lift/parking Lift System thumbnail-3
Hydrauic Single Post Car Lift/parking Lift System photo-1
Hydrauic Single Post Car Lift/parking Lift System photo-2
Hydrauic Single Post Car Lift/parking Lift System photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Design:
Single Post
Type:
One Cylinder Hydraulic Lift
Certification:
CE
Contact Supplier Request Quote Chat Now
Zhongshan Sunrise Auto Service Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHUHAI JIUZHOU PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Design Single Post
Type One Cylinder Hydraulic Lift
Certification CE
Lifting Capacity 4000 kg
Lifting Height(mm) 1800 mm
Overall Width(mm) 1840 mm
Place of Origin Guangdong, China
Brand Name sunrise
Model Number SR-338H
Warranty 12 Months

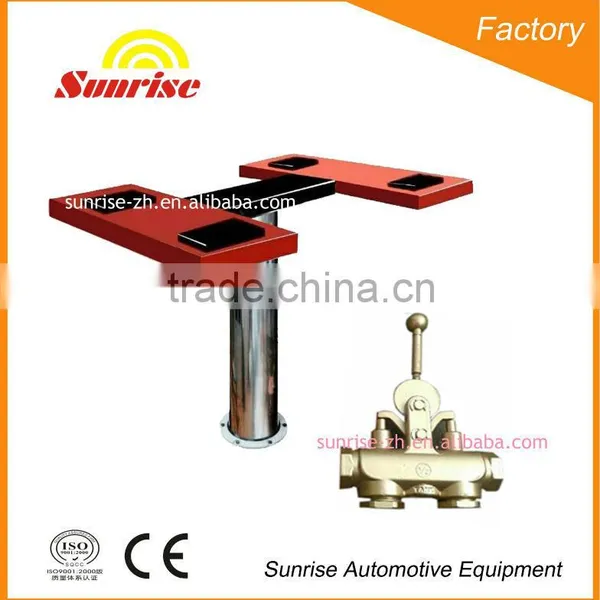

Hydrauic single post car lift SR-338H :



Features:


1. In ground lift installation, saving space



2. Need not power supply, only need to connect 5bar ~ 8bar high pressure air source can be used,

Lifting weights up to 2.5T ~ 4T (inlet pressure higher, the higher the weight lifting)


3. The body and cylinder anti-corrosion and anti-rust, chrome-plated, can be used in water,

The body can be installed directly in the ground, the soil back fill, 30mm thick on the ground do

 the hardened layer without doing waterproofing work.


4. Hydraulic buffering insurance, lift smoothly, with not lift shock, two side imbalance, There will

be no the risk of vehicle sudden drop, compared to other types lift more secure.



5. The upper part of the cylinder support frame can be rotated 360 °.


6. After installation do not take up floor space, can improve the utilization rate per unit area, low

maintenance, and luxurious. Maintenance need only replace the seals.Very simple.

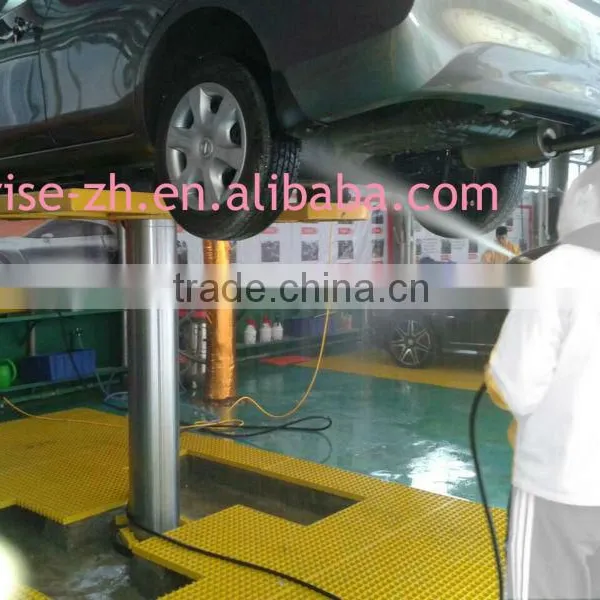

7. Particularly suitable for car wash, the vehicle chassis cleaning.



8. Lifting height can reach more than 1800mm





Specifications:



Capacity:

3.5Ton

Rise:

1800mm

Plunger diameter:

270mm

Recommended Bay size:

3050m×7400m

Air operator:

5-8 Bar

G.Weight:

700 KG
