L5A-373TT High Brightness 40W led light panel / led panel light price CE ROHS FCC DLC UL ERP TUV CERTIFICATION led panel light
1. 60W 5400Lumens Ra>80
2. 3 years warranty
3. best price,factory directly
4. Super slim 9.8mm
5. Beautiful appearance, elegant, lightweight
6. Energy saving and low power consumption
7. Safe and easy for installation and maintenance
8. Instant start, no flickering ,no humming
9. Special different view angles, mixing lighting design
10. Absolutely thin, Light body thickness of only 11.5MM
11. New design for diversified environment application
12. Special different vision angle, the design diversification.
13. No infrared rays, no ultraviolet radiation, no thermal effect
14. Lighting comes all around into light guide panel, more efficient dissipation
Model No. |
L5A-373 |
Input voltage & Frequency |
AC85-264V 50/60Hz |
Dimension |
1196x596x9.8mm |
Light efficiency |
82 lm/w |
Luminous flux |
5300lm |
Color temperature |
4000K Pure White |
Weight |
5.6KG(including LED driver 0.48KG) |
Power factor(PF) |
≥0.95 |
Color rendering index(CRI) |
>80 |

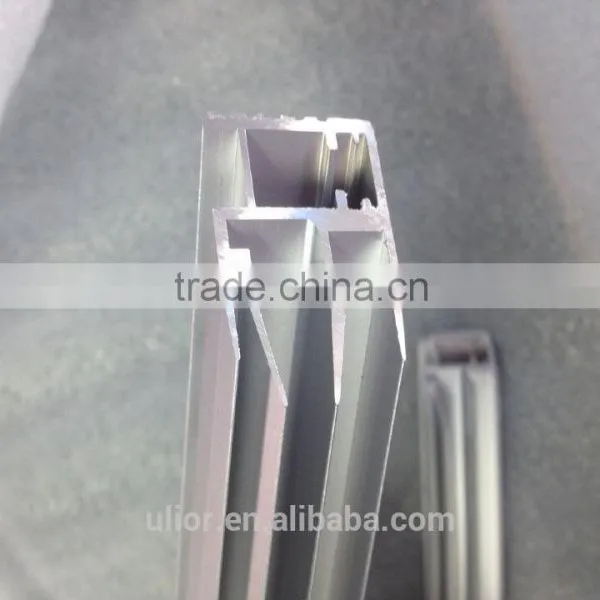

Material of frame |
Aluminum alloy |
Life span |
50,000 hours |
IP Rating |
IP44 |
Certificates |
CE, RoHS, FCC, DLC |
Warranty |
3 years |

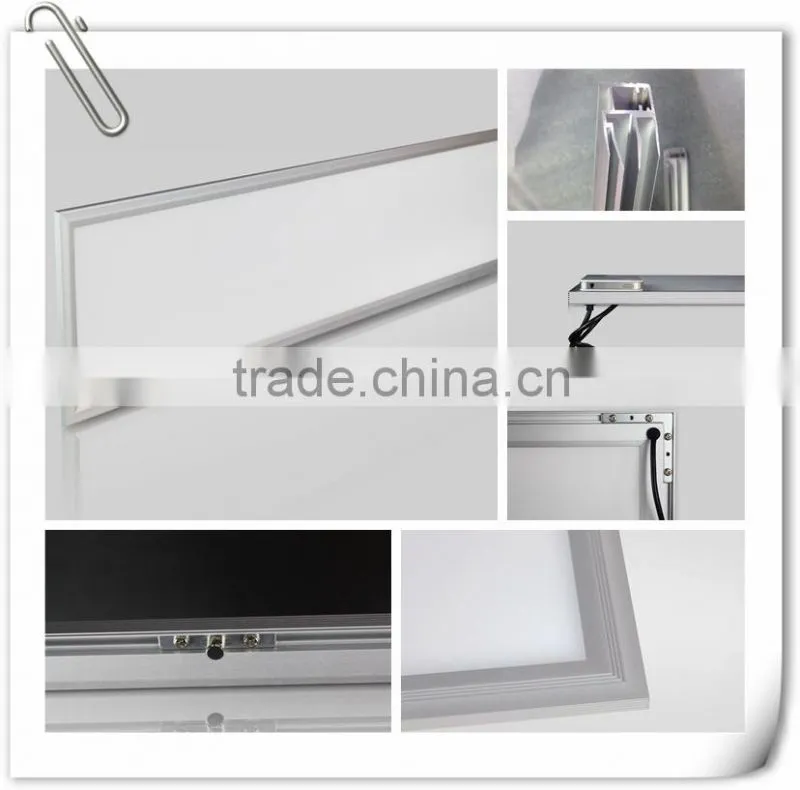

1. Surface Treatment: Very smooth surface achieved by advanced powder coating technology, this makes aluminium body with an excellent anti fading effect;
2. Guide & Diffuser Plate: High quality light guide plate gets the light transmission rate up to 95%, Superior diffuser plate ensure 100% no dark spot, also make the light even and light;

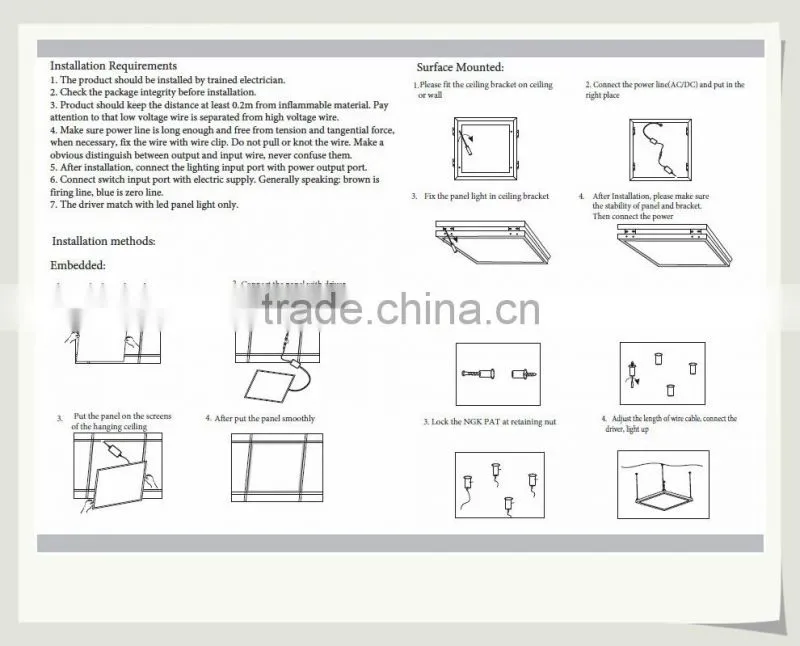

Electrical Connection Install instruction:
1. Turn off the power switch.
2. Connect the output-terminal with utility power(AC 100-240V) by using wiring unit, make certain that no copper wire is bared;
3. Connect the output -terminal DC plug of current driver with the lamp’s DC plug, insure this connection secure.
4. Fix the lamp and current driver to the suitable place by convenient installation.
5. Turn on the power switch.

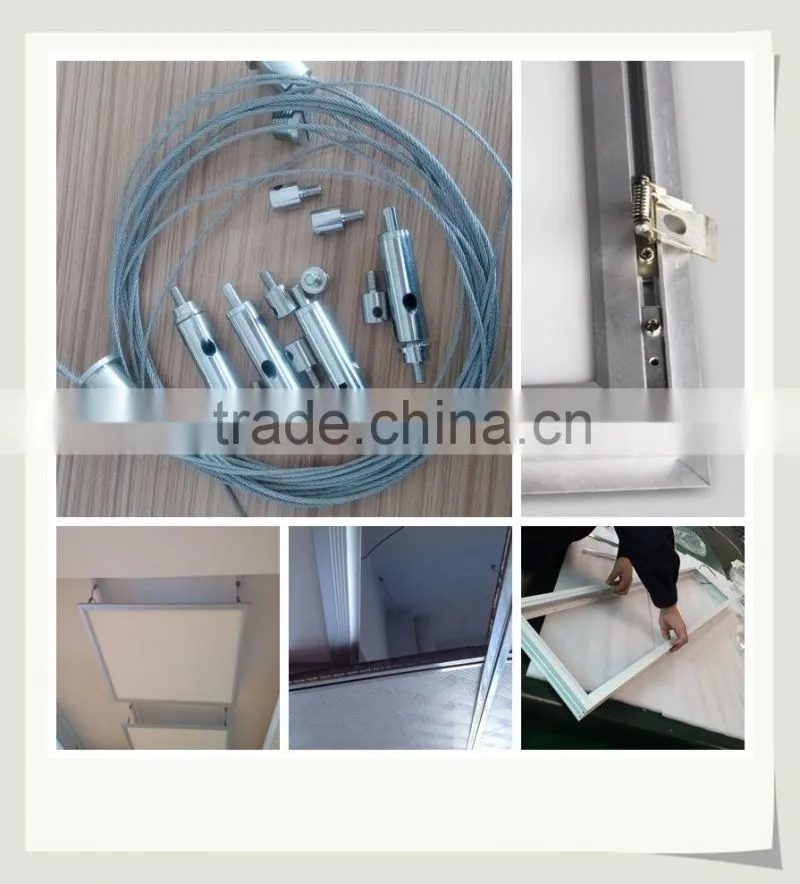

We suggest you installate our led panel light the following three ways.
Surface Mounted
Recessed Installation
Lifting Installation

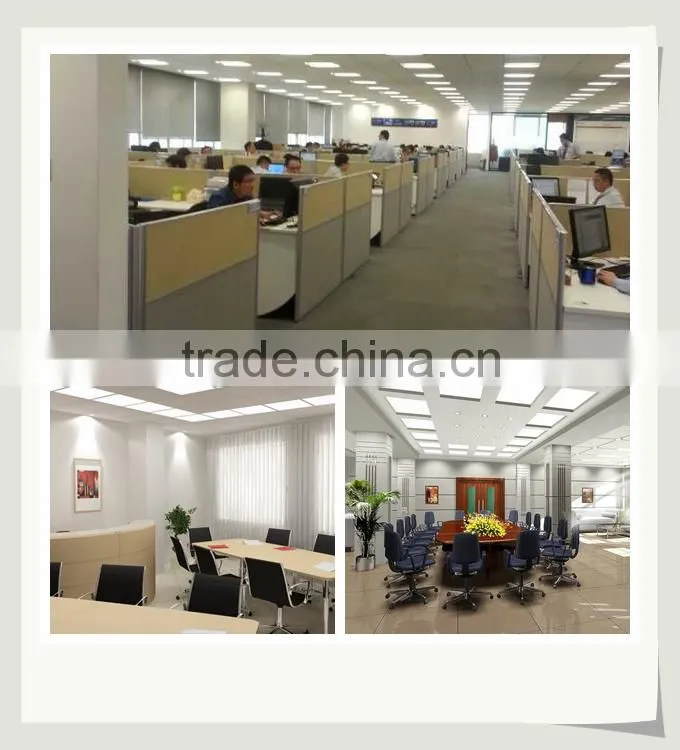

LED PANEL LIGHT have wide application.
It can be used in place where energy saving and high color rendering index lighting required.Such as airport, bedroom, parking, church, cinema, hospital, meeting room, hotel, museum, office, kitchroom, school, shopping mall and places where energy saving and high color rendering index lighting are need .
COMMERCIAL LIGHTING: Office Supermarket Hotel Exhibition hall etc
PUBLIC LIGHTING: Residence Library hospitals School MTR station Train station etc;
INDUSTRIAL LIGHTING: Factory

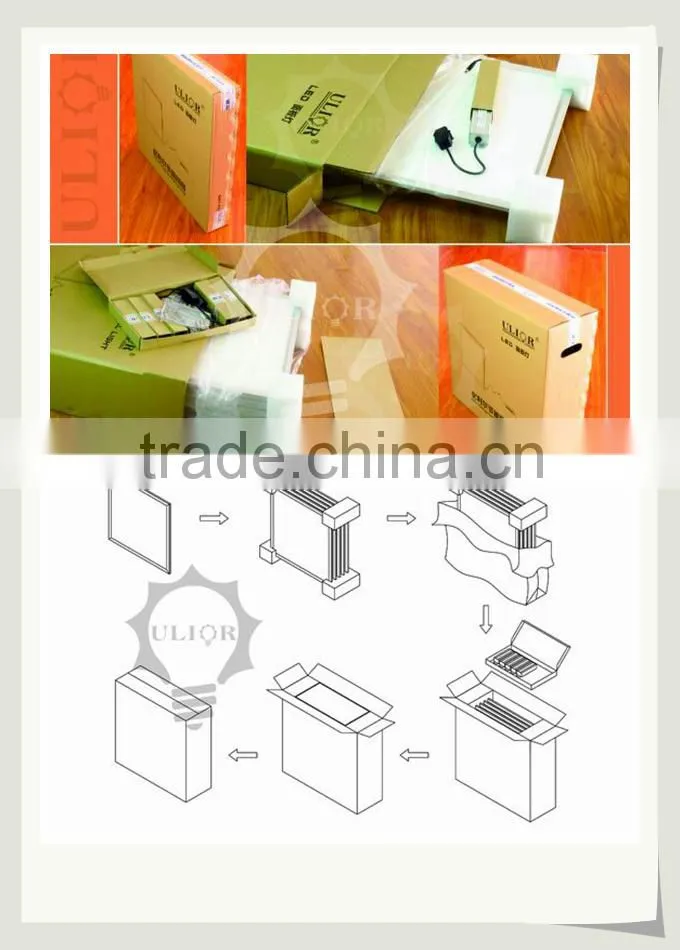

1. All dimension units are millimeter. 5pcs inner boxes in one carton.
2. OEM the package as you required .
| Sample Packing List | |||||
| No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
| 1 | P15-373 Panel Light | 5.12 | 1 | 5.12 | |
| 2 | Power Driver | 0.48 | 1 | 0.48 | |
| 3 | Hanging Kits | 0.14 | 1 | 0.14 | Optional |
| 4 | Driver Kits | 0.04 | 2 | 0.08 | Optional |
| N.W.(Kg) | 5.78 | ||||
| G.W.(Kg) | 6.08 | ||||
| Bulk Packing List | |||||
| No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
| 1 | P15-373 Panel Light | 5.12 | 5 | 25.60 | |
| 2 | Power Driver | 0.48 | 5 | 2.40 | |
| 3 | Hanging Kits | 0.14 | 5 | 0.70 | Optional |
| 4 | Driver Kits | 0.04 | 10 | 0.40 | Optional |
| N.W.(Kg) | 28.90 | ||||
| G.W.(Kg) | 30.40 | ||||
For samples or orders, we usually deliver by FEDEX, DHL, UPS, TNT or by air transportation, if more than 40 cartons, we recommend economic sea shipment. Also can be customized.
You can also scan our other led panel light parameters, then choose the best for youslef.
| Model | Power(W) | Flux(lm) | Lamp Size(mm) | Voltage(V) | Color Temperature | CRI |
| P15-351 | 40 | 3700 | L596*W596*H9.8 | AC85-264V | 5500K | Ra>80 |
| P15-355 | 40 | 3500 | L596*W596*H9.8 | AC85-264V | 4000K | Ra>80 |
| P15-354 | 40 | 3300 | L596*W596*H9.8 | AC85-264V | 3000K | Ra>80 |
| P15-352 | 40 | 3400 | L596*W596*H9.8 | AC85-264V | 5500K | Ra>80 |
| P15-356 | 40 | 3300 | L596*W596*H9.8 | AC85-264V | 4000K | Ra>80 |
| P15-360 | 40 | 3100 | L596*W596*H9.8 | AC85-264V | 3000K | Ra>80 |
| P15-353 | 40 | 6200 | L596*W596*H9.8 | AC85-264V | 5500K | Ra>80 |
| P15-357 | 62 | 6000 | L1196*W596*H9.8 | AC85-264V | 4000K | Ra>80 |
| P15-361 | 62 | 5600 | L1196*W596*H9.8 | AC85-264V | 3000K | Ra>80 |
