Home > Products > Microwave Control Led Panel Lighting > P1-126 Shenzhen Ulior New design CE RoHS FCC DLC listed led panel lighting Up to 115lm/w for Commercial and Housing led lamp

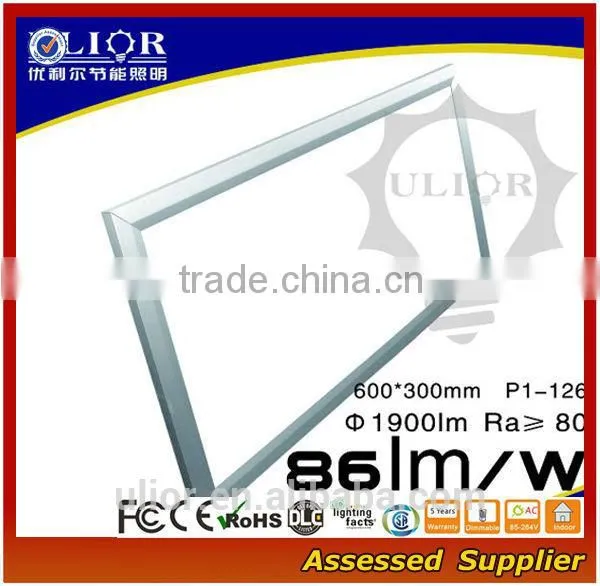

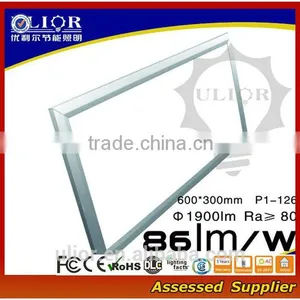

P1-126 Shenzhen Ulior New design CE RoHS FCC DLC listed led panel lighting Up to 115lm/w for Commercial and Housing led lamp
- 50000 Piece / Pieces per Month
- Shenzhen/ Shanghai/ HK/ Tianjin
- T/T Credit Card PayPal
You May Like
-
New design microwave and emergency led panel light 600x600mm ceiling mounted lamp
-
P10-318AB 2014 hot sale environment friendly warm white, pure white, cool white 40W 72W led panel light parts
-
P2-107 New product for 2015 square led panel kitchen light
-
3 years warranty ultra thin dimmable TUV led pendant light
-
P2-140SI Factory NEW products led panel 22/ 30/ 34/ 35/ 40/ 50/ 65/ 80W 1200x600 led panel
-
P1-110UI 2014 New Square ceiling flat ultra thin 1200x300 led panel light, 36W / 40W / 50W / 60W panel led lighting for housing
Product Details
LED Light Source | Everlight 5630 | Warranty(Years) | 3 | |
Input Voltage(V) | AC85-264 | Lamp Power(W) | 22 | |
Lamp Luminous Flux(lm) | 1900 | Lamp Luminous Efficiency(lm/w) | 86 | |
Color Temperature(CCT) | Pure White | Working Temperature(℃) | -20, 60 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
IP Rating | IP54 | Certification | BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE | |
Place of Origin | Guangdong, China | Brand Name | Everylight, Ulior | |
Model Number | P1-126 |
Product Description
P1-126 Shenzhen Ulior New design CE RoHS FCC DLC listed led panel lighting Up to 115lm/w for Commercial and Housing led lamp
1. 86lm/w
2. High-brightness
3. 3years warranty
4. Super slim only 11.5mm
Model No. | P1-126 |
Input voltage & Frequency | AC85-264V 50/60Hz |
Dimension | 596x296x11.5mm |
Light efficiency | 86 lm/w |
Luminous flux | 1900lm |
Color temperature | 5500K Pure White |
Weight | 4.8KG(including LED driver 0.48KG) |
Power factor(PF) | ≥0.95 |
Color rendering index(CRI) | >80 |
Material of frame | Aluminum alloy |
Life span | 50,000 hours |
IP Rating | IP54 |
Certificates | CE, RoHS, FCC, DLC |
Warranty | 3 years |
1. Beautiful appearance, elegant, lightweight
2. Energy saving and low power consumption
3. Safe and easy for installation and maintenance
4. Instant start, no flickering ,no humming
5. Special different view angles, mixing lighting design
6. Absolutely thin, Light body thickness of only 11.5MM
7. New design for diversified environment application
8. Special different vision angle, the design diversification.
9. No infrared rays, no ultraviolet radiation, no thermal effect
10. Lighting comes all around into light guide panel, more efficient dissipation
If you will choose the lifting installation, we will provide you the optional led panel light chargeable accessories.
We suggest you installate our led panel light the following three ways.
Surface Mounted
Recessed Installation
Lifting Installation
Our led panel lighting test report.
We have get CE, FCC, ROHS, DLC certification, if you need other certification, we also can pass the certification.
LED PANEL LIGHT have wide application.
It can be used in place where energy saving and high color rendering index lighting required.Such as airport, bedroom, parking, church, cinema, hospital, meeting room, hotel, museum, office, kitchroom, school, shopping mall and so on.
COMMERCIAL LIGHTING: Office Supermarket Hotel Exhibition hall etc
PUBLIC LIGHTING: Residence Library hospitals School MTR station Train station etc;
INDUSTRIAL LIGHTING: Factory
Use ULIOR logo package, 2 PCS or 5PCS in a Carton,
OEM the package as you required.
Neutral package
Sample Packing List | |||||
No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
1 | P1-126 Panel Light | 6.02 | 1 | 6.02 | |
2 | Power Driver | 0.48 | 1 | 0.48 | |
3 | Hanging Kits | 0.14 | 1 | 0.14 | Optional |
4 | Driver Kits | 0.04 | 2 | 0.08 | Optional |
N.W.(Kg) | 6.68 | ||||
G.W.(Kg) | 8.87 | ||||
Bulk Packing List | |||||
No. | Item Name | Weight(Kg) | Quantity | SUM(Kg) | Memo |
1 | P1-126Panel Light | 6.02 | 5 | 30.1 | |
2 | Power Driver | 0.48 | 5 | 2.38 | |
3 | Hanging Kits | 0.14 | 5 | 0.71 | Optional |
4 | Driver Kits | 0.04 | 10 | 0.42 | Optional |
N.W.(Kg) | 33.61 | ||||
G.W.(Kg) | 37.19 |
For samples or orders, we usually deliver by FEDEX, DHL, UPS, TNT or by air transportation, if more than 40 cartons, we recommend economic sea shipment. Also can be customized.
You can also scan our other led panel light parameters, then choose the best for youslef.
Model | Power(W) | Flux(lm) | Lamp Size(mm) | Voltage(V) | Color Temperature | CRI |
P1-125 | 18 | 1600 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
P1-126 | 22 | 1900 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
P1-127 | 18 | 1250 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
P1-128 | 22 | 1450 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
P1-129 | 18 | 1600 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
P1-130 | 22 | 1900 | L596*W296*H11.5 | AC85-264V | 5500±200K | Ra>80 |
P1-131 | 18 | 1250 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
P1-132 | 22 | 1450 | L596*W296*H11.5 | AC85-264V | 2800±200K | Ra>80 |
