CNC CO2 Wallpaper Cutting Machine

Name: CNC CO2 Wallpaper Cutting Machine
Brand: JQ Laser
Availability: InStock

FOB Price

US$ 2,500 - 3,500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Laser Type	CO2
Applicable Material	Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Cutting Thickness	0~18mm
Cutting Area	1300mmx900mm	Cutting Speed	0~60000mm/min
CNC or Not	Yes	Cooling Mode	Water Cooling
Control Software	Power cut	Graphic Format Supported	AI, BMP, DST, DXF, PLT
Place of Origin	Shandong, China	Brand Name	JQ Laser
Model Number	JQ1390	Certification	CE, ISO, SGS, Other, CE, ISO, SGS, FDA
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train. We can transport machine by boat or by training, according to your requirement.

Product Description

First-class technology

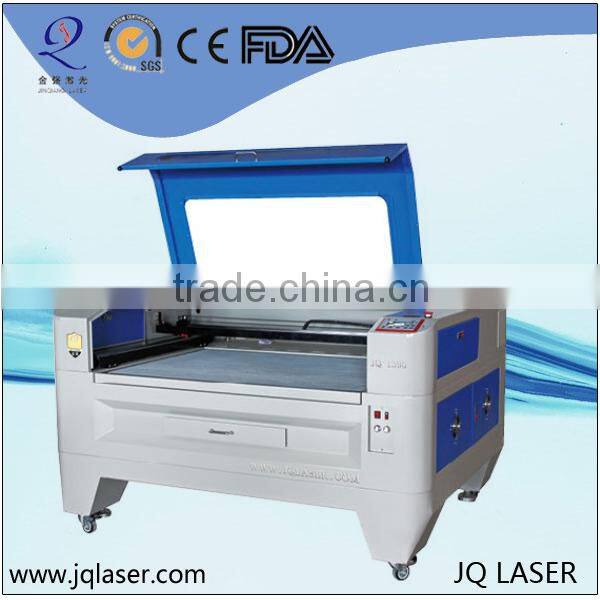

JQ1390 Laser Cutting&Engraving Machine

*Machine brief of cnc laser cutting machine

JQ1390 is suitable to professional user for cutting performance in garment, car, leather, cloth toy, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration ,building upholster, package, printing, paper product and other industries.

*Product Parameters

* Model	JQ1390 laser cutting machine
*Laser-type	Sealed CO2 laser tube, water-cooled, water chiller CW5200
* Laser-power	60W, 80W, 100W, 150W RECI brand
* Working area	1300mm x 900mm
* Engraving speed	0-6000cm/min
*Cutting speed	0-5000cm/min
*Repeating location	≤±0.01
*Transmission type	Belt Transmission
*Graphic format supported	BMP, HPGL(PLT), JPEG, DXF,AI, DST
* Software supported	CorelDraw, Photoshop, AutoCAD, Tajima
* Driving system	Belt and stepper motor
* Communication connection	USB(Off-line)
* Working voltage	220V±10% 50HZ, or 110V/60HZ
* Optional parts	Rotary device, Up-down worktable

*Applicable materials

Material	Engraving	Cutting
Wood	O	O
Acrylic	O	O
Cloth	O	O
leather	O	O
rubber	O	O
MDF	O	O
PVC	O	O
Sheet	O	O
paper	O	O
Double color	O	O
Plywood	O	O
Balsa	O	O
Cork	O	O
Twill	O	O
Plastic	O	O
Wood veneer	O	O
Delrin	O	O
die board	O	O
Mat board	O	O
Mylar	O	O
Glass	O
Tile	O
Jade	O
Stone	O
Coated Metals	O
Slate	O

*Machine features of cnc laser cutting&engraving machine :

1.Adopt taiwan Hiwin Linear motion guide, ensuring the laser head is moving smoothly, fast and stable. Small cutting kerf, high cutting speed and accuracy guarantee the equipment’s precision and lifetime, which can make delicate and complicated designs on acrylic, wood and PVC and so on for the advertisement, handicraft industries etc.
2. Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, safety and effectiveness.
3. Adopting the strip shape platform, which can bear heavier materials such as organic glass, wood and so on.
4. Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost. Some parts are imported and more durable like the rails, motors, etc.
5. Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments
manufacturing industry for years, extending the life of the laser tube.
6. This machine uses USB port to transmit data, equipped with largecapacity internal memory,
improving working speed and efficiency greatly.
7. Scientific ventilation equipments, high power exhaust fan and strong honeycomb worktable play a vacuum adsorption, which can make the soft material very flat.

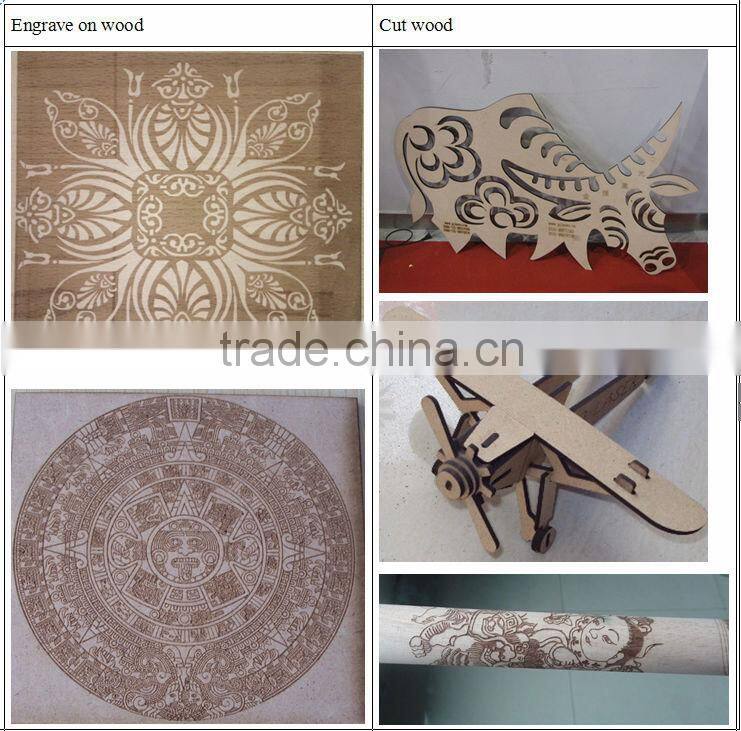

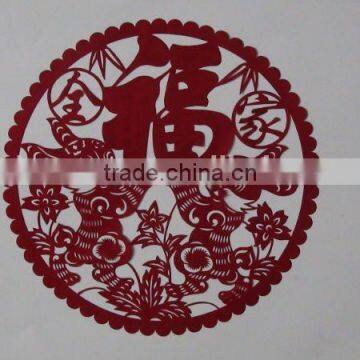

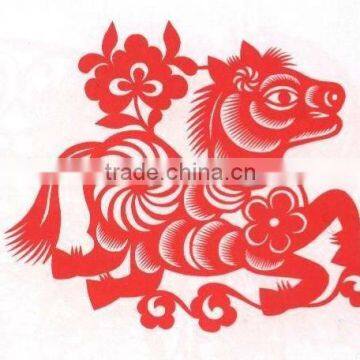

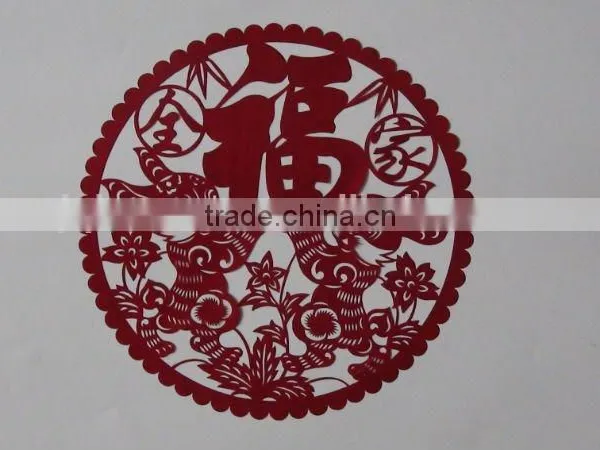

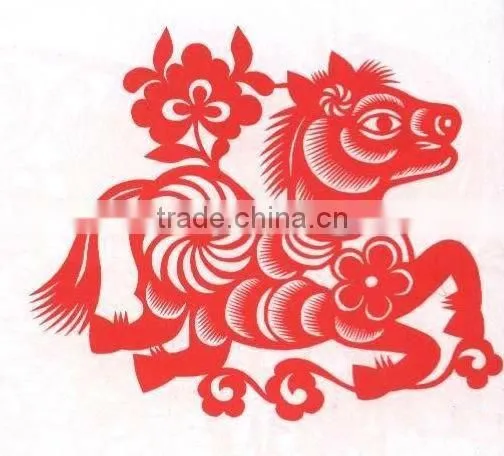

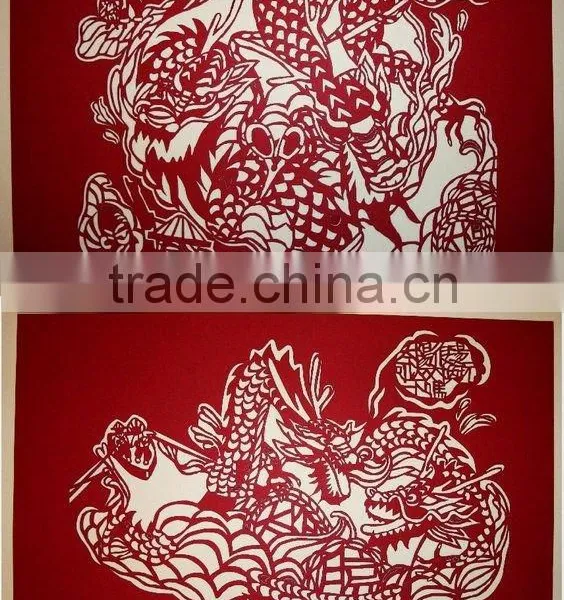

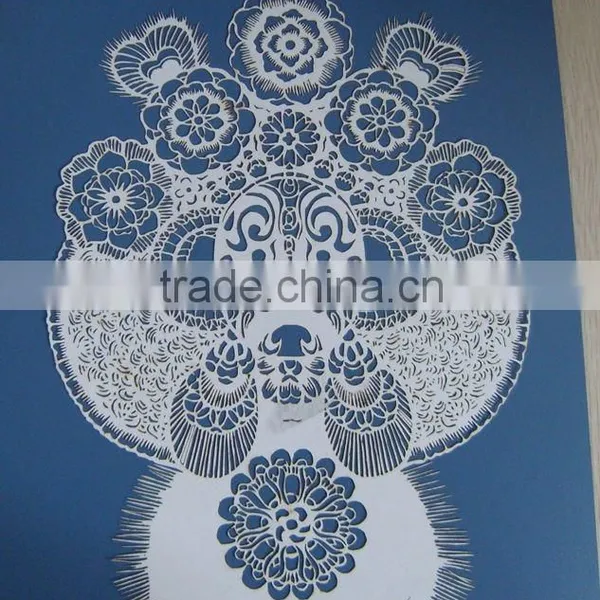

*Sample pictures

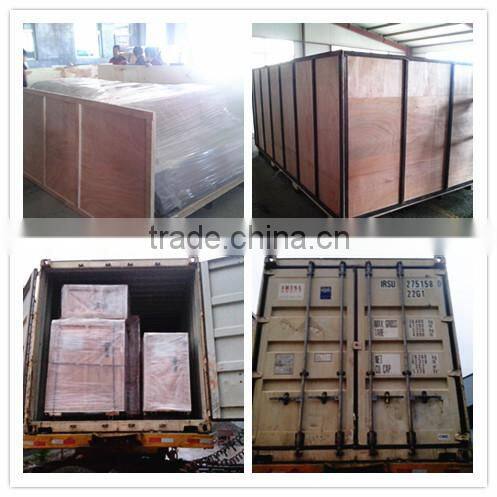

Packaging & Shipping

Our Services

*Guarantee and after sale service:

*2 year guarantee for whole machine; 8 months for laser tube and mirrors

*24 hours technical calling or e-mail service for any technical questions of our machine

*We offer detailed User Manual for machine installation, operation, and also for Software

Company Information

About us - Jinan JinQiang Laser CNC Equipment CO., LTD

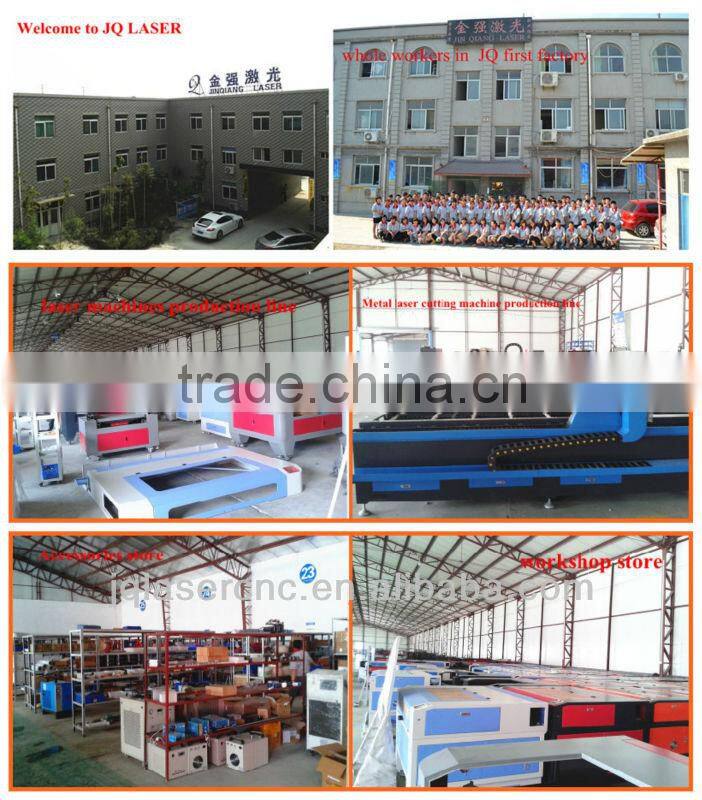

*Workshop & Showroom

Workshop is the product of intense laser manufacturing center gold, bear manufacturing various types of laser equipment. Factory workshop area of 5075 square meters, the plant’s existing staff of 46 people, including management staff4, the worshop has three steps, the 10 team composition, with annual production of non-metallic series 4030, 6040, 9060, 1290, 1390, 1490,; cutting 1325, 1525, 1530, 1610, 1630; metal series 1325-YAG, 1325-fiber, 1530-fiber and other conventional and non-standard laser annual output of 3,000 sets of CNC equipment manufacturing capacity.

*Exhibition in whole world

We participated in many international exhibitions, for example: Shanghai Exposition, Beijing Exhibition, Munich Exposition in Germany.

FAQ

1. Q:Are you a factory or trading company?

A: We are a factory

2. Q:Where is your factory located? How can I visit there?

A:Our factory is located in Jinan City, Shandong Province, China, about 4 hours train from Shanghai.

All our clients, from home or abroad, are warmly welcome to visit us!

3. Q:How can I get some samples?

A: We are honored to offer you samples.

4. Q:How does your factory do regarding quality control?

A:Quality is priority. JQ people always attach great importance to quality controlling

from the very beginning to the very end.

Our products have gained CE, FDA authentication.

********************************************************

We also provide other laser machine with different working area and different function,

there must be a right machine for you:

Laser cutting and engraving machine: JQ4030, JQ6040, JQ9060, JQ1060, JQ1290, JQ1390, JQ1490, JQ1412, JQ1318, JQ1325, etc.

Laser marking machine: JQ80W-CO2 glass tube. JQ30W-CO2 metal tube, JQ50W-Diode side-pump, JQ20W-Fiber, etc.

Metal laser cutting machine: Fiber-1000W, Fiber-500W,Fiber-300W, Fiber-200W, YAG-500W, etc.

Company Profile

Jinan Jinqiang Laser CNC Equipment Co., Ltd.

Jinan JinQiang Laser CNC Equipment Co.,Ltd was established in 2004, located in the beautiful "Spring City" Jinan. It is one of the most influential laser equipment manufacturers in China. JQ Laser Company is good at researching and developing, which have more than 20 scientific researchers with master's degree and establishes the cooperation relations with several famous universities. Since 2004, we have successfully developed a number of laser equipment, and several products have got invention patents. We have founded branch offices in Beijing, Shanghai, Guangzhou, etc. for marketing and after-sale service. With market needs, we have manufactured more than 50 kinds of laser equipment, including TELE series metal laser cutting and marking machines (including fiber laser cutting machine, fiber laser marking machine, YAG metal laser cutting machine, YAG metal laser marking machine, CO2 metal laser cutting machine), and other high speed laser engraving and cutting machine, stone laser engraver, fabric laser engraving and cutting machine, glass laser engraver, high precision ball screw laser cutter, die board laser cutter, etc. They are widely applied in metal cutting and marking, advertising, arts and crafts, perspex, model, carton printing, electrical appliances, instrument, decoration, furniture, die cutting, etc. JQ Company constantly pursues the faith of "GOLDEN QUALITY, ADVANCED TECHNOLOGY". Executed by reliable quality and perfect after sale service system, JQ Laser products got favorable sales success, outstanding reputation and popularity in more than 70 countries and areas. Our products have been sold to a great deal of countries from USA, UK, Canada, Mexico, Australia, Brazil, Germany, France, Korea, Singapore, Turkey, Egypt, Lebanon, Syria, Serbia, Malaysia, India to world wide. Selecting JQ, the world will become yours.
