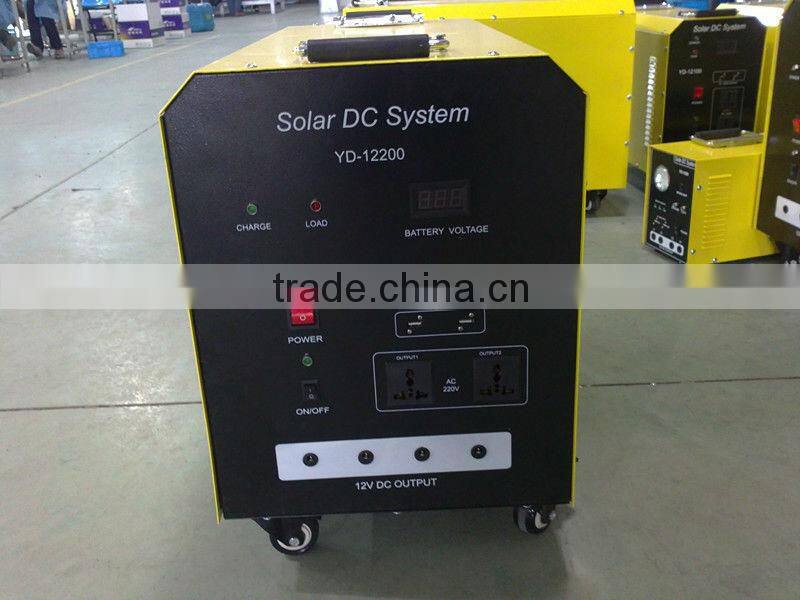

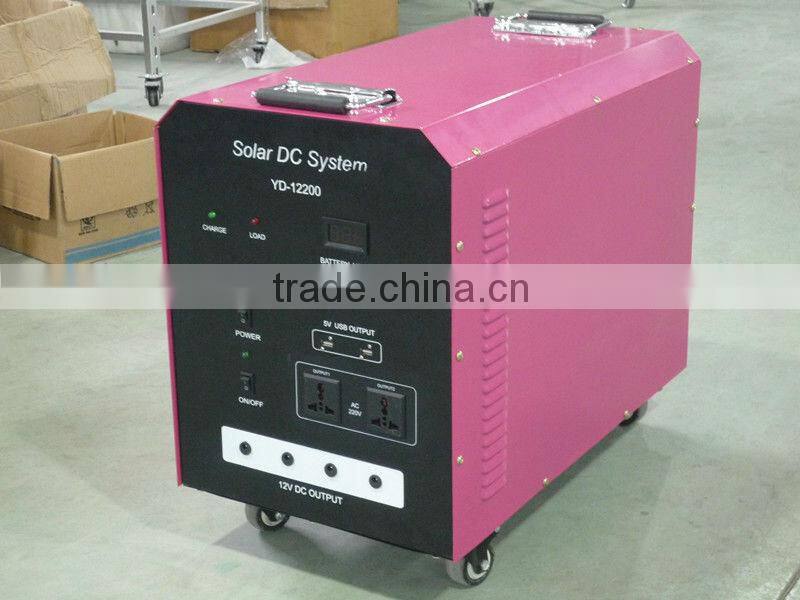

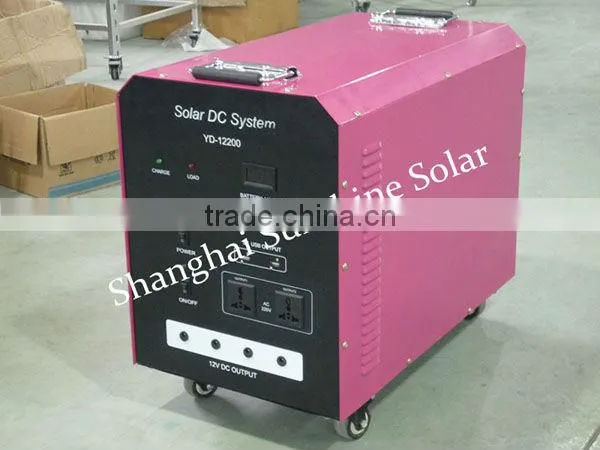

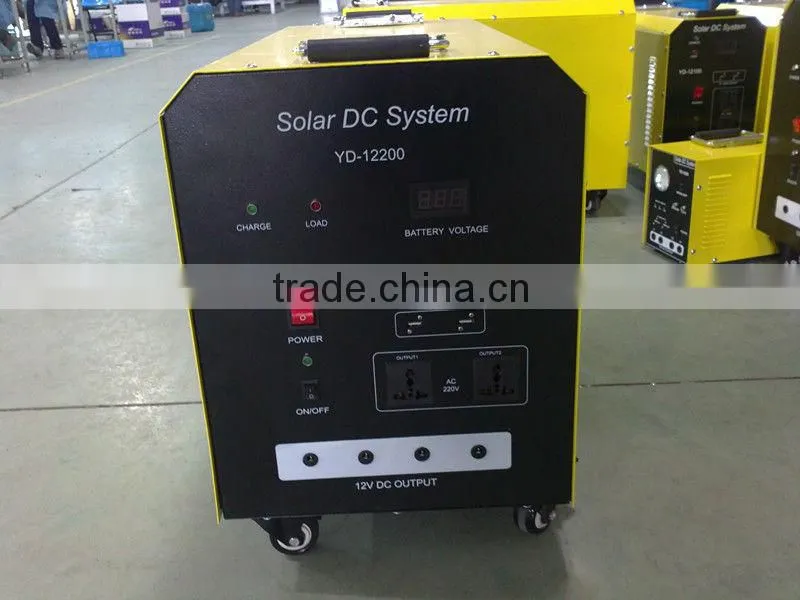

Portable solar home power system
solar panel 240W with 5m cable&2pcs 3W led light&control box& free maintain 100ah battery
off-grid PV power
Features:
♣Environmentally friendly:use sola energy for charging
♣ Various of output:support AC220v/110v.DC 12v,USB 5v voltage output
♣ Light and easy to carry:smart and easy to carry
♣ Various of Interfaces:Interfaces simple and convenient to operate
♣ Alternate charging method:also can be charge via grid
♣ Nice&Fashion
♣ Plug and play:Overall system interface standardization,direct power supply.eliminating the need for complicated wiring process
Input voltage:12V/24V DC+sunlight
Output voltage :5V USB+12V LED DC +220V AC

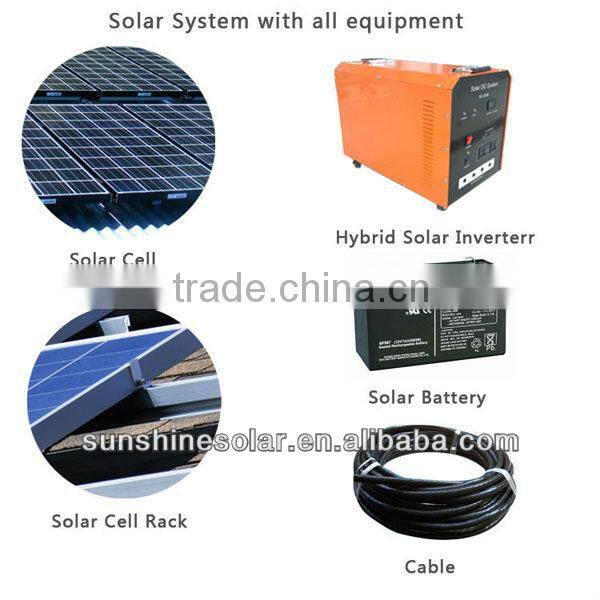

System contains:batteries,inverters, solar controllers,cables,sockets and other integrated as one
2 pcs USB port,4pcs 12V DC light socket, and with two 220 V AC sockets
It can have AC output and DC output at the same time,they will not interfere with each other.
Mutual support of city grid and solar power
Charging time: About 15 hours (by solar panel in sunny conditions);
Can guarantee that two consecutive rainy days of normal power supply.

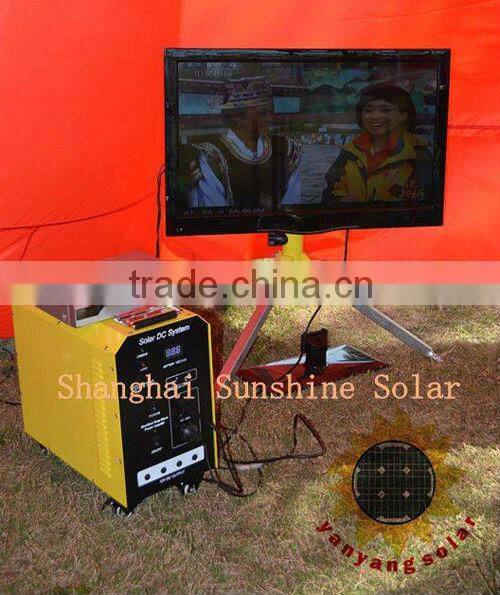

Ideal for household appliances,provide stable power source for small household appliance
such as;refrigerator, computer, TV, fan, lights,etc
Regions where there are power shortages, less power supply
personal design, easy to carry
High-performance, practical, durable.
Details List:

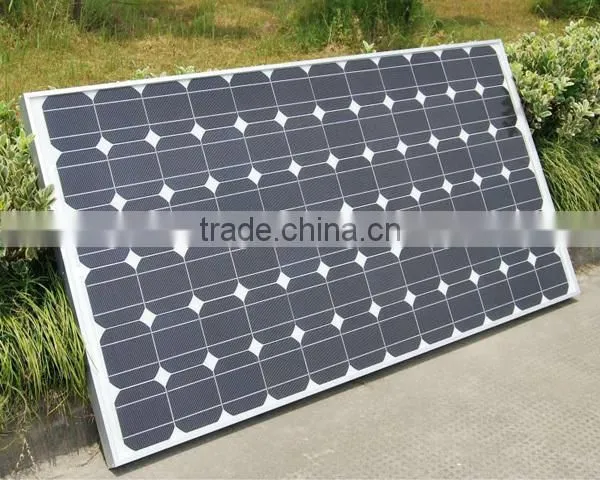

A) Monocrystalline Silicon solar panel:240w 1pc (standard with,also can choose alone)
B) Sealed lead-acid battery: 200AH / one piece
C) Solar controller: 20A
D) Inverter (load power): 200W (with Standard, also can customized as your request).
E) 2pcsX 5V USB output & 4 portsX 12V/ 24V LED outputs & 2pcsX 220v AC output
F) Mains Charge function & universal moblie chare line
About OEM&ODM:
Customized Logo |
Acceptable |
Changing on Material, Color, Shape |
Acceptable |
Development on Green Science |
Acceptable |
Assistant on Solar Energy development |
Acceptable |
Our advantages:
We have patents for the essential parts of the products----controller and inverter
All our products are approved by CE and ISO9001
We can do OEM and ODM, and we have our own talented R&D teams
All our products are easy to be used and convenient in maintanence
Strong technical team is ready to work for you.

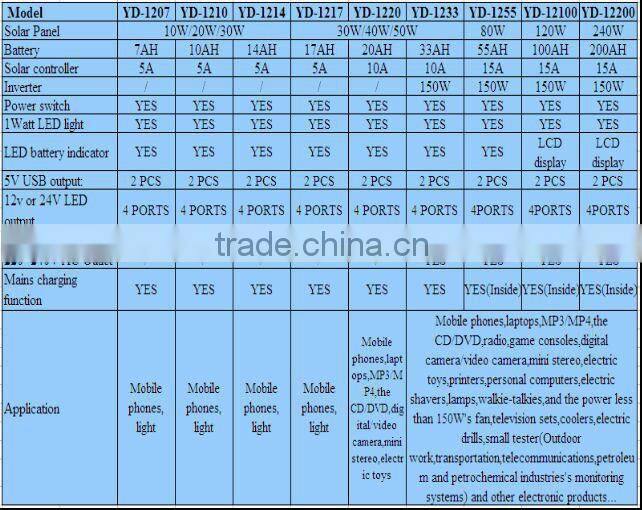

| Technical Parameters | |
|
DC |
|
| Solar Panel Input | 24v≤Voc≤45v.IMPPT≤8A |
| External Charging Adapter | 12v5A Lead-acid Battery Charger |
| DC Output | DC5v,DC12v(USB Interface,Compatible with Apple products) |
| Battery Capacity | 24v 200AH |
| AC | |
| AC Output | AC 220V±2%,50Hz±0.1% |
| AC 110V±2%,60Hz±0.1% | |
| AC Output Rated Power | 240w |
| AC Voltage Distortion | No Load≤1%,Full Load≤3% |
| Max Continuous Output Power | <110% Rated Power |
| Over load | allow overload 110% to 200% of rated power,30s |
| Surge Power | 200% of the rated power to Short-circuit,3s |
| Undervoltage Protection | when the battery voltage ≤10.5v,under-voltage;battry voltage≤11v,under-voltage alert |
| Humidity Limits | 10%~85% RH, No-condensing |
| Other Protection | Overload protection,temperature-controlled fan,over temperature protection,surge protection |
| Dimensions | 500*320*400mm |
Quality Control:
Our production management strictly according to ISO9001 standard. From material purchasing to packing , we test in every steps in order to make sure our products are qualified.
1. Our solar controller 100% tested by computer before shipment.
2. All the solar power systems are on trial-operation before shipment.

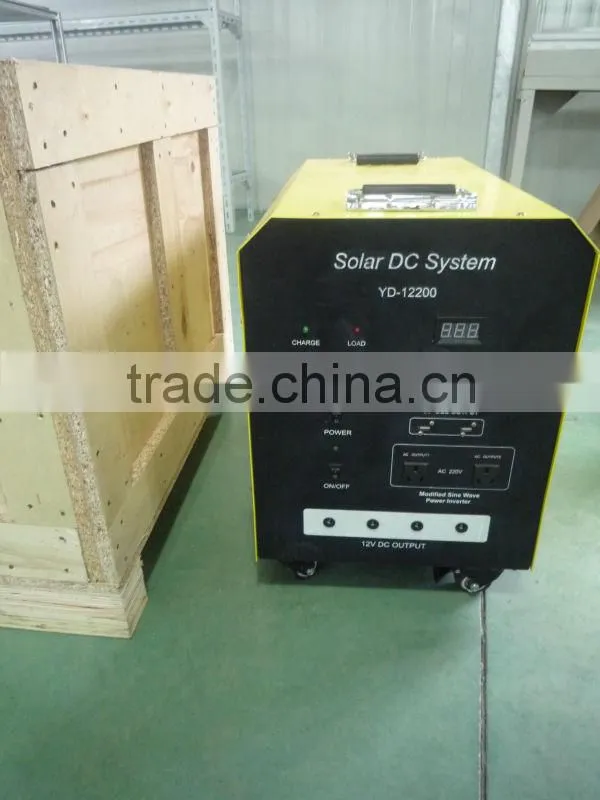

Package: Packing is very solid!
wooden box
Please try to order sample or visiting in our factory , we trust it worth to do in long term business.
Warmly welcome your inquiry! Thank you kindly!
Basic Information:
| Company Name: | Shanghai Sunshine Solar System Electric Co.,Ltd | |
|---|---|---|
| Year Established: | 2000 | |
| Business Type: | Manufacturer | |
| Main Products: | Portable Solar Panel Kit; Home Solar System; Solar Street LED Lamp;Flat Solar Panel;Solar Roof Hook; Solar Inverter & Controller | |
| Other Products/Services: | solar backpack,solar power bag,solar case,portable battery | |
| Operational Address: | No.288 Tuanjie village Huinan Town,Pudong New Area,Shanghai,China (Mainland) | |
| Number of Employees: | 10-20 People View management | |
| Worker Staff: | 80-100 People | |
| No. of QA/QC Staff: | 10-15 People | |
| Management Certification: | CE & ISO 9001:2000 ISO 14001:2004 |
