Help CenterFactory Direct High Effiency Solar Charge Controller
Related Products
-
Hot!10A PWM Charge Solar ControllerNegotiableMOQ: 10 Pieces -
Widely Applicability 12V Solar ControllerNegotiableMOQ: 10 Pieces
-
HOT SALES! Digital Solar Charger ControllerNegotiableMOQ: 50 Pieces
-
10A/12V Solar Charge Controller Factory DirectNegotiableMOQ: 50 Pieces
-
HOT SALES! Solar Intelligent Charger ControllerNegotiableMOQ: 50 Pieces
Specifications
Efficient tandem PWM charging, extend battery life, improve system performance, fast delivery, good quality.CE,ISO
Good News! Factory directly supply&high quality&low price.
| Model No: | YK-T1210 |
| Rated battery current: | 10A |
| Rated voltage: | 12VAuto |
| Low pressure cut-off voltage: | 11.1V;x 2/24V |
| Low-voltage disconnect to restore electricity Voltage: |
12.6V;x 2/24V |
| lossing itself : | ≤6mA |
| Dimension: | 135 x90 x38 mm |
| Outlet diameter: | 4mm² |
| NW: | 0.1kg |
| Certificate: | CE&ISO |
| Warranty: | 2 years |
| Remark : | automatic with light controll |
PWM charging,extend battery life,
Automatic adjusted of discharge parameters,
1. Temperature compensation.
2. Over-charge protection.
3. Over-discharge protection.
4. Over current protection.
5. Overloading protection .
6. Short circuit protection.
Protection Function:
1.The reverse polarity protection of solar cell
2.The short circuit protection of the solar cell
3.The reverse current protection of the charge circuit
4.The overcharge/overdischarge protection of lithium storage battery
5.The short circuit protection of load
6.The over current protection of load
7.The continuous discharge current protection of sensitive load
8.Over temperature protection

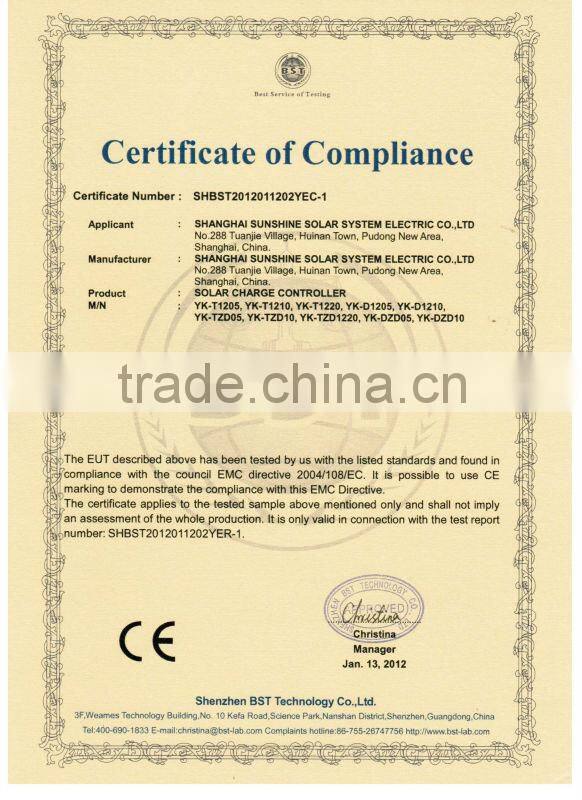

Certification:
Please try to order sample or visiting in our factory , we trust it worth to do in long term business.
Shanghai Sunshine Solar System Electric Co .,LTD is one of China's own development, design, manufacture and sales of the solar energy components, and photovoltaic controller, inverter, solar photovoltaic power generation system of professional high and new technology enterprise.
Add: No. 288 Tuanjie Village Huinan Town, Pudong New Area, Shanghai, China, 201301
National customer service hotline: 400-776-3222
Tel: 86-21-58270973
Fax: 86-21-68270338
Web:Chinese:
English:
