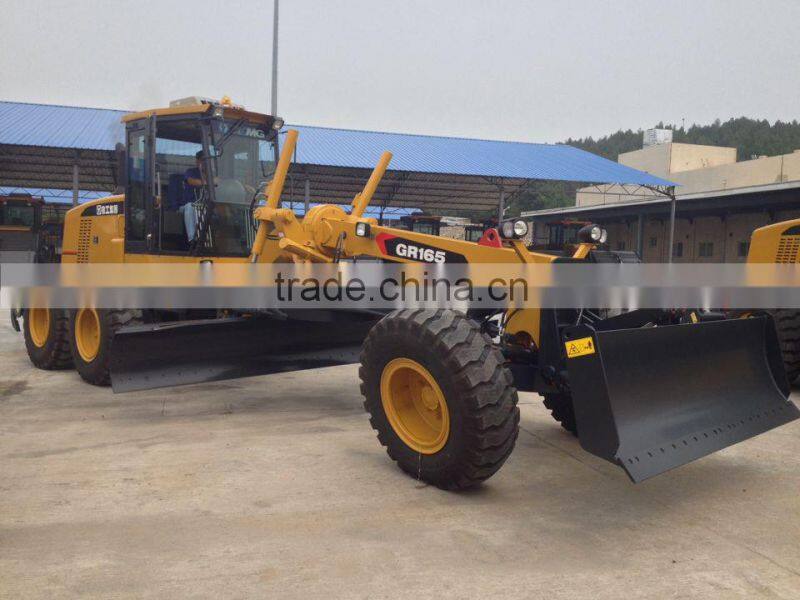

Help CenterXCMG 165 HP Motor Grader GR165 With Ripper and Front Blade
Related Products
-
XCMG 11t Motor Grader GR135NegotiableMOQ: 1 Set -
XCMG 135hp Motor Grader GR135NegotiableMOQ: 1 Set
-
XCMG 10t Motor Grader GR100NegotiableMOQ: 1 Set
-
XCMG Motor Grader GR100NegotiableMOQ: 1 Set
-
XCMG New Motor Grader GR215 for Sale With Good Price and XCMG Grader Spare PartsNegotiableMOQ: 1 Set
XCMG Motor Grader GR165
Feature
The XCMG GR Series Motor Graders are mainly used in grond leveling, canalling, slopeing, earthmoving, scarification or snow removal work on road, airfield, farmland, and so on. They are necessary construction machines for national defence engineering, mine construction, town and country roads building, and farmland improvement.
Performance and characteristic:
1. New appearance design.
2. The articulation frame is adopted and macthed with the steering of the front wheel, with small turning radius, maneuvering and flexible.
3. The electro-hydraulic controls the power shift gearbox, with 6 ahead box and 3 back gears.
4. The international matching hydraulic parts are adopted, with reliable operation.
5. The motions of the knife are fully hydraulically controlled.
6. The rear axle is the three-section driving axle which is provide with the NO-SPIN self-locking differential mechanism.
7. The manipulation table and seats are adjustable. The arrgement of the manipulation handle and instruments are reasonable, with convenient application, and the comfprt of driving is improved.
8. The cab is grand and nice, with wide eyeshot and good sealing.

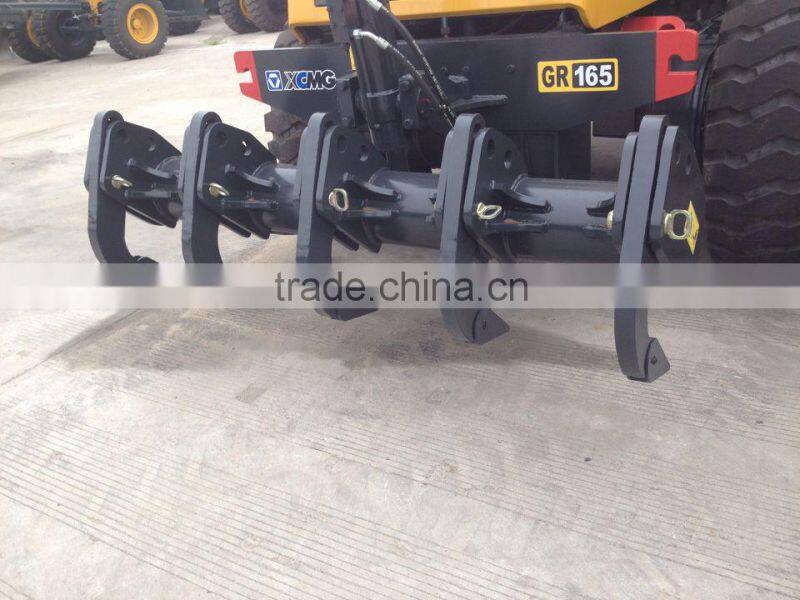

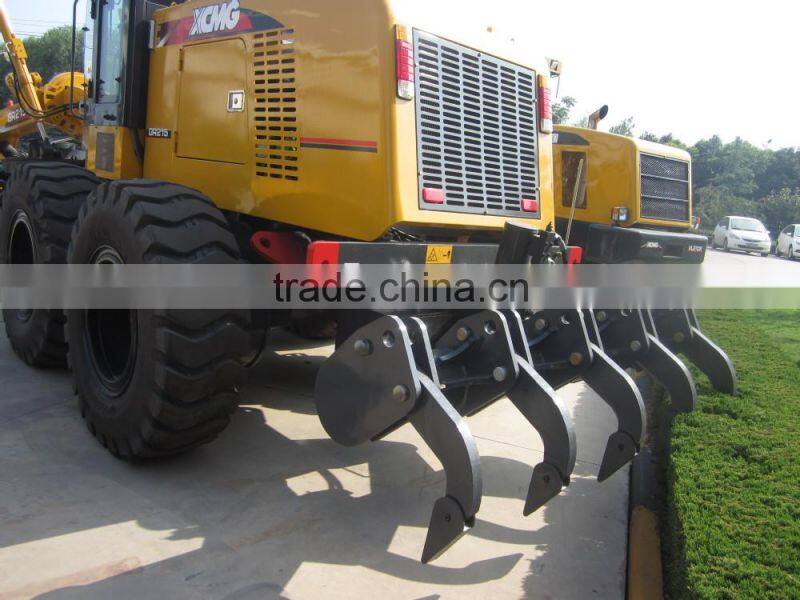

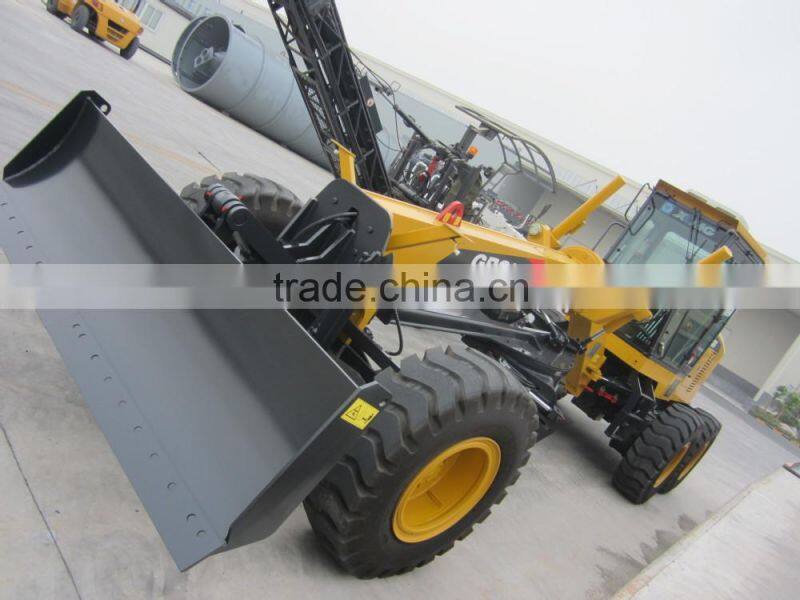

9. The front bolldozing plate,rear scarification device, front scarification harrow and automatic leveling device can be added.
Main technical specification
| Engine model | 6BTA5.9/SC 8D170G2B1 |
| Rated power/speed | 125kW(165HP)/2200rpm |
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15000kg |
| Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.8) | 82KN |
| Max. gradeability | 30% |
| Tire inflation pressure | 260 MPa |
| Working hydraulic pressure | 18 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | Left / Right50° |
| Max. lean angle of front wheels | Left / Right17° |
| Max. oscillation angle of front axle | Up / down15° |
| Max. oscillation angle of balance box | Before / after15 |
| Frame articulation angle | Left / Right27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
