Home > Products > XCMG Drilling Machinery > XCMG Rotary Drilling Rig XR150D

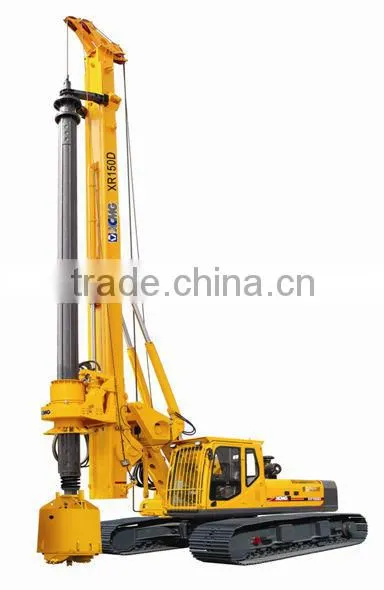

XCMG Rotary Drilling Rig XR150D
- 30 Set / Sets per Month
- T/T
- CAT HOSE AS 363-8127 3638127 Caterpillar genuine
- Advanced Portable Water Well Drilling Rig 760kg Mud Drilling Capability
- Water Well Drilling Machine With 150 Meters Depth And Large Hole Diameter
- 220V / 380V Water Well Drilling Machine / HZ 200 M Mine Borehole Rock Drill Rig
- High Efficiency Water Well Drilling Rig XY-3 300m Depth For Geothermal Exploration
- Auto Balancing Turnover Spreader Beam for Car Frame/Chassis/Trailer/Flatbed Turning
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | XCMG | Model Number: | XR150D |
Product Description
XCMG Portable mobile Rotary Drilling Rig XG360
Specifications
NO | Name | Unit | Parameters | |
1 | Max. drilling diameter | mm | Æ1300 | |
2 | Max. drilling depth | m | 38(4-section of friction)(standard) 48(5-section of friction) (optional) 38(4-section of mechanical interlock ) (optional) | |
3 | Safe operation range(from rotarying centre) | mm | 3150~3550 | |
4 | Dimension in working condition(L*W*H) | mm | 7122*4200*17250 | |
5 | Dimension in transportation condition(L*W*H) | mm | 12300*3200*3060 | |
6 | Overall drilling weight(drilling tools not included) | t | 45.5 | |
7 |
Engine | Engine model |
| B5.9-C |
Engine rated power/rotary speed | kW | 133 /2000r/min | ||
Max. Torque of engine | N.m | 553 /1500r/min | ||
8 | Hydrulic system | Max. pressure | Mpa | 32 |
9 | Rotary drive | Max.output torque | kN.m | 150 |
Rotary speedRotary speed | rpm | 6~28 | ||
10 | Pull-Down clinder | Max. pull-down piston push | kN | 120 |
Max. pull-down piston pull | kN | 160 | ||
Max. pull-down piston stroke | mm | 3500 | ||
11 | Main winch | Max. pulling force | kN | 145 |
Max. wire speed | m/min | 75 | ||
Wire diameter | mm | 26 | ||
12 |
Auxiliary winch | Max. pulling force | kN | 50 |
Max. wire speed | m/min | 70 | ||
Wire diameter | mm | 16 | ||
13 | Mast | Left/ right Side | ' | 3 / 3 |
Forwards | ' | 5 | ||
14 | Slewing bearing | Slewing bearing angle | ' | 360 |
15 | Runing | Max. complete device running speed | km/h | 3.2 |
Max. complete device grade ability | % | 40 | ||
16 | Track | Track width | mm | 800 |
Outside width(min-max) | mm | 3200~4200 | ||
Distance between two wheels longitudinally | mm | 3843 | ||
Average grouning specific pressure | KPa | 70.5 |
