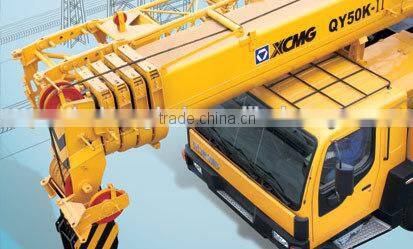

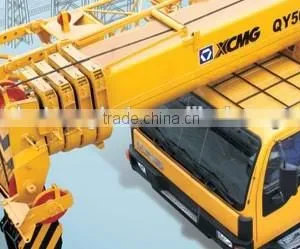

Help CenterXCMG QY50K-II Truck Crane
Related Products
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
Dimension |
Unit |
QY50K-Ⅱ |
|---|---|---|
Overall length |
mm |
13750 |
Overall width |
mm |
2800 |
Overall height |
mm |
3520 |
Weight |
|
|
Total weight in travel |
kg |
41000 |
Front axle load |
kg |
15000 |
Rear axle load |
kg |
26000 |
Power |
|
|
Engine model |
|
WD615.334(domestic III) |
Engine rated power |
kW/(r/min) |
247/2200 |
Engine rated torque |
N.m/(r/min) |
1350/1400 |
Travel |
|
|
Max. travel speed |
km/h |
80 |
Min. turning diameter |
m |
24 |
Min. ground clearance |
mm |
291 |
Approach angle |
° |
17 |
Departure angle |
° |
11 |
Max. grade ability |
% |
40 |
Fuel consumption for 100km |
L |
45 |
Main performance |
|
|
Max. rated total lifting capacity |
t |
50 |
Min. rated working radius |
m |
3 |
Turning radius at turntable tail |
m |
3.482 |
Max. lifting torque |
kN.m |
1764 |
Base boom |
m |
11.3 |
Fully extended boom |
m |
42.7 |
Fully extended boom+ jib |
m |
57.7 |
Longitudinal outrigger span |
m |
5.91 |
Lateral outrigger span |
m |
6.9 |
Working speed |
|
|
Boom luffing time |
s |
88 |
Boom full extension time |
s |
180 |
Max. swing speed |
r/min |
≥2.0 |
Max. speed of main winch (single rope) (no load) |
m/min |
≥110 |
Max. speed of aux. winch (single rope) (no load) |
m/min |
≥110 |
