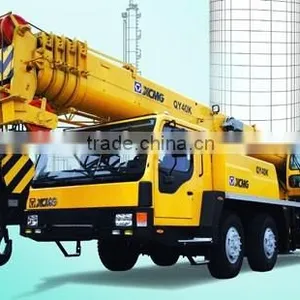

Help CenterXCMG QY40K Truck Crane
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Rated Lifting Moment:
1400 kn.m
Max. Lifting Load:
40000 kgs
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Rated Lifting Moment
1400 kn.m
Max. Lifting Load
40000 kgs
Max. Lifting Height
55.10m
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
QY40K
Warranty
one year

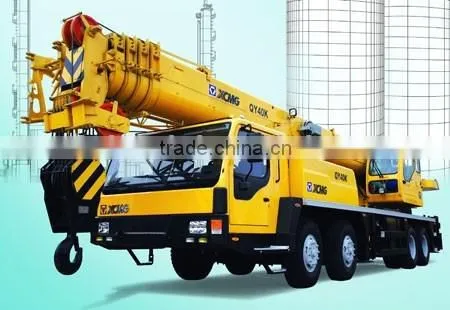

QY40K truck crane adopts full luxury cab with large view and new orthodrome streamline operating cab, which is good looking. Adopt five-segment oval rope retractable boom with double-cylinder and two-segment jib, greatly improving the working scope of the machine. The design of the streamline boom head is in keeping with the style of the machine. The boom and jib adopt new connection method, which is convenient to dismantle and install. It is equipped with the high-power environment protection engine, improving the chassis power and the trafficability.
| Dimension | Unit | QY40K |
|---|---|---|
| Overall length | mm | 13050 |
| Overall width | mm | ≤2800 |
| Overall height | mm | 3430 |
| Weight | ||
| Total weight in travel | kg | 40400 |
| Front axle load | kg | 14500 |
| Rear axle load | kg | 25900 |
| Power | ||
| Engine model | WD615.334 | |
| Engine rated power | kW/(r/min) | 247 / 2200 |
| Engine rated torque | N.m/(r/min) | 1350 / 1400 |
| Travel | ||
| Max. travel speed | km/h | 75 |
| Min. turning diameter | m | ≤24 |
| Min. ground clearance | mm | 285 |
| Approach angle | ° | 16 |
| Departure angle | ° | 11 |
| Max. grade ability | % | 46 |
| Fuel consumption for 100km | L | 46 |
| Main performance | ||
| Max. rated total lifting capacity | t | 40 |
| Min. rated working radius | mm | 3000 |
| Turning radius at turntable tail | m | 3.482 |
| Max. lifting torque | kN.m | 1400 |
| Base boom | m | 10.7 |
| Fully extended boom | m | 40.1 |
| Fully extended boom+ jib | m | 55.1 |
| Longitudinal outrigger span | m | 5.65 |
| Lateral outrigger span | m | 6.6 |
| Working speed | ||
| Boom luffing time | s | ≤88 |
| Boom full extension time | s | ≤180 |
| Max. swing speed | r/min | ≥2.0 |
| Max. speed of main winch (single rope) | m/min | ≥110 |
| Max. speed of aux. winch (single rope) | m/min | ≥110 |
