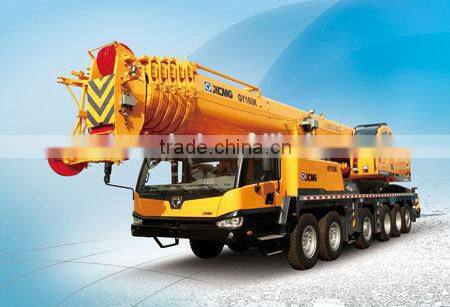

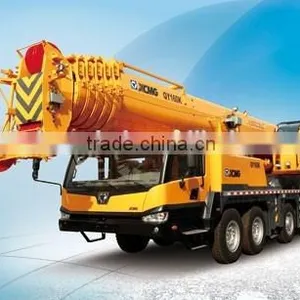

Help CenterXCMG QY160K Truck Crane
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Max. Lifting Load:
160000 kgs
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Max. Lifting Load
160000 kgs
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
QY160K
Warranty
one year
QY160K is the truck crane with the largest tonnage in the world. The boom length and lifting capacity is a great breakthrough in the 6-axle truck crane. The full extension length of the boom is 62m, and can be equipped with 28m vice boom. The maximum counterweight is 50t. The outrigger span is 7.8×8.0m, which can realize 360°full turn with the same lifting capacity, featuring large working scope and strong lifting capacity. The maximum travel speed is 80km/h, and the maximum grade ability is 40%, having excellent travel performance.
| Dimension | Unit | QY160K |
|---|---|---|
| Overall length | mm | |
| Overall width | mm | |
| Overall height | mm | |
| Weight | ||
| Total weight in travel | kg | 54900 |
| Front axle load | kg | |
| Rear axle load | kg | |
| Power | ||
| Engine model | OM460LA.E3A/1 | |
| Engine rated power | kW/(r/min) | 360/1800 |
| Engine rated torque | N.m/(r/min) | |
| Travel | ||
| Max. travel speed | km/h | 80 |
| Min. turning diameter | m | 26 |
| Min. ground clearance | mm | 300 |
| Approach angle | ° | 20 |
| Departure angle | ° | 14 |
| Max. grade ability | % | 40 |
| Fuel consumption for 100km | L | 75 |
| Main performance | ||
| Max. rated total lifting capacity | t | 160 |
| Min. rated working radius | mm | |
| Turning radius at turntable tail | m | |
| Max. lifting torque | kN.m | 5253 |
| Base boom | m | |
| Fully extended boom | m | 61.4 |
| Fully extended boom+ jib | m | 88.6 |
| Longitudinal outrigger span | m | 7.8 |
| Lateral outrigger span | m | 8 |
| Working speed | ||
| Boom luffing time | s | |
| Boom full extension time | s | |
| Max. swing speed | r/min | 1.8 |
| Max. speed of main winch (single rope) (no load) | m/min | 110 |
| Max. speed of aux. winch (single rope) (no load) | m/min |
