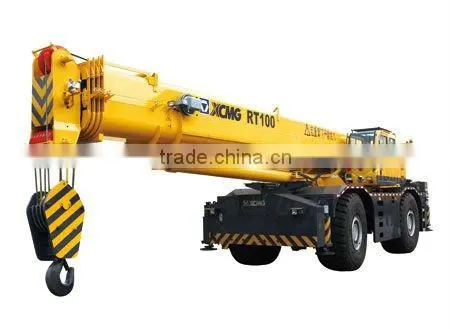

100t Rough Terrain Crane RT100

Name: 100t Rough Terrain Crane RT100
Brand: XCMG
SKU: 112293577
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

construction, high speed way

Rated Loading Capacity:

100t

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction, high speed way

Rated Loading Capacity 100t

Rated Lifting Moment 3500KN.m

Max. Lifting Load 100t

Max. Lifting Height 69000mm

Span 8400mm

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number RT100

After-sales Service Provided Engineers available to service machinery overseas

100t Rough Terrain Crane RT100

Technical Data for Lifting Operation	Item		Unit	Parameter
	Max. total rated lifting capacity		kg	100000
	Max. load moment of Base boom		kN·m	3500
	Max. load moment of Fully-extend boom+Jib		kN·m	1840
	Lifting height	base boom	mm	13200
		fully extended boom	mm	48800
		fully extended boom + Jib	mm	69000
	Hoist speed	Main winch	m/min	125
		Auxiliary winch	m/min	125
	Elevating time	fully extending	s	95
		fully retracing	s	120
	Telescoping time	fully extending	s	150
		fully retracing	s	180
	Highest rotating speed		r/min	2
	Outrigger beams extending /retracting simultaneously		s	40/30
	Outtrigger jacks extending/retracting simultaneously		s	55/40
Travel performance	Max. travel speed		km/h	33
	Driving model		—	4×2,4×4
	Max. grade-ability		%	60
	Min. turning diameter		m	7.5(four), 12(two)
	Tuning model		Front wheel independent steering, crab walk, Rear wheel independent steering
	Travel braking system			Hydraulic, disc
	Parking braking			machinery disc
Mass	Curb mass(encluding overweight)		kg	58900
	overweight		kg	18000
Dimension	Outline dimension(lwh)		mm	1490035003990
	Wheel base		mm	4645
	Track		mm	2640
	Outrigger span(Longitudinal/Lateral)		mm	8400/8200
	Lifting height	Base boom	mm	12400
		Fully extended boom	mm	48000
		Jib	mm	11700/20600
	Offset angle of jib		°	0, 20, 40
	Max./Min. angle of elevation		°	80°/-2°
	Min. ground clearance		mm	568
	Approach angle/Departure angle		°	21.1/17.3
Engine	Engine model			QSL8.9-300
	Rated power/speed		KW/r/min	224/2100
	Discharge			Euro III
