MISUMI Standard Guide Pin Sets

Specifications

1. About Yukai:

Yukai Precision Mold parts Co., Ltd., founded in 2005, is a professional company in research, development and manufacturing of precise standard mould components, which are used in precision punch mould, plastic mould, die casting mould, semiconductor mould and other automatic parts.

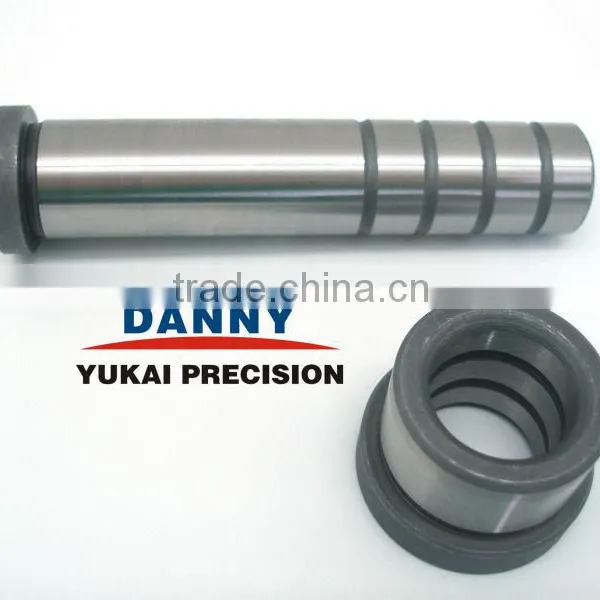

DME STANDARD GUIDE PINS AND BUSHINGS

guide pins

Guide pillar

material: suj2 (cr15),  alloy steel etc.
hardness: HRC58-62

Heat Treatment: Vacuumed or high frequency, carburizing .

diameter size : above 8mm (standard type)

length size : above 40mm    (standard type)

 customizing is available

Pins are precision made of high quality steel and are hardened ground to close tolerance, this combination enables moldmakers to line bore the guide pin and bushing hole.

2. Products' Accuracy:

3. Production Workshop & Advance Equipments:

4. Packaging & Delivery:

 Inner packing: packed by sponge or packed by vacuum plastic bags with anticorrosive oil. .

Out packing: cartons or upon customers' requirements.

 Delivered by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.

5.Certifications & Glories of Yukai:

6. Mold Exhibitions of Yukai:

Welcome your sincere inquiry !

We will service for you heart and soul !
