Help CenterKaiFan Light-duty P Series (FAW) Tow Truck
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel Type:
Diesel
Emission Standard:
Euro 3
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Fuel Type
Diesel
Emission Standard
Euro 3
Condition
New
Transmission Type
Manual
Dimensions (L x W x H) (mm)
9338x2480x3408mm
Place of Origin
Liaoning, China
Brand Name
Kaifan
Model Number
KFM5164TQZ05P
Specifications
KaiFan Light-duty P Series (FAW) Tow Truck1. Rated lifting weight: 16ton
3. Chassis Model: KFM5164TQZ05P

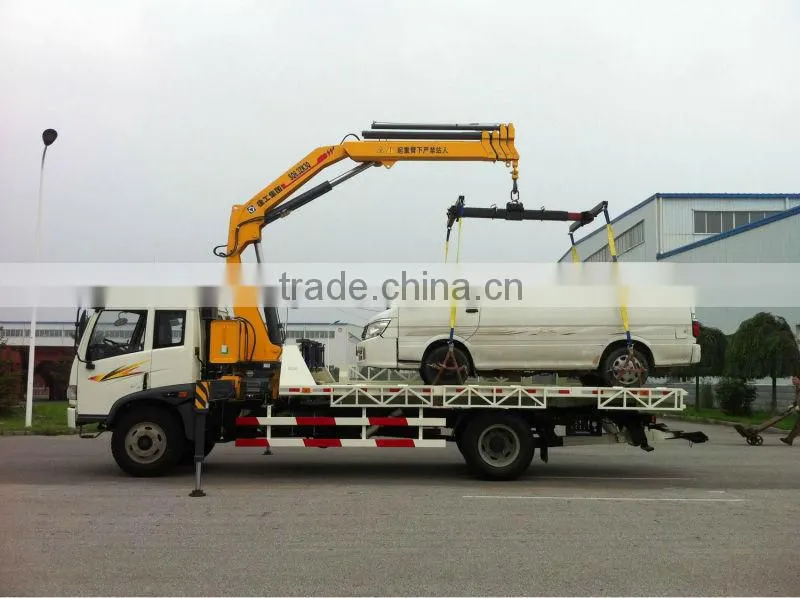

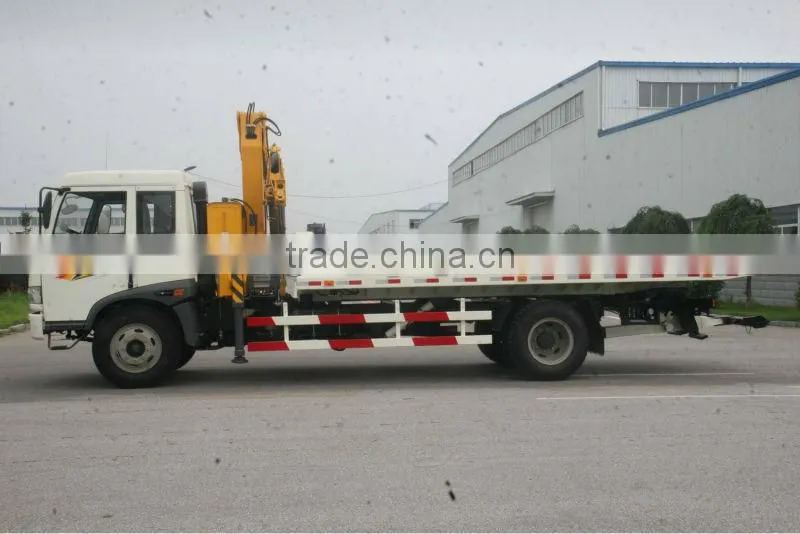

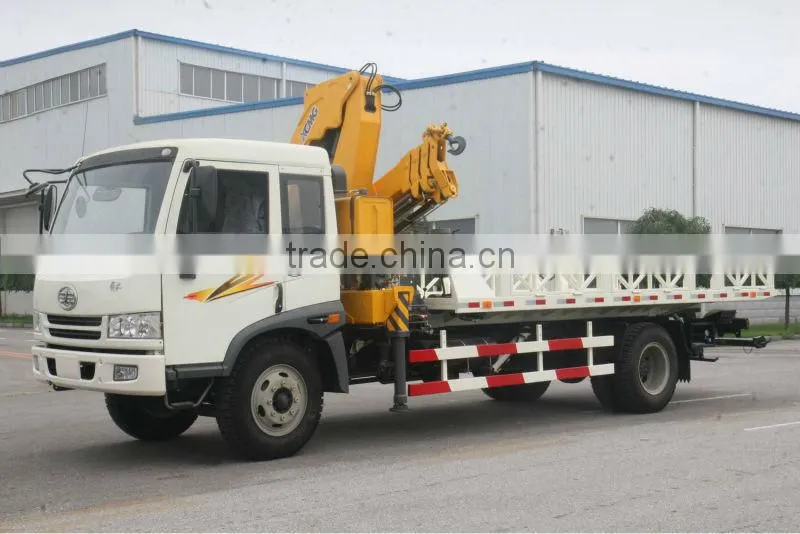

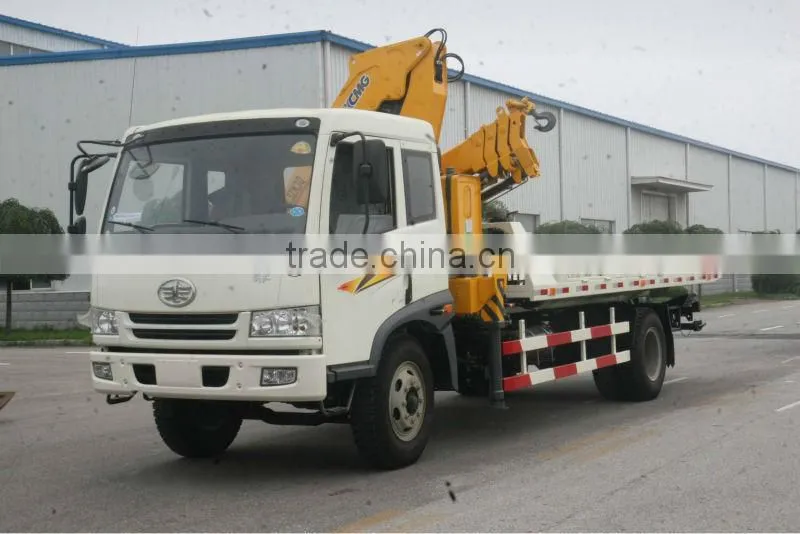

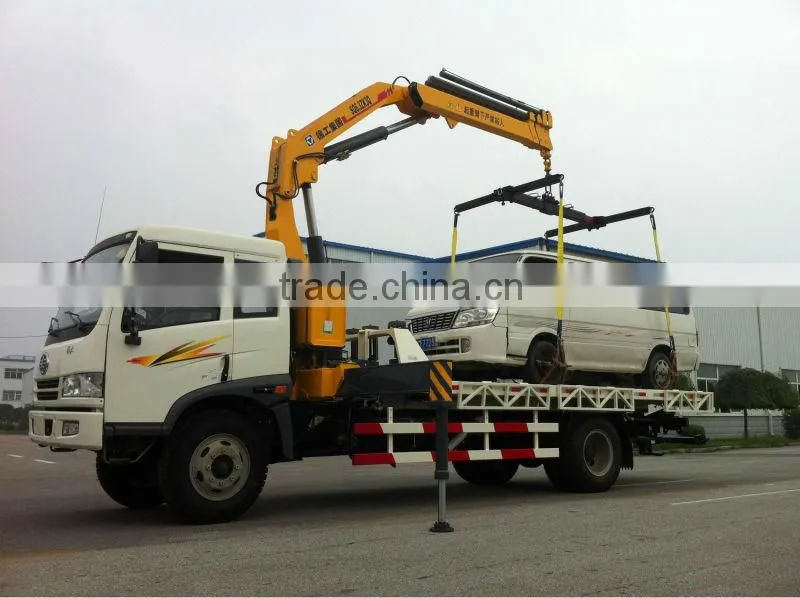

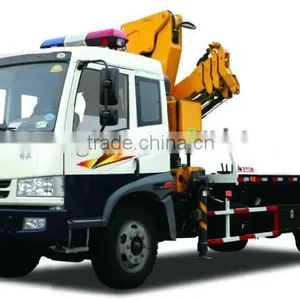

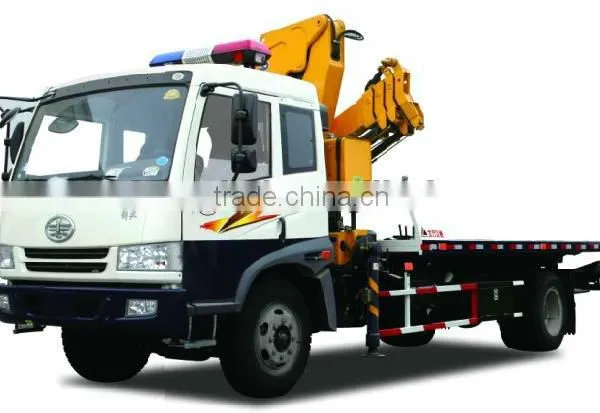

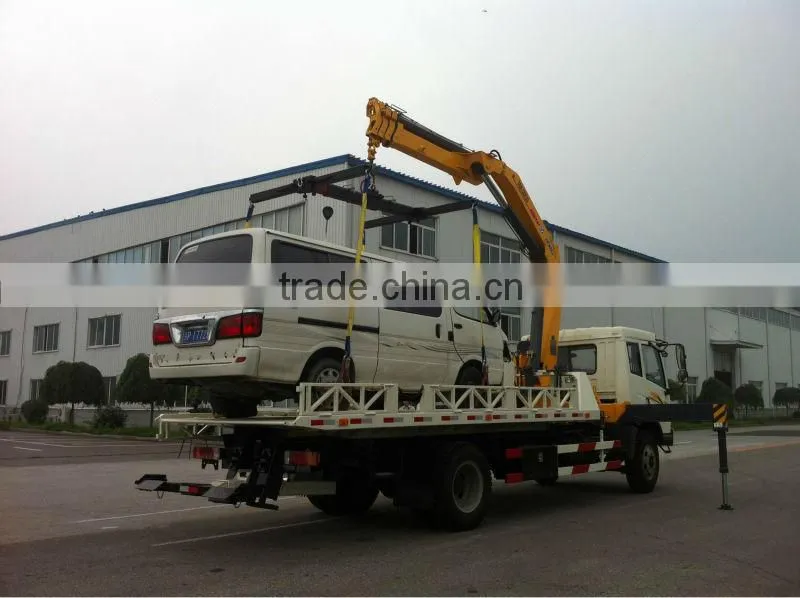

KaiFan Light-duty P Series (FAW) Tow Truck
1. Working Range
KFM5164TQZ05P Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
2. Main Parameter
| Items | Unit | Value |
| Boom Structure | ||
| Max. Rated towing weight | kg | 16000 |
| Max. Lifting weight | kg | 2500 |
| Max. Lifting weight of full extending boom | kg | 1500 |
| Effective length of boom | mm | 1758 |
| Extension traveling of boom | mm | 1350 |
| Elevation of boom (upper/ lower) | ° | 9N—10 |
| Platform Structure | ||
| Min. Elevation of full extending platform | ° | 80/160 |
| Max. Loading of platform | kg | 4000 |
| External dimension of platform (length×width×height) |
mm | 5700×2400×55 |
| Extension traveling of platform | mm | 3100 |
| Ground clearance of cage floor | mm | 1325 |
| Max. Pulling power of winch | kg | 5000 |
| Dia. Of steel cable | mm | 12 |
| Length of steel cable | m | 25 |
| Min. Speed of steel cable | m/min | 7 |
| Vehicle Parameters | ||
| External dimension | mm | 9338×2480×3408 |
| Chassis model | CA1163P9K2L4A3E | |
| Drive | 4×2 | |
| Axle base | mm | 5000 |
| The whole weight of empty load | kg | 9615 |
| Load of front axle of empty load | kg | 4620 |
| Load of rear axle of empty load | kg | 4995 |
| The whole weight of full load | kg | 16000 |
| Load of front axle of full load | kg | 6000 |
| Load of rear axle of full load | kg | 10000 |
| Wheel base (front/rear axle) | mm | 1810/1800 |
| Front suspension | mm | 1330 |
| Rear suspension | mm | 2600 |
| Approach angle | º | 18 |
| Departure angle | º | 11 |
| Min. Turning diameter | m | ≤18 |
| Min. Ground clearance | mm | 237 |
| Max. Speed | km/h | ≥90 |
| Max. Grade ability | % | ≥36.7 |
| Engine model | - | CA4DF3-14E3F |
| Engine emission | ml | 4752 |
| Rated power | kw/r/min | 105/2500 |
| Max. Torque | n·m/r/min | 450/1400 |
| Fuel type | Diesel | |
| Standard of emission | EN III | |
| Tire size | 8.25-20(option 8.25R20) | |
| Persons | 3 | |
