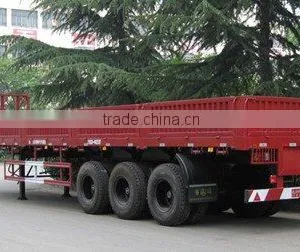

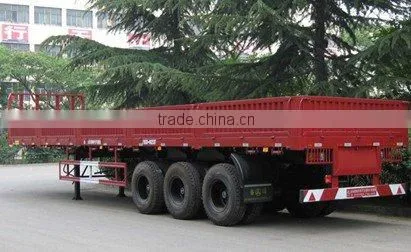

Cargo Semi-trailer

Name: Cargo Semi-trailer
Brand: XCMG
SKU: 112291177
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

XCMG

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Brand Name XCMG

Specifications

the good quality and the reasonable price,welcome your inquiry

Main Description
Overall Dimension		13000mm2495mm2920mm
Box Body Dimension		12780mm2300mm600mm
Tare Weight		8000kg	Pay Load	40ton
King Pin Setting		1460mm	Rear Overhang	1930mm, 2130mm
Track		1840mm	Loading surface height	1600mm
Wheel base		7000mm+1305mm+1305mm, 6800mm+1305mm+1305mm
Box Body		Floor steel sheet 2.5mm, side wall steel sheet 1.2mm
Running Gear
Suspension		Tri-axle mechanical suspension with 11-pcs leaf spring
Wheel Hubs		Cast steel, 10 studs
Tires		11.00-20, 12.00-20, 12units
Axles		FUWA, BPW or STEYR axle, load capacity 13T
Brakes		Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main Beam		I shape, Mild Alloy 16Mn by Automatic submerged arc welding.
Cross Beam		Mild Alloy Q235
King Pin		Size: 50# (2'') or 90#(3.5); Type: welded or assembled
Landing Gear		Single side operation or double side operation, Static capacity 30Ton
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request
