Bridge Inspection Platform

Name: Bridge Inspection Platform
Brand: XCMG
SKU: 112290887
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

boom type /Truck type

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai /Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number boom type /Truck type

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Adopted the technology integrated by mechanics, electronics, hydraulics and telecommunication, the machine features portable and

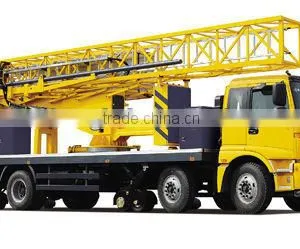

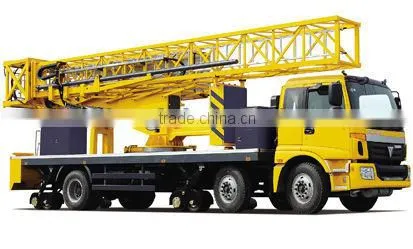

Model -boom type -9m	XZJ5250JQJ9	XZJ5251JQJ9	XZJ5252JQJ9
Overall length of horizontal work platform	10000mm	10000mm	10000mm
Valid length of horizontal work platform	9000mm	9000mm	9000mm
Distance over the sidewalk	2200mm	2200mm	2200mm
Height over the guardrail	2100mm	2100mm	2100mm
Max. load of the work platform	600kg	600kg	600kg
Max. load of the front end of the telescopic arm	300kg	300kg	300kg
Thickness of the box beam	6000mm	6000mm	6000mm
Drive type	Hydraulic	Hydraulic	Hydraulic
Main power	Chassis PTO	Chassis PTO	Chassis PTO
Standby power	Honda gasoline engine	Honda gasoline engine	Honda gasoline engine
Chassis Model	Dongfeng 25t 6x4	Jiefang 25t 6x4	Foton 25t 6x2
Structure of work platform	Truss type	Truss type	Truss type
Rotation range I	0-90°	0-90°	0-90°
Rotation range II	0-180°	0-180°	0-180°
Dimension(mm)	11470×2480×3960	11445×2500×3980	11385×2500×3980

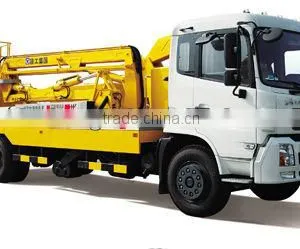

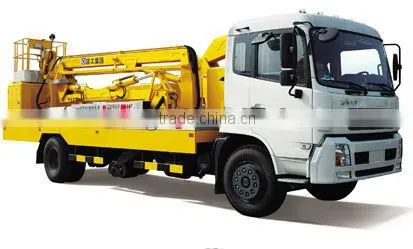

Type		XZJ5230JQJ12
	Underbridge horiziontal working radius	0-12M
	Underbridge vertical working radius	0-13.8M
	Main boom span width	2.8M
	Rotate range of rotation I	0 ~90°
	Rotate range of rotation II	0~135°
	Rated load of platform	200kg
	Chassis model	DFL1250A9
	Overall dimension	10960×2500×3760

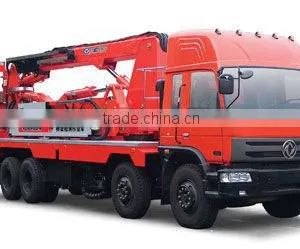

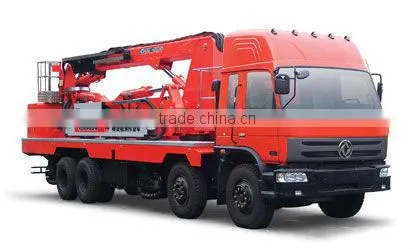

Model	XZJ5291JQJ16/XZJ5292JQJ16	XZJ5291JQJ16L/XZJ5292JQJ16L
Underbridge horiziontal working radius	0-16.37M	0-16.37M
Underbridge vertical working radius	0-20M	0-20M
Main boom span width	2.8M	0-4.8M
Rotate range of rotation I	0 ~90°	0 ~90°
Rotate range of rotation II	0~135°	0~135°
Rated load of platform	200kg	100kg
Chassis Model	ND13147D47J/DFL1311A3	ND13147D47J/DFL1311A3
Dimension	12000×2500×3800	12000×2500×3800

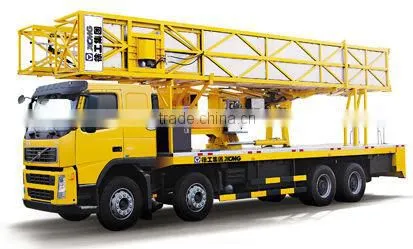

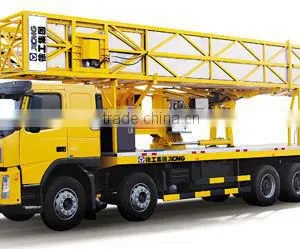

Model	XZJ5311JQJ18/XZJ5312JQJ18
Overall length of horizontal work platform	19000mm
Valid length of horizontal work platform	18000mm
Distance over the sidewalk	2500mm
Height over the guardrail	2000mm
Max. load of the work platform	800kg
Max. load of the front end of the telescopic arm	400kg
Thickness of the box beam	7000mm
Drive type	Hydraulic
Main power	Chassis PTO
Standby power	Honda gasoline engine
Chassis Model	VOLVO 8x4
Structure of work platform	Truss type
Rotation range I	0-90°
Rotation range II	0-180°
Dimension(mm)	11754×2500×960
