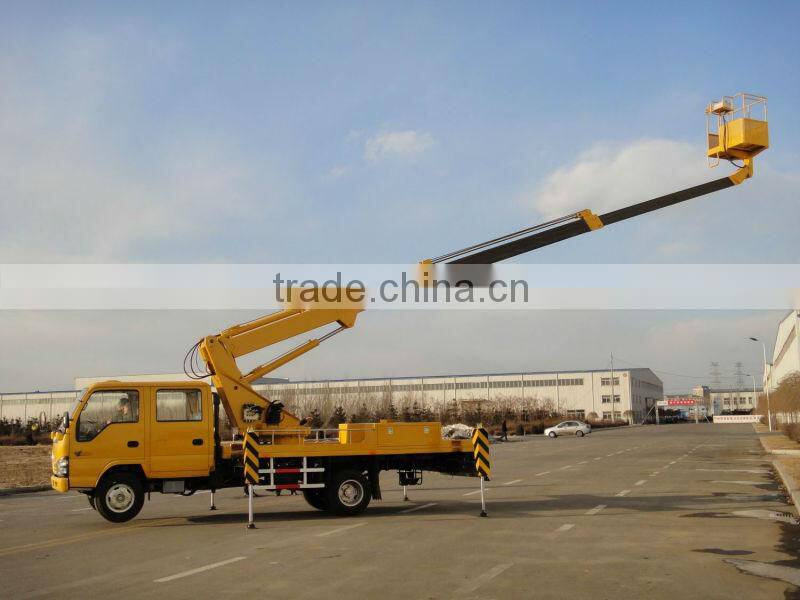

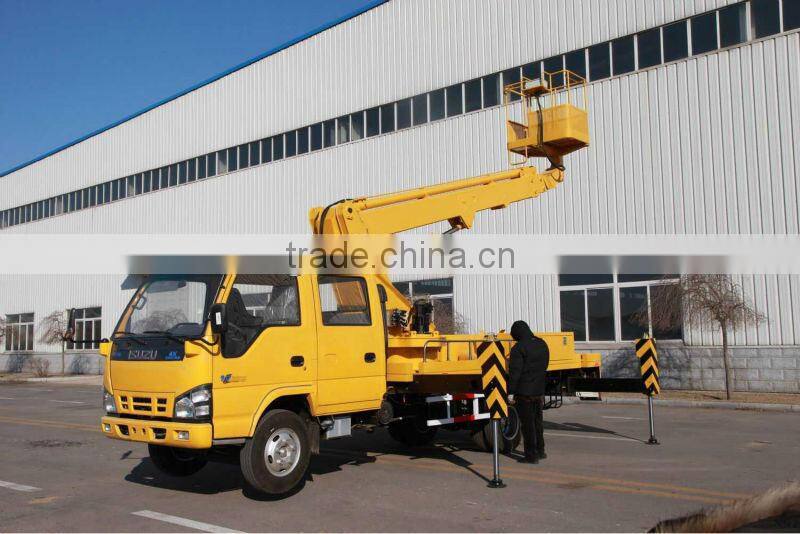

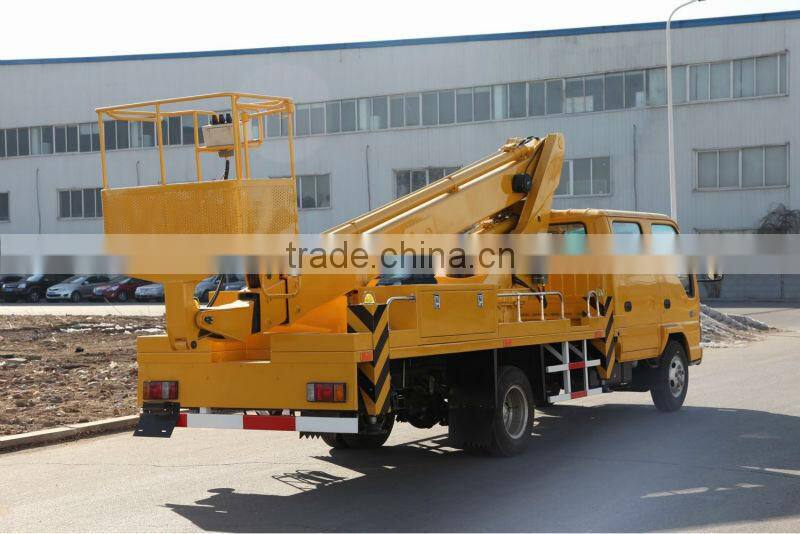

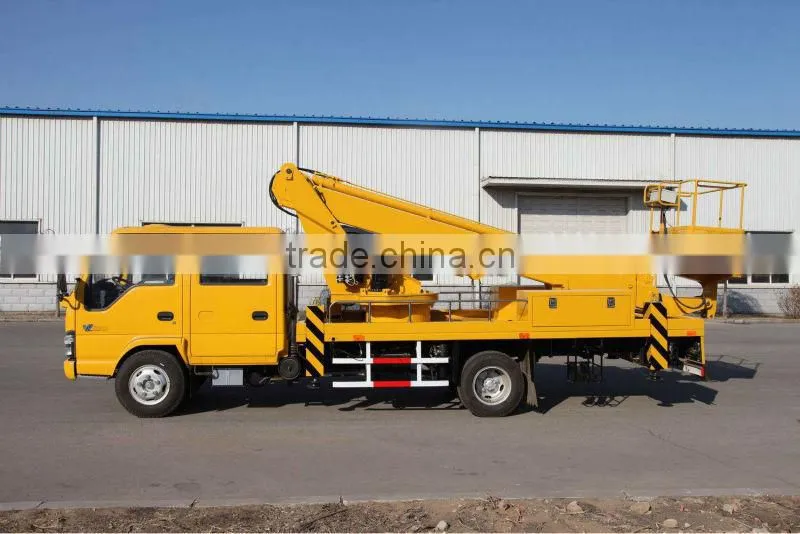

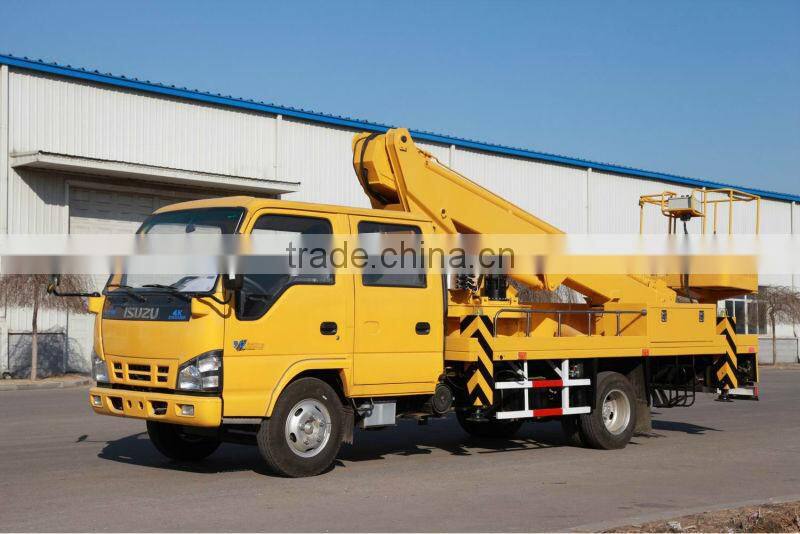

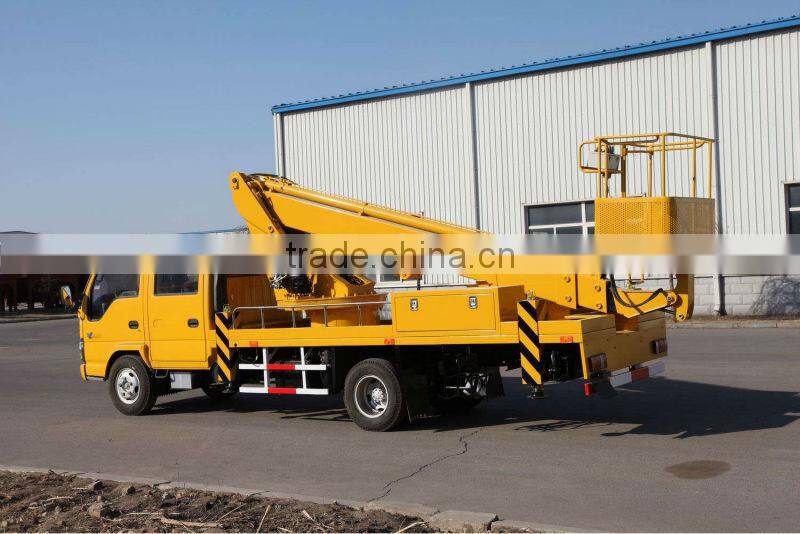

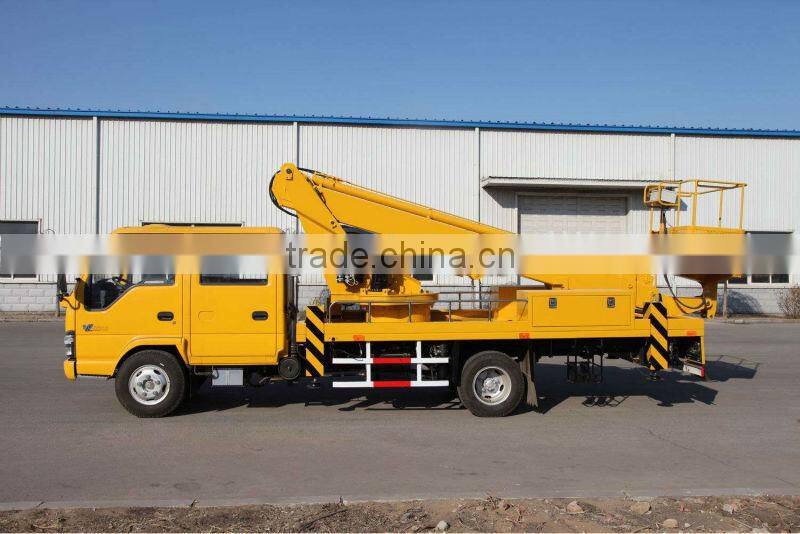

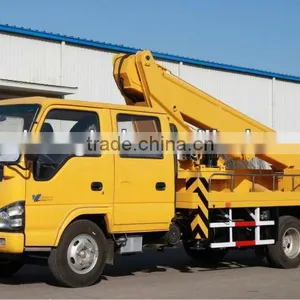

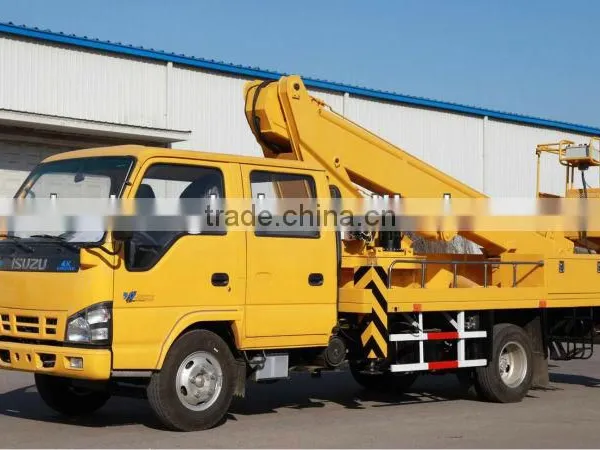

KaiFan Brand 18M Telescopic Boom Aerial Working Platform1. Max. Working height: 18m
KaiFan Brand 18M Telescopic Boom Aerial Working Platform
Technical Parameters
(KFM5079JGK10S )
1. Working Condition
1. Altitude: 0-1000m
2. Temperature: -25°C--+45°C, environmental relative humidity ≤90%
3. Allowed working condition: solid, stable land, the vehicle should be horizontal
4. Wind force: ≤6 degree (wind speed ≤12.5m/s)
2. Working Range
KFM5079JGK10S Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
3. Main Parameters
Bulletin No. |
KFM5079JGK10S |
|
External dimensions(mm) |
8010×2000×2950 |
|
Structure type |
Three-section telescopic boom |
|
Working Cage |
Internal size(mm) |
1100×700×1100 |
Rated loading(kg) |
200(or 2 persons) |
|
Max. Working height(mm) |
18000 |
|
Max. Height from ground(mm) |
16300 |
|
Max. Working radius(mm) |
12000 |
|
Rotation angle(º) |
±90° |
|
|
Working Boom |
Lifting angle of main boom(º) |
-13—78° |
Boom rack rotation angle(º) |
360 |
|
Outrigger |
Vertical span(mm) |
3930 |
Horizontal span(mm) |
3980 |
|
Adjustment |
Single adjustable |
|
4. Chassis Introduction
|
Traveling Performance Parameters |
Chassis model |
NKRP77LLWCJAY |
Persons |
2+3 |
|
Axle base (mm) |
3815 |
|
Wheel base (front/rear)(mm) |
1504/1425 |
|
Driving mode |
4×2 |
|
Front suspension(mm) |
1504 |
|
Rear suspension(mm) |
2470 |
|
Approaching angle(º) |
24 |
|
Departure angle(º) |
10 |
|
Min. Turning diameter(mm) |
14000 |
|
Min. Ground clearance(mm) |
190 |
|
Engine |
Engine model |
4KH1-TC |
Rated power(Kw/r/min) |
96/3400 |
|
Torque(N.m/r/min) |
280/1700 |
|
Max. Speed(km/h) |
70 |
|
Specification of the tire |
7.00-16 |
|
The whole weight(kg) |
6475 |
|
Max. Weight with whole loading(kg) |
6800 |
|
5. Equipments Introduction
1. Chassis model: NKR77LLWCJAY
2. Working boom assembly
3. Rotation structure assembly
4. Body transformation assembly
5. Extending outrigger
6. Spare type & tool box
7. Hydraulic system assembly
8. Electric system assembly
9. Safety control system
10. Working cage assembly
11. Safety belt
12. Safety lift & Moving guard bar
13. Balance slid rod device
14. Maintenance bag & tools
15. Safety warning & Light
16. Air- conditioning
17. Lifting device
6. Vehicle Information
1. Manual Instruction
2. Operation manual of chassis
3. Guarantee of chassis
4. Certification of quality of the vehicle
5. Maintenance Manual (Operation instruction)
6. Operating safety certification
