DIN2269 steel pin gauges/metric pin gauge set/pin plug gages
Specifications
Size (mm) | Step (mm) | Length (mm) | Tolerance (µm) | Roundness/ Cylidricity (µm) | Hardness (HV) |
0.100~0.199
| 0.01 | 40 | ±0.3 | 0.3 | over 650 |
0.200~0.999
| 0.01 | 40 | ±0.3 | 0.3 | over 650 |
1.000~7.000
| 0.01 | 50 | ±0.3 | 0.3 | over 650 |
7.001~7.010
| 0.01 | 50 | ±0.3 | 0.3 | over 650 |
7.011~10.000
| 0.01 | 50 | ±0.5 | 0.5 | over 650 |

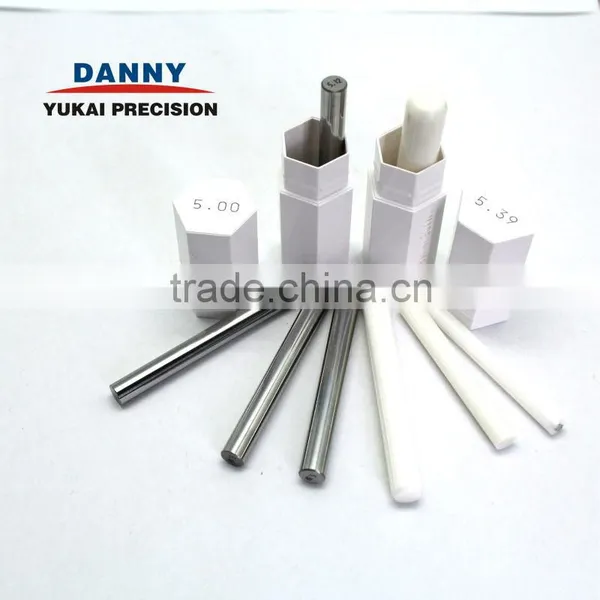

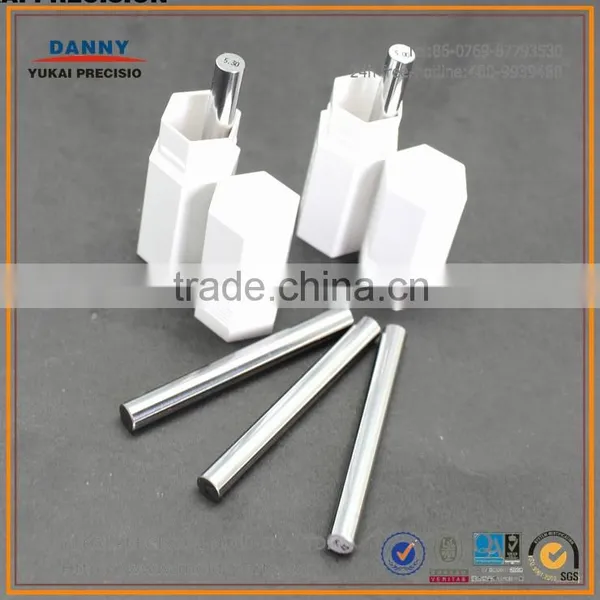

PIN GAUGE
1.Gauges:pin gauge
2.Material:steel , ceramic
3.Type:Various types
ceramic pin gauge.precision finishing. Good price with high quality.
Special steel, hardened and finely ground
Measuring Pin Set
Special steel, hardened and finely ground
without Handle, DIN 2269
Contents: 41 Measuring Pins
Diameter-Range: 1,0 - 5,0 mm
Steps: 0,1 mm
Tolerance +/- 1 µm
Lenght: 70 mm
SIZE:Φ6.0*50mm
standard:DIN2269

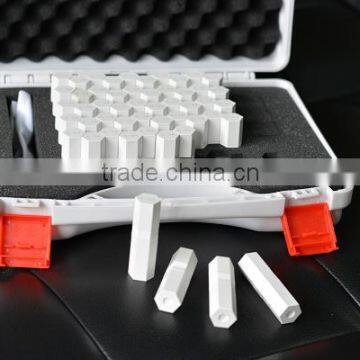

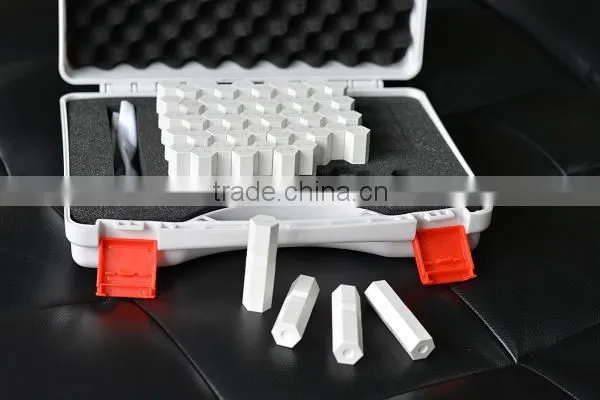

ceramic pin gages
Measuring Pin gauge set EH,EL,ER Japanese brand EISEN
Roundness: 0.3 micro meter
Inspection
Outer package of Pin Gauge
Teamwork of Yukai
Foreign customers
Certificate of Yukai
