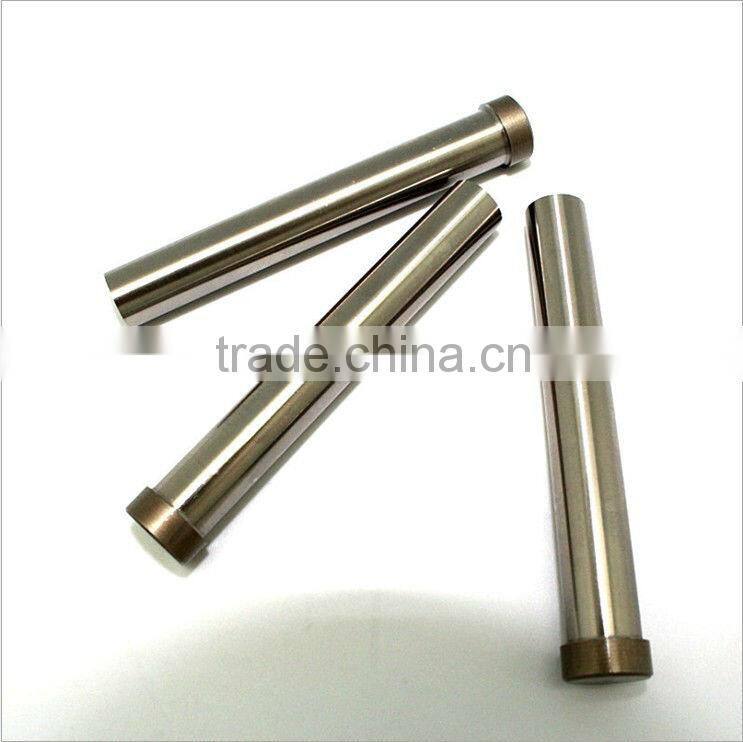

Mongolia HSS HWS Punch Pin DIN9861

Specifications

Steels of punch pin

WS: alloyed chrome - vanadium tool steel
HWS: high alloyed tool steel 12% chrome
HSS: high speed steel

Dimensions range: from Ø 0,5 to Ø 22 mm
Lengths: 71-80-100 mm
Further dimensions, lengths and materials available on request

Advantage of us

•  Our campay specialised in manufacturing in precision mould component

and it has a good reputation in the field with many skilled workers and advanced machines.

•  High hardness and high wear resistance
• We suppy punch and other mould parts for Foxconn(i Phone)
•  Our products are very sellable in many foreign countries
• We will deal with the products with full inspection,no matter how big order.
• We  have been awarded the ISO9001:2013 International quality  system certification.


Producing process

Executions:

DIN 9861 with conical head 60°
Form D-DA-C-CA in steel WS - HWS - HSS
ISO 8020 with cylindrical head and cylindrical or stepped shaft
ISO 8020 with ejector pins cylindrical and stepped shaft in HWS and HSS steel.

Several possibilities of surface coatings:

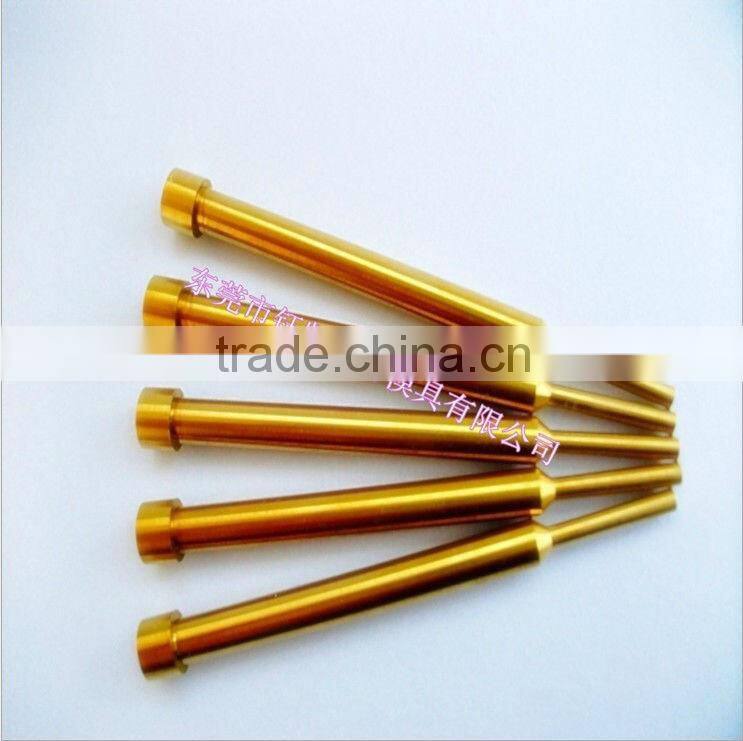

TIN: gold
TiCN: grey
superlattice: light grey
tenifer: black.
