Help CenterStainless Steel Smooth Ball Spring Plungers GN614-6-NI
Related Products
-
High Precision Ball Plunger/Spring Plunger/Ball Point Stainless Steel Set ScrewUS$ 0.2 - 0.8MOQ: 1000 Pieces -
Index Plunger Steel With Locking Nut M10 to M16US$ 3 - 6.78MOQ: 100 Pieces
-
Factory for Ball Spring PlungerUS$ 0.2 - 0.8MOQ: 1000 Pieces
-
Greece Hot Sale GN617.1 Indexing Plunger PinUS$ 1.2 - 2MOQ: 500 Pieces
-
GN617.1 Indexing Plungers With Rest Position Stainless SteelUS$ 0.5 - 2MOQ: 100 Pieces
Spring Plunger, Ball Plunger, Ball Spring Plunger, Spring Ball Plunger, Ball Plunger Set Screw, Non-threaded Spring Plunger, threaded Spring plunger, press fit spring plunger
GN614 Smooth ball spring plungers /GN614 Ball Plungers /Smooth Ball Spring Plungers GN614-6-NI / Stainless steel Smooth Ball Spring Plungers GN614NI / Stainless steel Smooth Ball Spring Plungers GN614-6-NI
GN 614 Smooth ball spring plungers /GN 614 Ball Plungers /GN 614 Plastic Bal Plungers
point material
|
SCM435, SUS304, Nylon 66
|
Plunger head material
| S45C, SUS440, SUJ2, ceramics, resin, polyacetal, fast cutting of copper |
Metric
|
M4 * 0.4, M5 * 0.8, M6 * 1.0, M8 * 1.25, M10 * 1.5, M12 * 1.75, M16 * 2.0, M20 * 2.5 etc
|
| Inch |
6-32, 6-40, 8-32, 8-36, 10-32,1 / 4-20, 5/16-18, 3/8-16, 1/2-13, 5/8- 11, 3/4-10, 1-8 etc |
HARDNESS
| determined by material |
Packaging Detail
|
inner packing: packed by sponge with plastic bag outpacking: cartons or upon request
|
Delivery Detail
|
Determined by order quantity
|

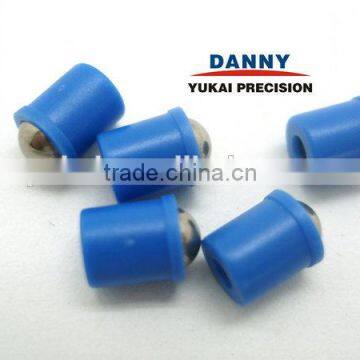

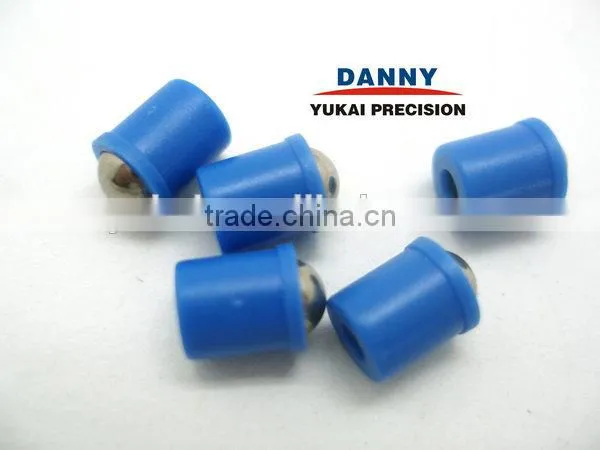

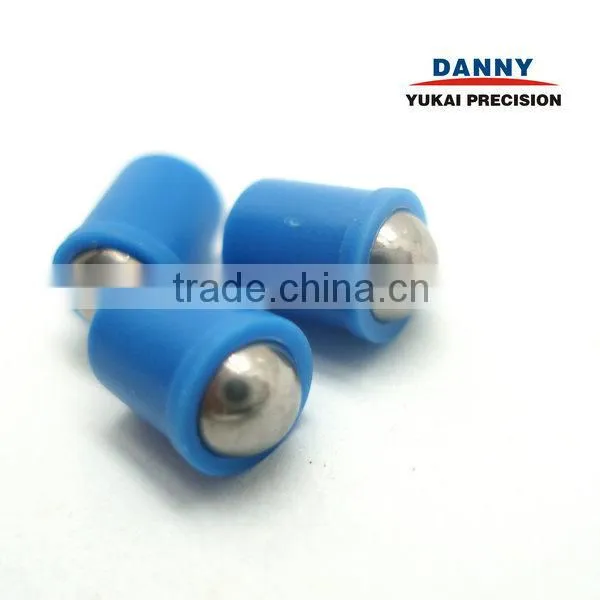

Body
Acetal resin based(POM) technopolymer.Resistant to solvents,oils,greases and other chemical agents.
Ball and spring
-Execution KU:hardeded stainless steel ball,stainless steel spring.
-Execution KD: technopolymer ball,stainless steel spring.
Working temperature
Form -30 to +50 celsius
How to use(Application)
Positive Control of Spring Pressure
Accurate spring alignment is maintained by using a stainless rivet with a long shank on larger sizes of our Ball Plungers. This precisely positions the spring for more accurate ball travel and provides positive control of spring pressure. Conventional floating discs are easily misaligned, while the rotation of the inner ball on dual-ball plungers results in less wearability on both the spring and the ball.
Longer Spring Life
By minimizing the lining pin head thickness, ouris able to use the longest possible springs. This, of course, means less fatigue and longer spring life.
Uniform Ball Projection
The distance by which the ball projects from the body of the plunger must be uniform from plunger to plunger. This uniformity is maintained by precisely controlling the crimping pressure applied to the neck of the plunger. Accurate machine controls plus rigid inspection procedures keep variances in ball projection to within ±.005".
Ball Spring Plungers
1)Ball plungers, have "-"type ,"+“type and hexagon type to choose
2)Standard: Hasco, Misumi, JIS, DME,DIN
3)High quality, Suitable price & Quick delivery time
4)Custom-made, standard & non-standard
Different kind of Ball Spring Plungers
Package of Ball Plunger
Packed in cartons or according to customer's special package requirement:
1)Double layers plastic bag package
2)Sponge
3)Thick cartons box
Delivery of Ball Plunger
1)Express: 3-7days after order place & payment settled.
2)Freight by sea: 15-30 days or shorter after order place & payment settled.
Feedback from foreign customers
Contact Information:
My dear friend,your inquiry is warmly welcome, Please do not hesitate to contact me.
