china factory high precision ball lock pins,stainless steel ball lock pins
Dongguan Yukai Precision Mold Co., Ltd is a branch company of Yukai Precision Ind. (HK) Co., Limited, which is very professional in research, development, manufacturing and service of precision fasteners. After several years' strugglement, Yukai has become an OEM factory of many craft brothers all over the world. We have ability to manufactre all kinds of precision standard and non-standard fasteners.
Welcome consultation and trial order ! We will give you our best service and price!

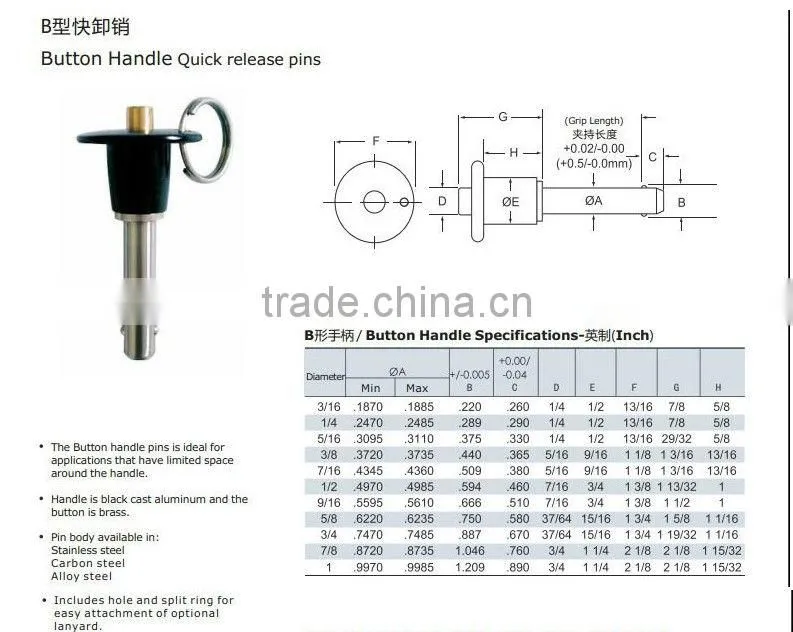

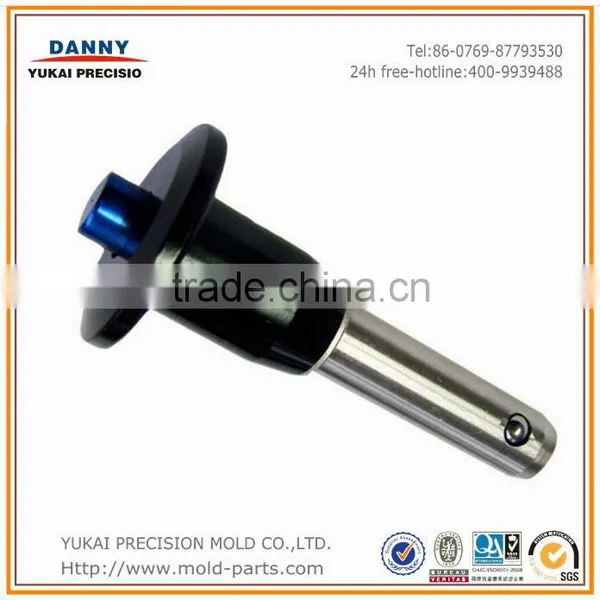

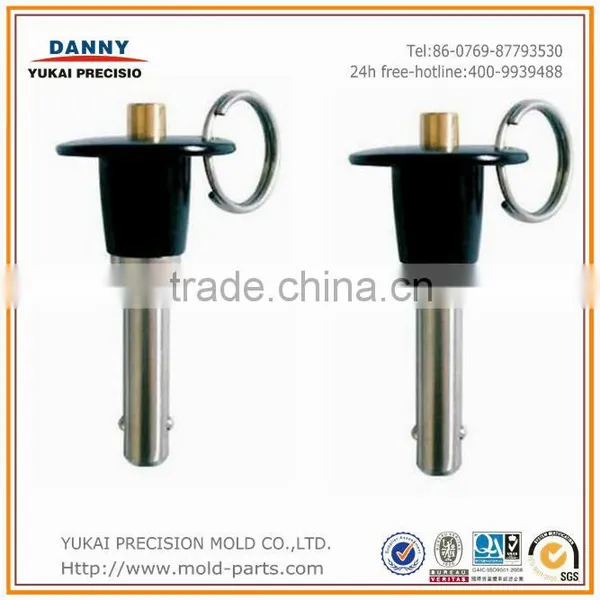

Quick release ball lock pin
Material:
Body SUS304 (Stainless Steel)
Spindle SUS304 (Stainless Steel)
Button HPb59-1(Brass)
Spring SUS304 (Stainless Steel)
Handle ADC10.1(Casting Aluminium)
Collar SUS304 (Stainless Steel)
Attaching Ring SUS304 (Stainless Steel)
Balls SUS440C (Stainless Steel)

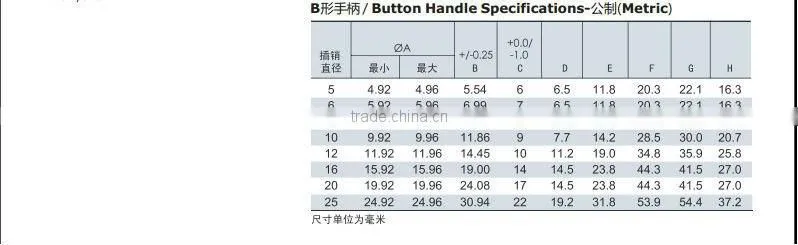

Spec: φ6mm × girp length: 60mm
Quick release pin,ball lock pin,detent pin,self lock pin,positive lock pin is used for all kinds of quick dismantling & fitting while needing to repeat positioning accuracy.
Features:
1. It can be Auto-defense and make the ball of the pin head be retractable by pressing the button of the handle, at this time you can let the quick release pin be passed through the pin hole quickly ;
2. When you release the button, the ball will pop-up , quick release pin will can't be pull-out;
3. High precision, The tolerance of diameter and grip length are very strict;
4. The coverage of application is wide, according to the environment you can choose to use high-strength alloy steel and stainless steel material;

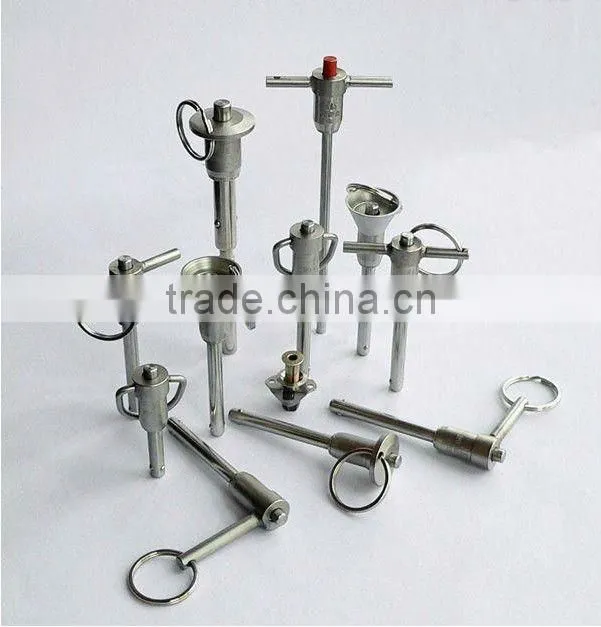

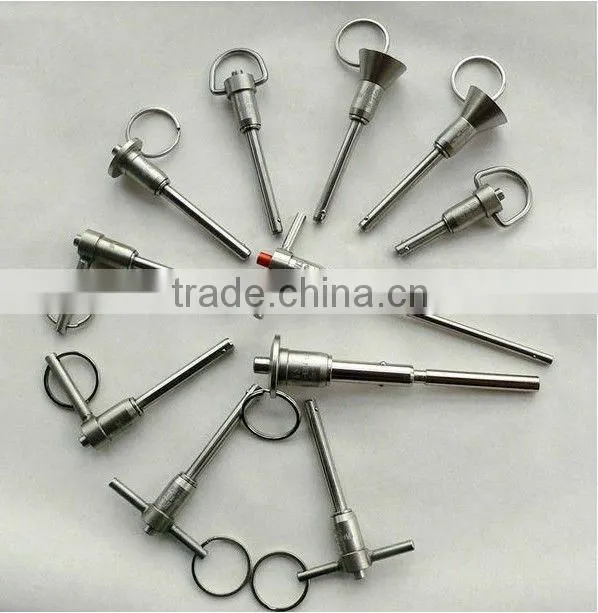

5. According to the space conditions of handle you can choose L-handle, T-handle, Button handle, Marine handle or Ring-handle and so on.
Our quick release pin,ball lock pin,detent pin,self lock pin,positive lock pin can be provided various forms of handle, and all kinds of specifications of metric and inch . The leadtime is very short. We always keep a large stock of, and also we have a technology department, the ministry of research design, a fully furnished equipment. we are standby to provide quality services to our clients.
