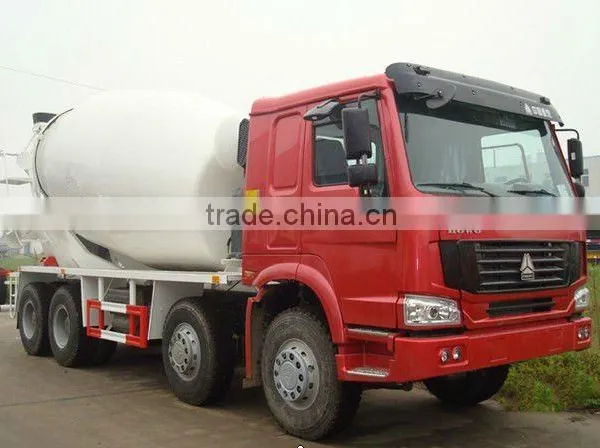

Lufeng 12cmb Concrete Mixer Truck

Name: Lufeng 12cmb Concrete Mixer Truck
Brand: Lufeng
SKU: 112284157
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Lufeng

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Lufeng

Model Number 12cbm Concrete Mixer Truck

Weight 15400kg

Dimension(L*W*H) 10350*2496*3880mm

Power(W) 250kw

Specifications

Lufeng 12cmb Concrete Mixer Truck
1.Brand: Lufeng
2.Mixing Volume: 12cbm
3.Chassis Brand: SINOTRUK HOWO

Lufeng 12cmb Concrete Mixer Truck

MAIN DESCRIPTION
Overall Dimensions	10350mm2496mm3880mm(LWH)
Tare Weight	15400kg	Payload	30000kg
Front Overhang	1500mm	Rear Overhang	2500mm
Wheelbase	1800mm +3200mm +1350mm
Track (F/R)	2022mm,2041mm/1830mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Chassis Model	ZZ1317N3261W, driving type 8x4
Cab	HW76, left hand drive, air-conditioner, one sleeper
Engine	SINOTRUK WD615.69, 336hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Gear Box	HW9, torque 1800Nm, No. of speeds: 9 forward & 1 reverse
Traversing Mechanism	German ZF8098, turning system pressure 18MPa
Clutch	GF420J, Single-plate dry clutch
Rear Axle	ST16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume	12cbm
Water Tank Volume	400L
Hydraulic Pump	Brand: TOP, Italy
Motor	Brand: TOP, Italy
Speed Reducer	Brand: TOP, Italy
Mixing Drum	Body steel plate thickness 6mm, Front end thickness 8mm.
