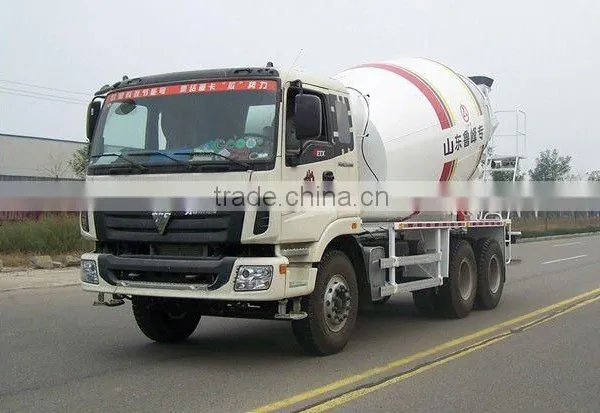

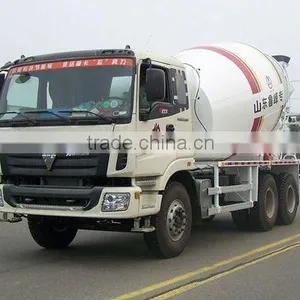

Lufeng 10cmb Concrete Mixer Truck

Name: Lufeng 10cmb Concrete Mixer Truck
Brand: Lufeng
SKU: 112284169
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Lufeng

Shandong Zhongkai Machinery & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Lufeng

Model Number 10cbm Concrete Mixer Truck

Weight 13800kg

Dimension(L*W*H) 9707*2495*3980mm

Power(W) 336HP

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Lufeng 10cmb Concrete Mixer Truck
1.Brand: Lufeng
2.Mixing Volume: 10cbm
3.Chassis Brand: Foton Auman

Lufeng 10cmb Concrete Mixer Truck

MAIN DESCRIPTION
Overall Dimensions	9707mm2495mm3980mm(LWH)
Tare Weight	13800kg	Payload	25000kg
Front Overhang	1532mm	Rear Overhang	2850mm
Wheelbase	3975mm+1350mm
CHASSIS
Chassis Brand	FOTON AUMAN
Chassis Model	BJ5253GMFJB-S, driving type 6x4
Cab	AUMAN ETX, left hand drive, air-conditioner, one sleeper
Engine	WEICHAI POWER, 336hp, electrically controlled common rail diesel engine, Euro III emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Gear Box	RT11509C, No. of speeds: 9 forward & 1 reverse
Clutch	φ430, Single-plate dry clutch
Rear Axle	Tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume	10cbm
Water Tank Volume	400L
Hydraulic Pump	Brand: ARK, Italy
Motor	Brand: ARK, Italy
Speed Reducer	Brand: TOP, Italy
Mixing Drum	Body steel plate thickness 6mm, Front end thickness 8mm.
