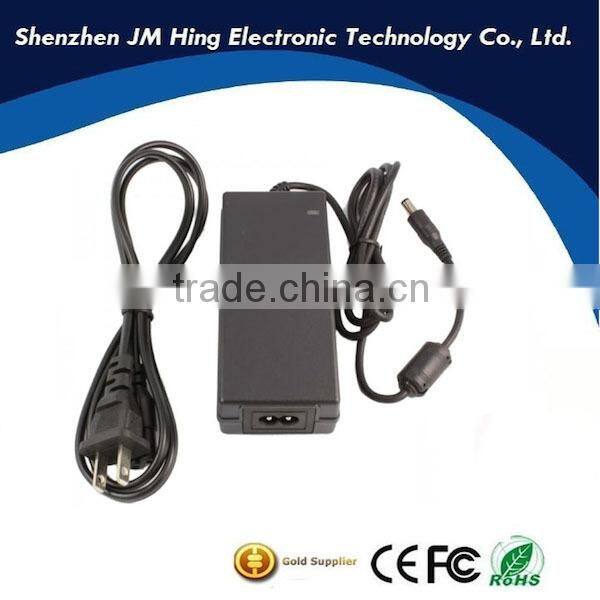

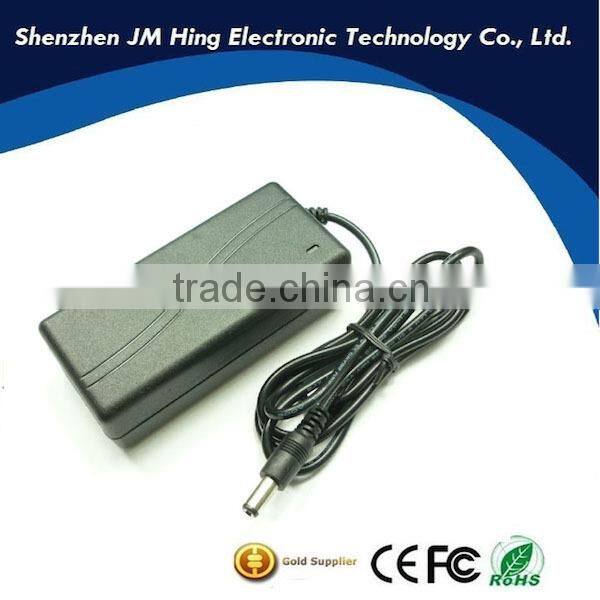

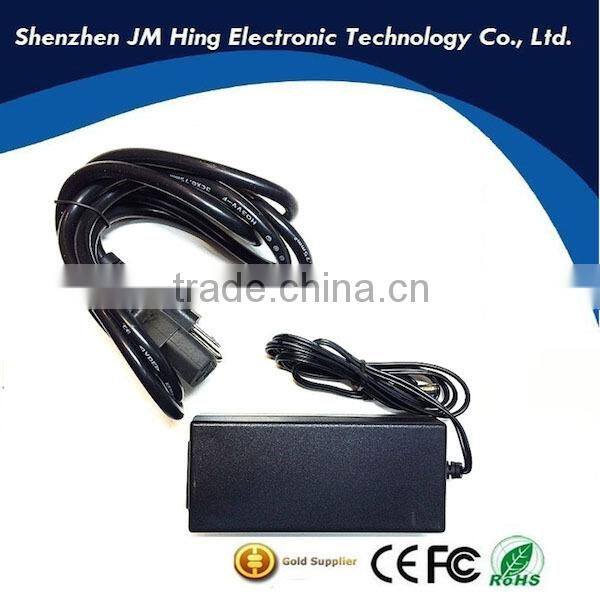

led power adapter for RGB led strip,
america plug european plug
Specifications
12V 5A Adapter kc
1.KC Standard
2.Input:100-240vac
3.Desktop C8 C14 AC connector
4.1year warranty
Detailed description
Model | Power Adapter/Switching Mode Power Supply |
Input | 100-240Vac 50/60Hz |
Input plug (power cords) | EU US UK AUS South Korea South African Plugs(Customized Plugs) |
Line Regulation on voltage | The line regulation is less than ±5% while measuring at rated load and +/-5% of input voltage changing. |
Load Regulation on voltage | The load regulation for output voltage is less than +/-5%, at measured output load from 10% to 100% rated load |
Max Power | 60Watts: 12V 5A |
DC jack | 5.5*2.1 5.5*2.5 3.5*1.35 3.5*1.0 4.0*1.7 2.5*0.7 .etc |
Normal Output cable | 1,2A: 2464 22AWG 1.2m; |
2,3A: 2464 20AWG 1.2m; | |
3,4A: 1185 18AWG 1.2m; | |
5,6A: 1185 16AWG 1.2m; | |
Safe Certificate | CE FCC GS UL PSE KC SAA CB |
Efficiency | >80% |
Output Connector | 5.5*2.1 5.5*2.5 3.5*1.35 4.0*1.7 2.5*0.7mm |
Power Consumption | ≤0.5W at Rated Voltage(adapter at no load) |
Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv |
High-Voltage test | Primary to secondary: 3 kV / 5mA 60S |
Leakage Current | 0.5mA(max) at input 240V AC |
Drop Test | 0.75m drop test, 6 times |
Burn-In Test | 100% load, 5hours |
MTBF | 50,000 hours@ 25°C |
Application | LED |
Warranty | 12 months |
Protections
1. High voltage protection: 120%min
2. High current protection: 120%min
3. Short-circuit protection: automatic recovery
4. Load regulation: ±5%
Environmental requirement
1. operating temperature: 0-40
2. storage temperature: -20-85
3. operating relative humidity:5/95%RH
Advantages
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
Questions:
1.Q:Are you a factory or trading company?
A:We are a factory and we are are verified by alibaba.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen we warmly welcome to visit us!
3.Q:Can you provide a sample to me?
A:We can provide you a sample for testing.
4.Q:How does your factory do regarding quality control?
A: All our products are strictly accordance with CE and RoHS standards.
100% burn-in testing for at least 2 hours .
5. Q: Why choose us?
A: We can provide you high quality products with competitive price,
Then help you satisfy your customers and keep your customers, to make you stronger in your market.
6. Q: What is your warranty?
A: 1 years warranty will be offered .
7. Q: Do you provide any other types of power supply ?
A: We offer many other capacities and voltages
