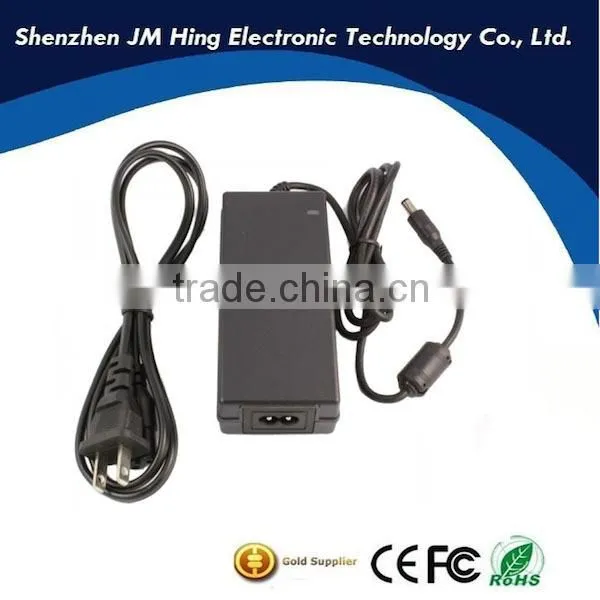

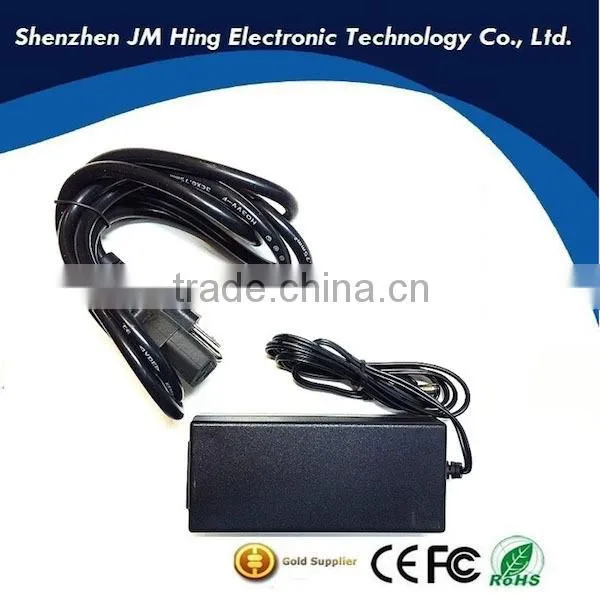

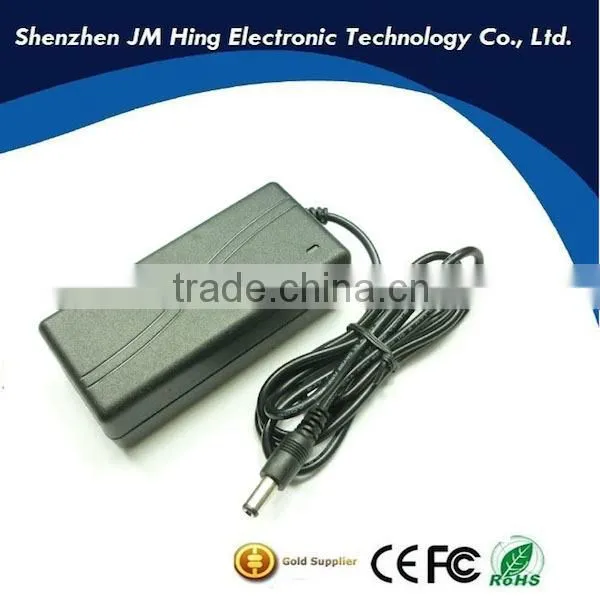

AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights

Shenzhen JMHING Electronic Technology Co., Ltd.
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights thumbnail-1
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights thumbnail-2
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights thumbnail-3
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights thumbnail-4
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights photo-1
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights photo-2
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights photo-3
AC 110V/220v to 12V DC LED Display Power Supply for LED Strip Lights photo-4
US$ 3.2 - 3.5 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JMHing
Model Number:
power supply
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JMHing
Model Number power supply
Output Type DC
Connection Other, Desktop, Desktop

             AC 110V/220v to 12V DC LED display power supply                                        for LED Strip Lights



Specifications

12V 5A Adapter kc
1.KC Standard
2.Input:100-240vac
3.Desktop C8 C14 AC connector
4.1year warranty

Detailed description



Model

Power Adapter/Switching Mode Power Supply

Input

100-240Vac 50/60Hz

Input plug (power cords)

EU  US  UK  AUS   South Korea   South African  Plugs(Customized Plugs)

Line Regulation on voltage

The line regulation is less than ±5% while measuring at rated load and +/-5% of input voltage changing.

Load Regulation on voltage

The load regulation for output voltage is less than +/-5%, at measured output load from 10% to 100% rated load

Max Power

60Watts: 12V  5A

DC jack

5.5*2.1 5.5*2.5 3.5*1.35  3.5*1.0  4.0*1.7  2.5*0.7 .etc

Normal Output cable

1,2A: 2464 22AWG 1.2m;

2,3A: 2464 20AWG 1.2m;

3,4A: 1185 18AWG 1.2m;

5,6A: 1185 16AWG 1.2m;

Safe Certificate

CE  FCC GS  UL  PSE  KC  SAA  CB

Efficiency

>80%

Output Connector

5.5*2.1  5.5*2.5  3.5*1.35  4.0*1.7  2.5*0.7mm

Power Consumption

≤0.5W at Rated Voltage(adapter at no load)

Ripple And Noise

Output voltage 1%, Ripple&Noise≤120mv

High-Voltage test

Primary to secondary: 3 kV / 5mA 60S

Leakage Current

0.5mA(max) at input 240V AC

Drop Test

0.75m drop test, 6 times

Burn-In Test

100% load, 5hours

MTBF

50,000 hours@ 25°C

Application

LED

Warranty

12 months









Protections



1.    High voltage protection: 120%min

2.    High current protection: 120%min

3.  Short-circuit protection: automatic recovery ­

4.  Load regulation: ±5%



Environmental requirement



 1.    operating temperature: 0-40

 2.    storage temperature: -20-85

 3.    operating relative humidity:5/95%RH





Advantages



1.  AC input power suitable for the world

2.  Soft-start current can reduce the AC input impact efficiency

3.  With short-circuit and overload protection

4.  Compact size ,light weight

5.  100%full-load burning test



 AC 110V/220v to 12V DC LED display power supply for LED Strip LightsAC 110V/220v to 12V DC LED display power supply for LED Strip LightsAC 110V/220v to 12V DC LED display power supply for LED Strip LightsAC 110V/220v to 12V DC LED display power supply for LED Strip Lights







 Questions:

1.Q:Are you a factory or trading company?

A:We are a factory and we are are verified by alibaba.



2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen we warmly welcome to visit us!



3.Q:Can you provide a sample to me?
A:We can provide you a sample for testing.



4.Q:How does your factory do regarding quality control?

 A: All our products are strictly accordance with CE and RoHS standards.

100% burn-in testing for at least 2 hours .



 5. Q: Why choose us?

    A: We can provide you high quality products with competitive price,

    Then help you satisfy your customers and keep your customers, to make you stronger in your market.



6. Q: What is your warranty?

    A: 1 years warranty will be offered .



7. Q: Do you provide any other types of power supply ?

    A: We offer many other capacities and voltages
