Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > PV Solar Hybrid Energy Storage Sysyem Li-ion

PV Solar Hybrid Energy Storage Sysyem Li-ion

Name: PV Solar Hybrid Energy Storage Sysyem Li-ion
Brand: JMHing Power
SKU: 112280511
Availability: InStock

Shenzhen JMHING Electronic Technology Co., Ltd.

PV Solar Hybrid Energy Storage Sysyem Li-ion thumbnail-1

PV Solar Hybrid Energy Storage Sysyem Li-ion thumbnail-2

PV Solar Hybrid Energy Storage Sysyem Li-ion thumbnail-3

PV Solar Hybrid Energy Storage Sysyem Li-ion photo-1

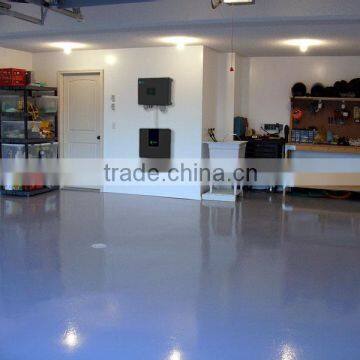

PV Solar Hybrid Energy Storage Sysyem Li-ion photo-2

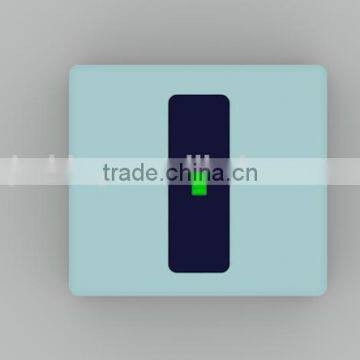

PV Solar Hybrid Energy Storage Sysyem Li-ion photo-3

US$ 3800.00 - 3800.00 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

JMHing Power

Model Number:

JMH5.0PCS

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name JMHing Power

Model Number JMH5.0PCS

Specification Normal

Application Home

Output Voltage (V) 220

Load Power (W) 5400w

Solar Power (W) 5000w

Work Time (h) 24 Hours

Product Details

COMPLETE HYBRID ENERGY STORAGE SYSTEM

GRID INDEPENDANCE

24 HOURS of SUNSHINE*
*on the correct system you can run a house all day from sunshine

Product Introduction

JMHing Power Hybrid Energy Storage System

ALL IN ONE BOX

We believe simplicity is the key, one box, all connections. You don't need many products, your customers need a simple and effective solution to become GRID INDEPENDENT.

JMHing Power has produced a PCS (POWER CONTROL SYSTEM) in one box.

ISLAND MODE OF COURSE

PV to GRID OF COURSE

PV to BATTERY OF COURSE

PV to LOCAL LOADS OF COURSE

BATTERY to GRID OF COURSE
BATTERY to LOCAL LOADS OF COURSE
GRID to BATTERY OF COURSE
EV to BATTERY COMING SOON
EV to LOCAL LOADS COMING SOON

You do not even need to have solar panels to benefit from this product, for example:

You may live in an area where brownouts occur.
You may have high day rate electricity.
You may want to sell cheap evening power back to the grid at high rate.

This comes with PC access and wifi APP control.
We can do bespoke software if you need.

Product Parameters

3.6kW
DC Input (PV)	Max Power	kWp	5400W
	Max Voltage	VDC	600V
	MPPT/Rate Voltage	VDC	120V-550V
	Max Voltage per string	VDC	600V
	Min/Initial Input Voltage (per string)	V	100V
	Max Input Current (per string)	A	11A
	No of strings / no. of MPP Tracker		2
	PV Module Connectors		H4/MC4
AC Output	Rated Output (at 230v, 50Hz)	W	5000W
	Normainal Current (UK G83/2 setting)	A	22.8
	EU Efficiency: PV to Grid	%	96.50%
	Nominal Voltage	VAC	220V/230V240V, 180V-280V
	Nominal Voltage	hz	50Hz, 60Hz; ±5Hz
	Feed-In / Connection Phase		Single phase
Battery	Battery Type		Li-ion
	Maximum Charging/Discharging Power	W	2500W
		A	50A
	Power	kW	2500W
	Capacity	AH	100Ah
	Capacity	kWh	5kWh
	Efficiency (DC to AC)		90%
	Norminal DC Voltage	VDC	48V
	Depth of discharge (DOD)	%	Lead acid 50%
	Depth of discharge (DOD)	%	Li-ion 80%
	Capacity DOD *based on 5kWh battery	kWh	4kWh
Mechanical	Dimensions	mm	Battery 710/610/120mm PCS 500/610/165mm Customised dimensions are available.



	Net weight	kg	98.5kg
	Weight Inverter	kg	24kg
	Weight Battery	kg	74.5kg
Environmental	Operating Temperature	℃	‘-20 to 55℃
	Storage Temperature	℃	‘-30 to 60℃
	Humidity	%	95%
	IP Grade		IP65
Certifications & approval	CE,IEC 62109-1&2, VDE 0126-1-1,G83/2, AS4777&AS/NZS 3100
Warranty	Product Warranty Battery	Years	10
	Performance Warranty Battery < 25℃	Years	10
	Performance Warranty Battery < 25℃	Cycles	＞4000
	Product Warranty Inverter	Years	5
Monitoing (device/ remote)	Monitoring (device/ remote)	Local display, Web based, APP
Monitoing (device/ remote)	Software Update	Manual USB or remote
Malfunction Diagnosis		Yes

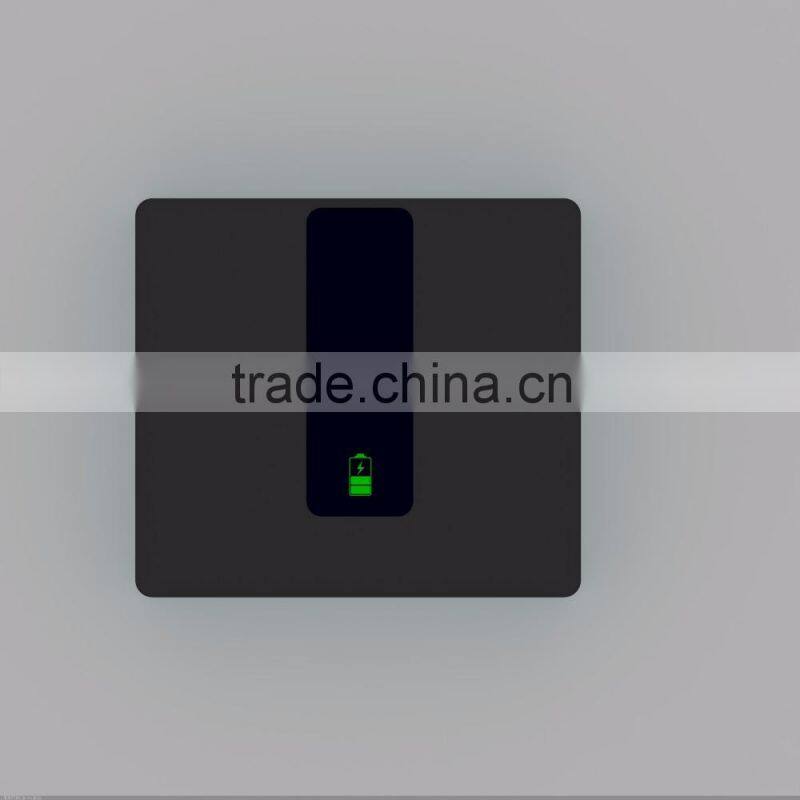

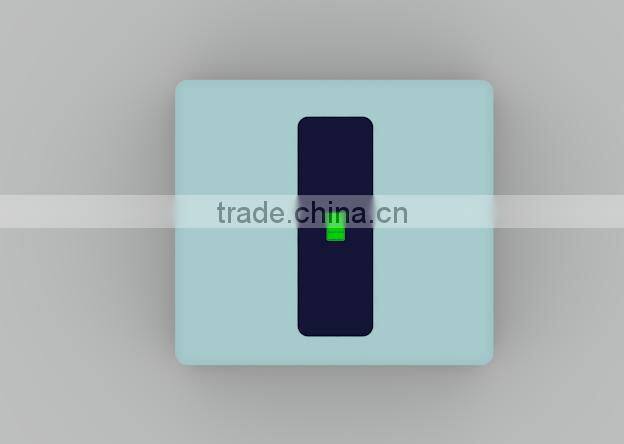

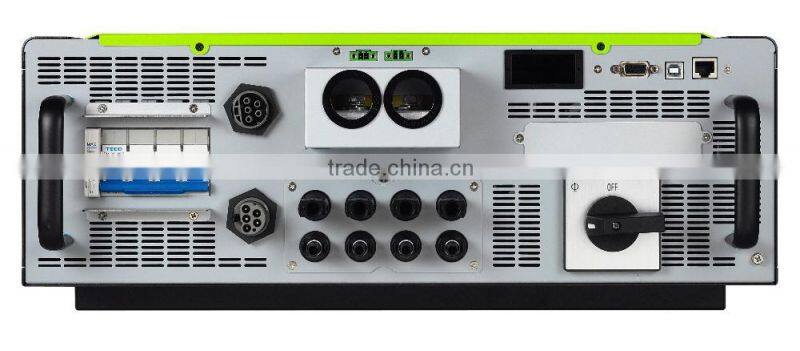

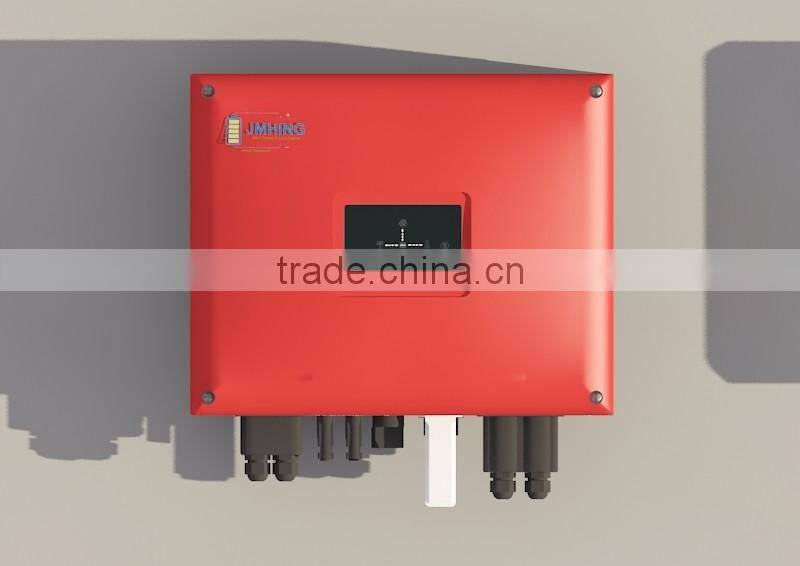

Product Pictures

Why Choose Us

OEM

If you need bespoke OEM for this we have a team of dedicated software and hardware engineers. We also employ European management to ensure quality is met.
