Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > 415VAC 400kW Manual Control Resistive Dummy Load Bank for Generator Testing

415VAC 400kW Manual Control Resistive Dummy Load Bank for Generator Testing

Name: 415VAC 400kW Manual Control Resistive Dummy Load Bank for Generator Testing
Brand: JMHing
SKU: 112280429
Availability: InStock

Shenzhen JMHING Electronic Technology Co., Ltd.

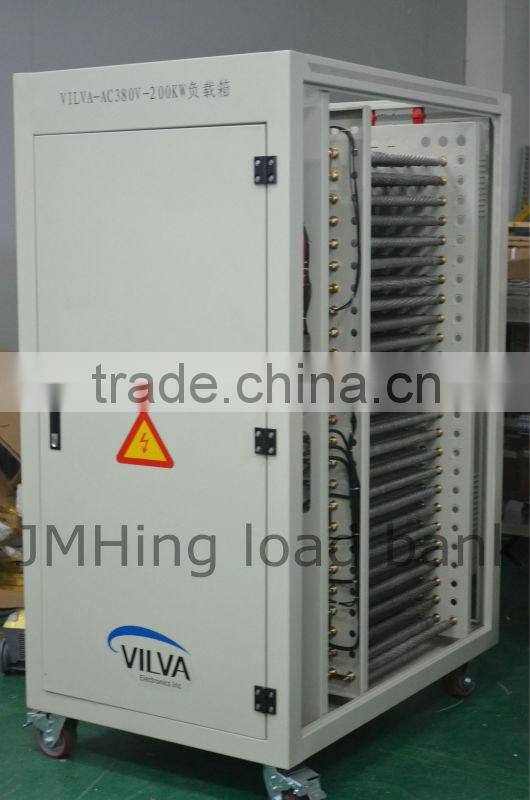

415VAC 400kW Manual Control Resistive Dummy Load Bank for Generator Testing thumbnail-1

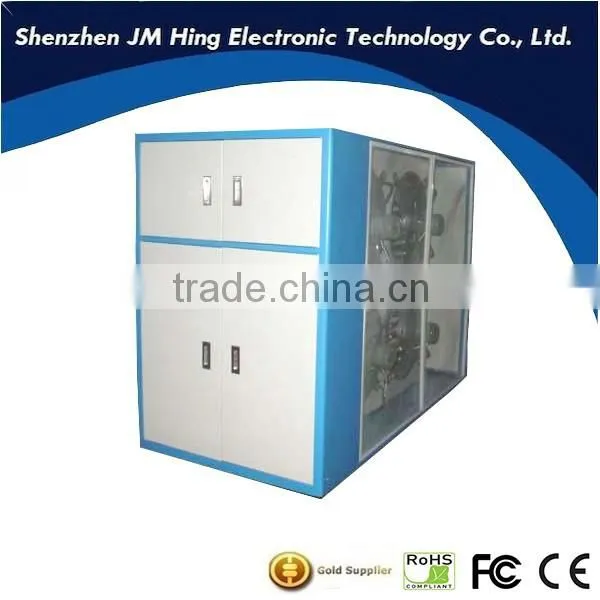

415VAC 400kW Manual Control Resistive Dummy Load Bank for Generator Testing photo-1

US$ 5,980 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

JMHing

Model Number:

AC415V-100kW-R

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name JMHing

Model Number AC415V-100kW-R

AC LOAD BANKS

Purely resistive load bank is the most common type of load bank, and it proves equivalent loading of both generator and prime mover. That is, for each kilowatt of load applied to the generator by the load bank, an equal amount of electrical energy converts to heat by power resistors, in a general way, this heat must be dissipated from the load bank by air forced means or other convection.

The JMHing’s resistors are made by high quality finned tubular heating elements, they are of the type where the surface area is enlarged by a strip in order to heat gases. At high power the surface temperature is small and the heating element is short. Meanwhile, Load elements are cooled usually via Fan Forced Air, blower power is typically provided by an outside source. Selected load banks are available with blower power derived from the power source under test.

JMHing’s AC resistive load banks can be further divided into these categories:

AC Small Portable: A resistive load bank easily carried or pushed on strong robust swivel wheels for testing and maintaining AC power equipment such as UPS systems and generators up to 150 kW.
AC Large Portable: A resistive load bank on strong robust swivel wheels for testing and maintaining larger AC power equipment such as UPS systems and generators up to 1000 kW.
AC Stationary: A resistive load bank for testing and maintaining AC power equipment such as UPS systems and generators at one location up to 4600 kW. Many models can be used as modular building blocks for applications requiring capacity of tens or hundreds of megawatts. Also the load banks can be loaded on a trailer for more flexibility.
AC Medium/High Voltage: A resistive load bank for testing and maintaining larger generators and other AC power equipment up to 7000 kW and up to 15,000 volts.

AC resistive load banks
Models	230VAC-6kW-R	480VAC-30kW-R	480VAC-60kW-R	480VAC-100kW-R	480VAC-200kW-R	480VAC-400kW-R
Capacity	1-6kW	10-30kW	30-60kW	60-100kW	100-200kW	200-400kW
Capacity	or units can be designated at any capacity made to order
Rated voltage	230VAC	480VAC
Rated voltage	or units can be designated at any voltage made to order
Rated current	1 phase: 26A	1 phase: 36A 3 phases: 108A	1 phase: 72A 3 phases: 216A	1 phase: 120A 3 phases: 361A	1 phase: 240A 3 phases: 721A	1 phase: 481A 3 phases: 1443A
Frequency	50Hz/60Hz
PF	PF=1.0
Minimum load step	100W	100W	100W	1kW	1kW	1kW
Minimum load step	or units can be designated at any minimum load step
Display	Voltage, Current, Frequency, Power and PF displayed by digital meter
Protection	Overheating alarm, Short circuit protection, Overheating protection, Emergency stop button, All protection can be configured optionally
Control mode	Manual control by MCBs or button switches or toggle switches
Air flow	horizontal	vertical	horizontal	horizontal	horizontal	horizontal
Air flow	Force-air cooling
Dimensions	496021(cm)	5067116(cm)	5197110(cm)	8197155(cm)	80120161(cm)	80180150(cm)
Options	Handle panel or PC remote control selectable
Ambientparameters	Maintains maximum capacity in ambient conditions up to 55° C, and 95% humidity

400kW 415VAC manual control resistive dummy load bank specifications

Product name	415VAC-400kW-R Load Bank
Model number	415VAC-400kW-R
Brief	415VAC-400kW-R load bank is designed as requested parameters. It can compose any power capacity that you want in 400kW based min load step 10kW at 415VAC, 3 phase, 50Hz working condition. PC remote control software and handheld control panel are included. After futher discussion, 400kW load bank can supply any load step solution with 400kW and any designated voltage to meet all your testing requirements.
Capacity	Maximum power 400kW resistive load supply at 415VAC
Design voltage	3 phase, 415VAC
Power range	50Hz
Control system	local manual control by switches fixed in the enclosure
Power factor	1
Load segment	Resistive loading at 415VAC A phase Resistive load: 2kW/5kW/10kW/10kW/20kW/20kW/20kW/50kW total 137kW B phase Resistive load: 2kW/5kW/10kW/10kW/20kW/20kW/20kW/50kW total 137kW C phase Resistive load: 2kW/5kW/10kW/10kW/20kW/20kW/20kW/50kW total 137kW or units can be designed for a three phase equilibrium procedure made to order
Minimum load step	2kW
Cooling	Force-air cooling by axial-flow fans
Protection	(1)Short circuit protection (2)Overheating alarm (3)Emergency stop button (4)Fuse protectors
Enclosures	Steel container enclosure
Insulation class	Class F
connectors	A, B, C, N
Dimensions	Height: 1800mm Width: 900mm Length: 1500mm
Ambient parameters	Maintains maximum capacity in ambient conditions up to 55° C, and 95% humidity
Transportation	Robust swivel wheels and housed in a sheet steel enclosure
The load banks will have all the necessary factory tests and site tests before delivery, e.g. 1kV insulation resistance test, 2.5 kV high-voltage dielectric strength test, temperature rise test at full load, functional tests,etc.
