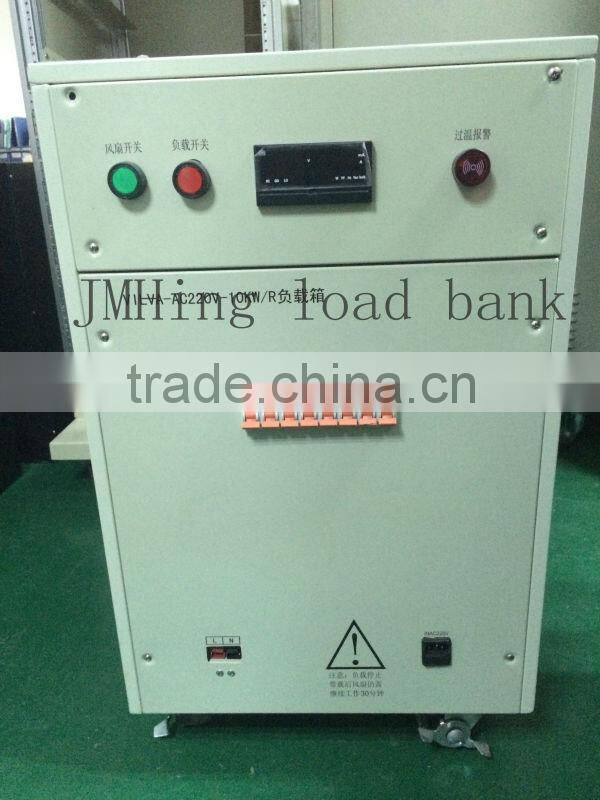

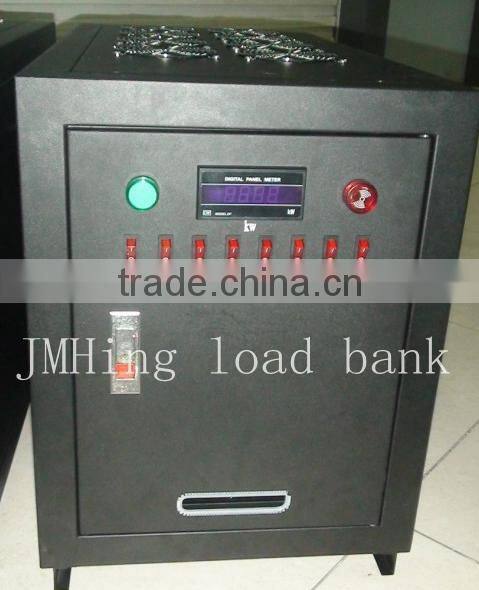

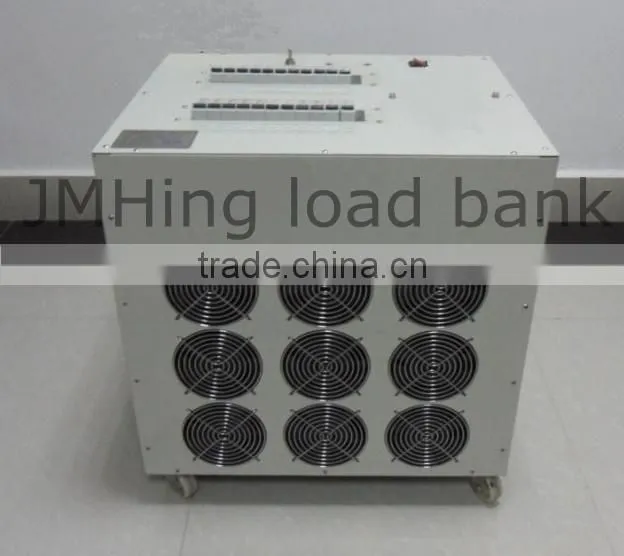

10kW Single Phase Variable Load Bank for Hot Sale

Name: 10kW Single Phase Variable Load Bank for Hot Sale
Brand: JMHing
SKU: 112280069
Availability: InStock

10kW Single Phase Variable Load Bank for Hot Sale thumbnail-1

10kW Single Phase Variable Load Bank for Hot Sale photo-1

US$ 1,500 - 4,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

JMHing

Model Number:

230VAC-10kW-R

Contact Supplier Request Quote Chat Now

Shenzhen JMHING Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name JMHing

Model Number 230VAC-10kW-R

Power Other, Electronic, 10kW

Usage Auto Testing Machine

AC LOAD BANKS

Purely resistive load bank is the most common type of load bank, and it proves equivalent loading of both generator and prime mover. That is, for each kilowatt of load applied to the generator by the load bank, an equal amount of electrical energy converts to heat by power resistors, in a general way, this heat must be dissipated from the load bank by air forced means or other convection.

The JMHing’s resistors are made by high quality finned tubular heating elements, they are of the type where the surface area is enlarged by a strip in order to heat gases. At high power the surface temperature is small and the heating element is short. Meanwhile, Load elements are cooled usually via Fan Forced Air, blower power is typically provided by an outside source. Selected load banks are available with blower power derived from the power source under test.

JMHing’s AC resistive load banks can be further divided into these categories:

AC Small Portable: A resistive load bank easily carried or pushed on strong robust swivel wheels for testing and maintaining AC power equipment such as UPS systems and generators up to 150 kW.
AC Large Portable: A resistive load bank on strong robust swivel wheels for testing and maintaining larger AC power equipment such as UPS systems and generators up to 1000 kW.
AC Stationary: A resistive load bank for testing and maintaining AC power equipment such as UPS systems and generators at one location up to 4600 kW. Many models can be used as modular building blocks for applications requiring capacity of tens or hundreds of megawatts. Also the load banks can be loaded on a trailer for more flexibility.
AC Medium/High Voltage: A resistive load bank for testing and maintaining larger generators and other AC power equipment up to 7000 kW and up to 15,000 volts.

AC resistive load banks
Models	230VAC-6kW-R	480VAC-30kW-R	480VAC-60kW-R	480VAC-100kW-R	480VAC-200kW-R	480VAC-400kW-R
Capacity	1-6kW	10-30kW	30-60kW	60-100kW	100-200kW	200-400kW
Capacity	or units can be designated at any capacity made to order
Rated voltage	230VAC	480VAC
Rated voltage	or units can be designated at any voltage made to order
Rated current	1 phase: 26A	1 phase: 36A 3 phases: 108A	1 phase: 72A 3 phases: 216A	1 phase: 120A 3 phases: 361A	1 phase: 240A 3 phases: 721A	1 phase: 481A 3 phases: 1443A
Frequency	50Hz/60Hz
PF	PF=1.0
Minimum load step	100W	100W	100W	1kW	1kW	1kW
Minimum load step	or units can be designated at any minimum load step
Display	Voltage, Current, Frequency, Power and PF displayed by digital meter
Protection	Overheating alarm, Short circuit protection, Overheating protection, Emergency stop button, All protection can be configured optionally
Control mode	Manual control by MCBs or button switches or toggle switches
Air flow	horizontal	vertical	horizontal	horizontal	horizontal	horizontal
Air flow	Force-air cooling
Dimensions	496021(cm)	5067116(cm)	5197110(cm)	8197155(cm)	80120161(cm)	80180150(cm)
Options	Handle panel or PC remote control selectable
Ambientparameters	Maintains maximum capacity in ambient conditions up to 55° C, and 95% humidity

Single phase 230VAC 10kW Resistive Load Bank specifications

Product name	230VAC-10kW-R Load Bank
Model number	230VAC-10kW-R
Capacity	Maximum power 10kW resistive load for single phase supply
Design voltage	Single phase, 230VAC
Power range	50Hz/60Hz
Control system	local manual controlled by switches fixed in the enclosure front
Power factor	1
Load segment	Resistive loading single phase Resistive load: 100W/200W/200W/500W/1kW/2kW/2kW/5kW total 11KW Or units can be designed at any loading procedure made to order
Display	Digital meter(current, voltage, power, frequency, PF)
Minimum load steps	100W
Cooling	Force-air cooling by axial-flow fans Control power 220VAC or 110VAC, single phase
Air flow	Horizontal
Load elements	Sheathed alloy resistors and external heatsink
Protection	(1)Short circuit protection (2)Overheating alarm (3)Emergency stop button
Enclosures	Steel bodied enclosure
connectors	A, N
Dimensions	Height: 80cm Width: 50cm Length: 67cm
Ambient parameters	Maintains maximum capacity in ambient conditions up to 55° C, and 95% humidity
Transportation	Robust swivel wheels and housed in a sheet steel enclosure
The load banks will be tested for all necessary factory tests and site tests before delivery, e.g. 1kV insulation resistance test, 2.5 kV high-voltage dielectric strength test, temperature rise test at full load, functional tests, etc.
