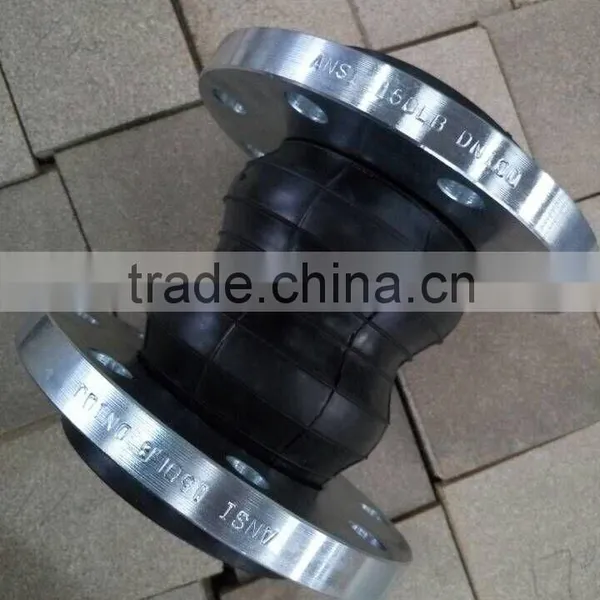

Help CenterDouble Sphere Flanged Rubber Coupling
Related Products
-
Ductile Iron America Type SleeveUS$ 5 - 100MOQ: 1 Piece -
America Type Flange AdaptorUS$ 5 - 100MOQ: 1 Piece
-
Malleable/Ductile Iron Junior ClampUS$ 0.1 - 10MOQ: 10 Pieces
-
Malleable/Ductile Iron Junior Clamp and CouplingsUS$ 0.1 - 10MOQ: 10 Pieces
-
Malleable/Ductile Iron Compression CouplingsUS$ 0.1 - 10MOQ: 10 Pieces
1), Product Information
Vortex manufactures many different types of ductile iron couplings for many kind pipes(PVC/UPVC, AC, Steel etc)
We supply coupling for all over the world and product surface shall be smooth and free from sand holes, blow holes, distortion or any other defects.
2), Material
Body:
Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536
Gland:
Steel/Ductile iron grade 500-7/ 450-10 in accordance with ISO 1083 or 70-50-05/65-45-12 with ASTM A536
Gasket:
Rubber E. P. D. M. /SBR/NR in accordance with EN 681.1
T-BOLTS AND NUTS:
Carbon steel grade 8.8/6.8/4.8 with dacromet coating/galvanization
3), Process
Resin Sand
Molding Boards
Green Sand with hand molding
4), Inscription Style
As per customers' requests
Standard Inscription(EN545; PN--; DN_OD--)
5), Packing
Wood crates
Wood pallets
As per customers' requirements
6), Inspection
Foundry in-house
Third Party inspection available upon request
More information is available upon receipt of your enquiry.
Model |
KXT-1 |
|
KXT-2 |
KXT-3 |
Working Pressure MPa(Kgf/cm2) |
1(10) |
|
1.6(16) |
2.5(25) |
Burst Pressure MPa(Kgf/cm2) |
2(20) |
|
3(30) |
4.5(45) |
Vacuum Degree KPa(mmHg) |
53.3(400) |
|
86.7(650) |
100(750) |
Suitable Temperature °C |
-15~115 (-30~250 for special materials) |
|||
Suitable Medium |
Air, Compressed Air, Fresh Water, Sea Water, Oil, Acid, Alkali etc. |
|||
