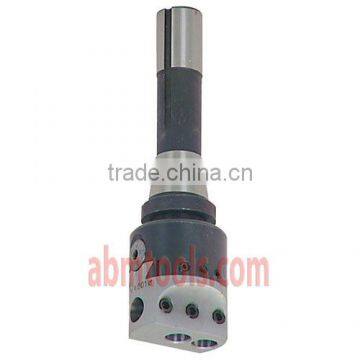

Precision Boring Heads
- 0 per Month
- New Delhi
- T/T Credit Card PayPal
- Wholesale NC Tool HSK-FMB NC Tool Handle HSK63A FMB22-100 High Speed Steel Holding Tool Handle
- Customized CNC Machining Center Indexable Face Milling Tool cutter head
- wholesale CNC milling cutter head for CNC machining center
- Customized Right angle R390 indexable shoulder face milling cutter head
- Factory direct sell other machine tools accessories lathe machine tools
- Factory TRS Round dowel face mill indexable face milling cutter head
Product Details
Place of Origin: | Delhi, India | Brand Name: | ABM | Model Number: | ABM-IMT-4800 |
Product Description
Specifications
Precision Boring Heads• Machined from High grade steel with tool blocks hardened and ground.
• Non-Reflecting Satin Chrome Body allows easy reading and adjustment.
• Threaded back for interchangeable Shanks.
• Ideal for Mill or Jig Bore Operations.
• Inch Features .0005” and Metric features 0.2 mm least
count (Boring dia. double of least count).
• Very versatile and useful in any machine shopfloor.
• The construction of the head is so designed that it is very useful
for making heavy roughing cuts as well as more accurate finishing cuts.
• Rigid designs and threaded interchangeable shanks for the boring
head make it useful for machines with different tapers.
• Available in Metric and Inch Sizes.
Item Code No. | With R-8 Shank item Code No. | Head | Thread | Overall | Max. | Centre Distance | Cross Vertical |
ABM-IMT-4800 | -- | 1-3/16” | 10 x 1.5 mm | 1-9/16” | 5/16” | 3/8” | 1/4” |
ABM-IMT-4801 | -- | 1-1/2” | 14 x 1 mm | 1-3/4” | 7/16” | 7/16” | 5/16” |
ABM-IMT-4802 | -- | 1-3/4” | 7/8” x 20 | 2” | 5/8” | 19/32” | 3/8” |
ABM-IMT-4803 | ABM-IMT-4808 | 2” | 7/8” x 20 | 2-13/32” | 5/8” | 5/8” | 1/2” |
ABM-IMT-4804 | ABM-IMT-4809 | 2” | 1-1/2” x 18 | 2-13/32” | 5/8” | 5/8” | 1/2” |
ABM-IMT-4805 | ABM-IMT-4810 | 3” | 1-1/2” x 18 | 3-1/8” | 1” | 15/16” | 3/4” |
ABM-IMT-4806 | ABM-IMT-4811 | 4” | 1-1/2” x 18 | 3-1/2” | 1-5/8” | 1-1/4” | 1” |
ABM-IMT-4807 | ABM-IMT-4812 | 50 mm | 7/8” x 20 | 62 mm | 16 mm | 15.5 mm | 12 mm |
