Product Details
| Place of Origin | Delhi, India | Brand Name | ABM | |
| Model Number | ABM-IMT-4310 |
Product Description
Specifications

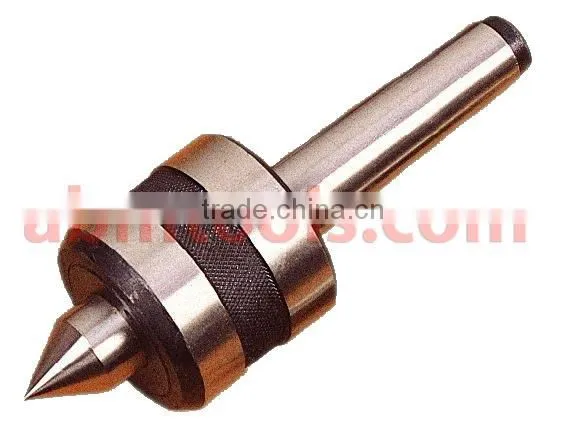

Live Centre / Revolving Centre(Dual Bearing) (Econo Live Centres)
• Double Bearing Mechanism.
• Two Anti Friction Bearings.
• Made of Hardened and Ground High Carbon Steel.
• Hardened Tip 55 to 62 HRC.
• Hardened Centre Shaft with 60 degree Point.
• Special Steel Housing.
• Single Row Deep groove ball bearing and Taper Roller bearing to absorb combined radial and thrust loads
Item Code No. | Morse Taper No. | Body Diameter | Point Diameter | Overall Length | |||
Inch | mm | Inch | mm | Inch | mm | ||
ABM-IMT-4310 | MT 1 | 1-5/16 | 34 | 11/16 | 18 | 4-3/4 | 120 |
ABM-IMT-4311 | MT 2 | 2 | 50 | 27/32 | 21 | 5-7/8 | 148 |
ABM-IMT-4312 | MT 3 | 2-5/16 | 60 | 15/16 | 24 | 7-1/4 | 185 |
ABM-IMT-4313 | MT 4 | 2-1/2 | 63 | 1-1/8 | 28 | 8-5/8 | 220 |
ABM-IMT-4314 | MT 5 | 3 | 75 | 1-1/2 | 36 | 10-1/4 | 260 |
ABM-IMT-4315 | MT 6 | 4 | 100 | 2-1/8 | 53 | 14 | 355 |
